End piece, trunking type WDK 20035 35 | 20 | 35 | Cream; RAL 9001
morepic-1 morepic-2

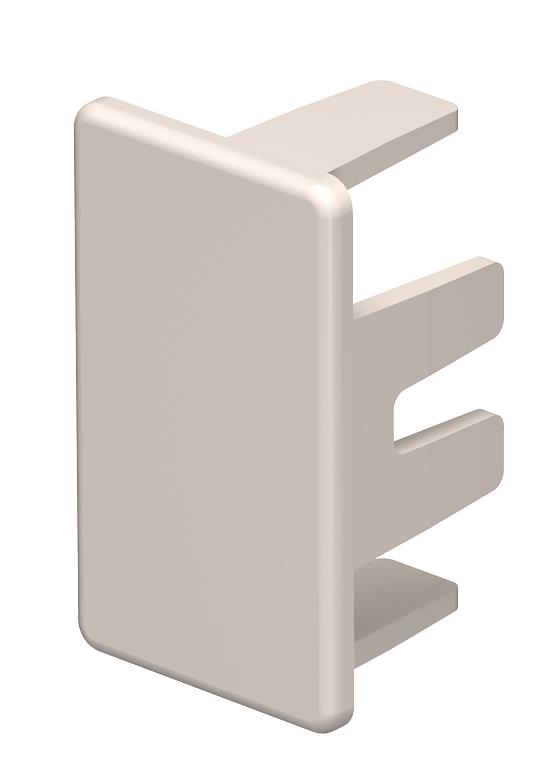

End piece, trunking type WDK 20035

Item no. 6162487 | EAN 4012196643219

6162487 / WDK HE20035CW
35 mm
20 mm
35 mm
Cream; RAL 9001
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 20x35mm

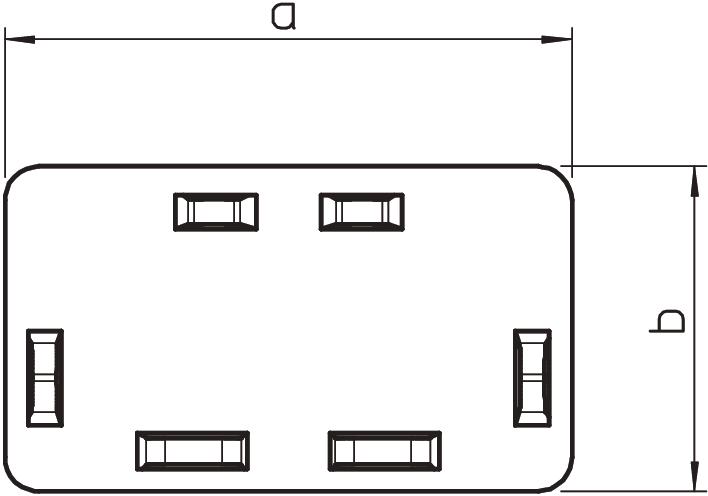

Dimension a 35 mm
Dimension b 20 mm
Dimension H 35 mm
Fastening type Lockable
Halogen-free no
Height 20 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 35 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE20035CW 35 mm 20 mm 35 mm Cream; RAL 9001 6162487
10 piece
