End piece, trunking type WDK 30030 30 | 30 | 30 | Cream; RAL 9001
morepic-1 morepic-2

End piece, trunking type WDK 30030

Item no. 6162576 | EAN 4012196584239

6162576 / WDK HE30030CW
30 mm
30 mm
30 mm
Cream; RAL 9001
Product description

Product description

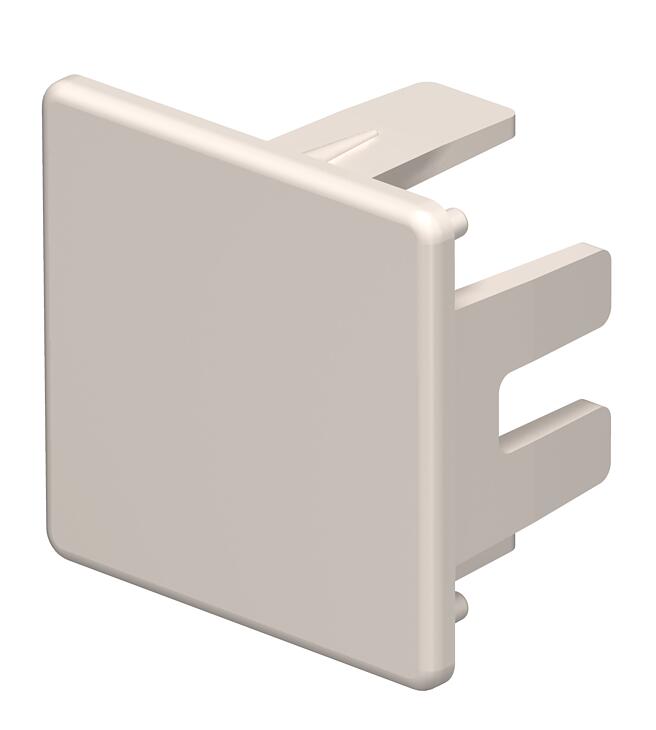

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 30x30mm

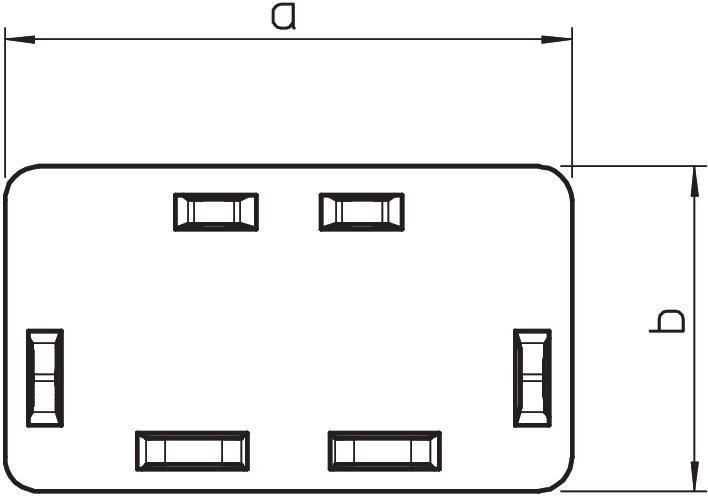

Dimension a 30 mm
Dimension b 30 mm
Dimension H 30 mm
Fastening type Lockable
Halogen-free no
Height 30 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 30 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE30030CW 30 mm 30 mm 30 mm Cream; RAL 9001 6162576
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HE30030CW / 6162576 , 0.14MB , pdf
