End piece, trunking type WDK 30045 45 | 30 | 45 | Cream; RAL 9001
morepic-1 morepic-2

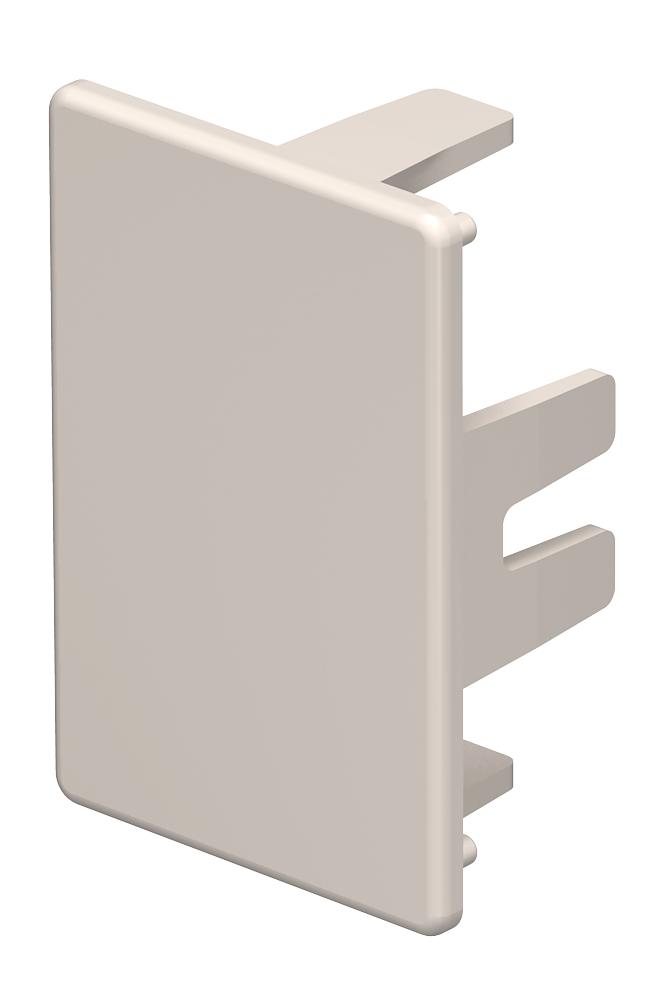

End piece, trunking type WDK 30045

Item no. 6162584 | EAN 4012196641239

6162584 / WDK HE30045CW
45 mm
30 mm
45 mm
Cream; RAL 9001
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 30x45mm

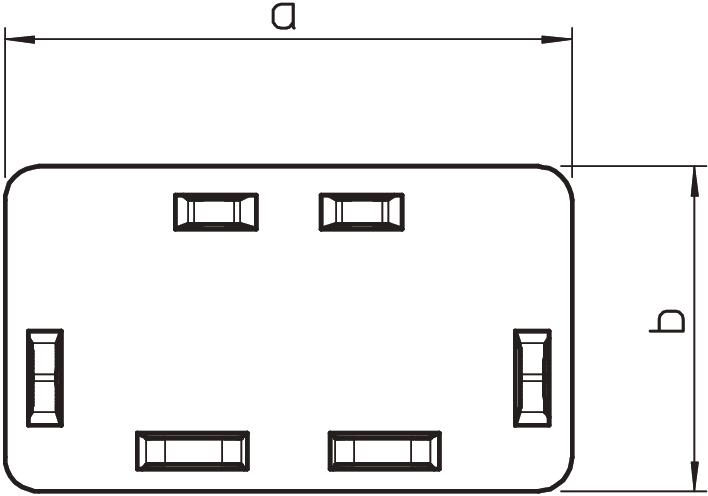

Dimension a 45 mm
Dimension b 30 mm
Dimension H 45 mm
Fastening type Lockable
Halogen-free no
Height 30 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 45 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE30045CW 45 mm 30 mm 45 mm Cream; RAL 9001 6162584
10 piece
