End piece, trunking type WDK 40090 90 | 40 | 90 | Cream; RAL 9001
morepic-1 morepic-2

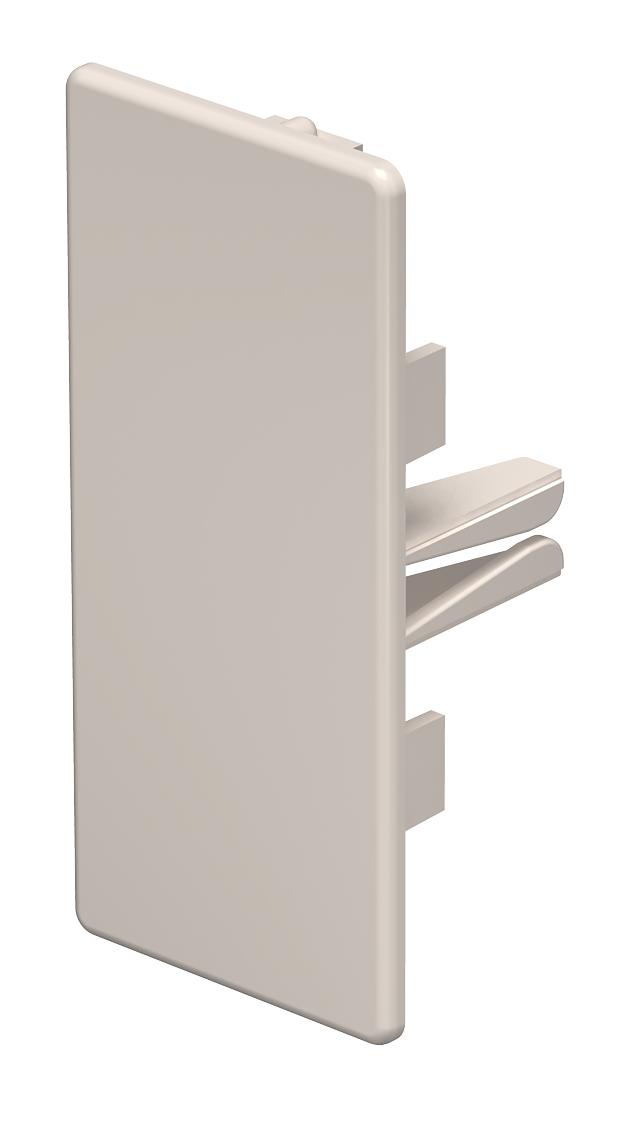

End piece, trunking type WDK 40090

Item no. 6162614 | EAN 4012196109579

6162614 / WDK HE40090CW
90 mm
40 mm
90 mm
Cream; RAL 9001
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 40x90mm
Dimension a 90 mm
Dimension b 40 mm
Dimension H 90 mm
Fastening type Lockable
Halogen-free no
Height 40 mm
Length 27,5 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 90 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE40090CW 90 mm 40 mm 90 mm Cream; RAL 9001 6162614
10 piece
