End piece, trunking type WDK 60090 90 | 60 | 90 | Cream; RAL 9001
morepic-1 morepic-2

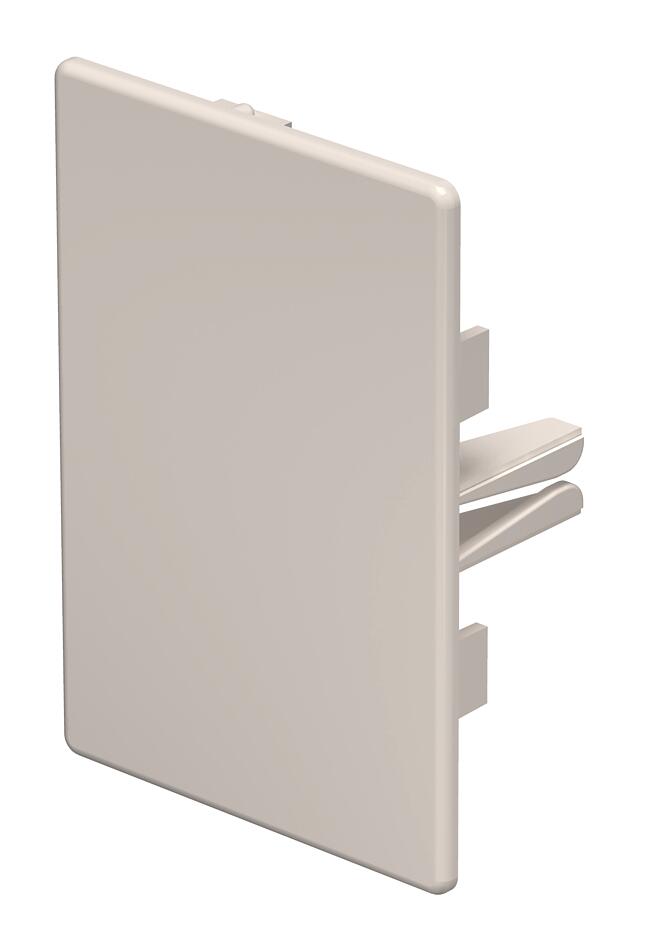

End piece, trunking type WDK 60090

Item no. 6162819 | EAN 4012196109937

90 mm
60 mm
90 mm
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 60x90mm
Dimension a 90 mm
Dimension b 60 mm
Dimension H 90 mm
Fastening type Lockable
Halogen-free no
Height 60 mm
Length 27,5 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 90 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE60090CW 90 mm 60 mm 90 mm Cream; RAL 9001 6162819
10 piece
WDK HE60090RW 90 mm 60 mm 90 mm Pure white; RAL 9010 6193293
10 piece
