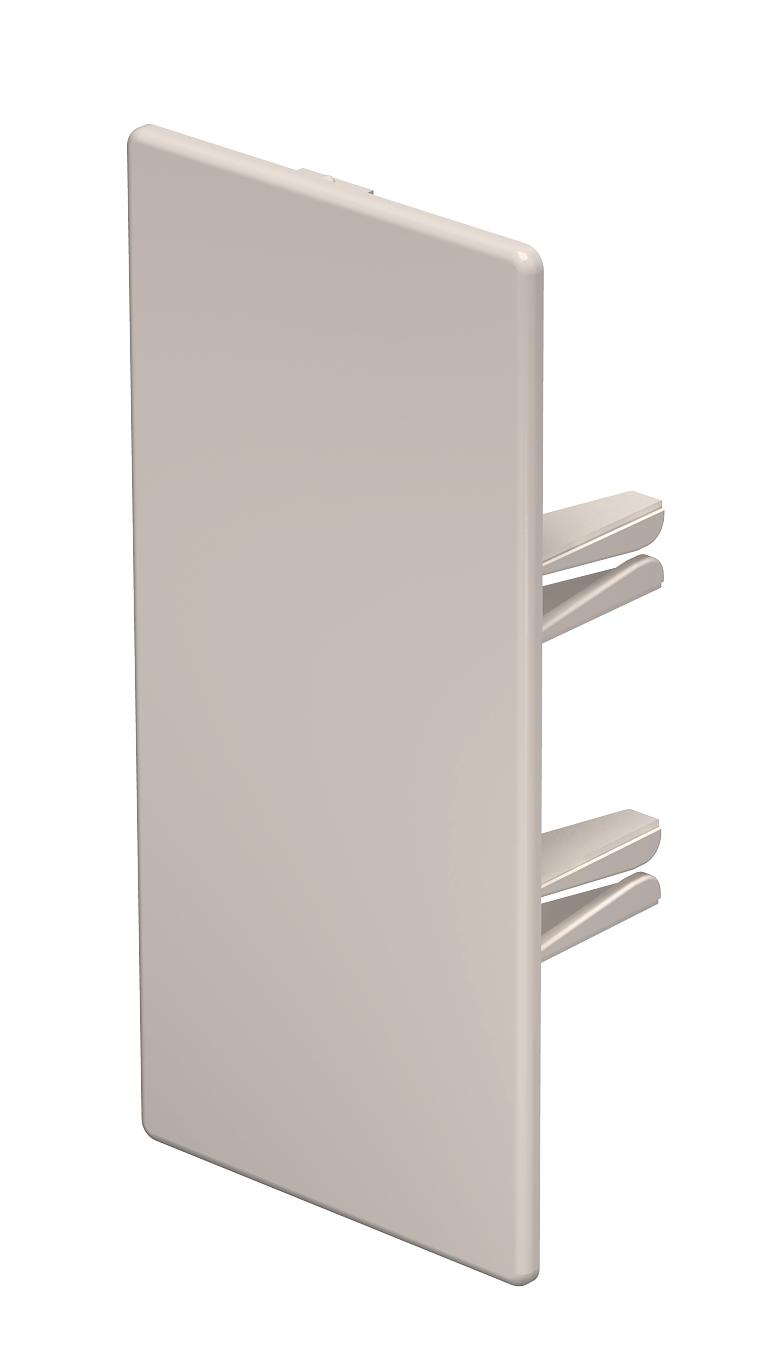

End piece, trunking type WDK 60130
Item no. 6162835 | EAN 4012196110056
- Product description
-
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Dimension 60x130mm Dimension a 130 mm Dimension b 61 mm Dimension H 130 mm Fastening type Lockable Halogen-free no Height 60 mm Length 27,5 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Width 130 mm - All types
