End piece, trunking type WDK 80210 150 | 210 | 210 | Cream; RAL 9001
morepic-1 morepic-2

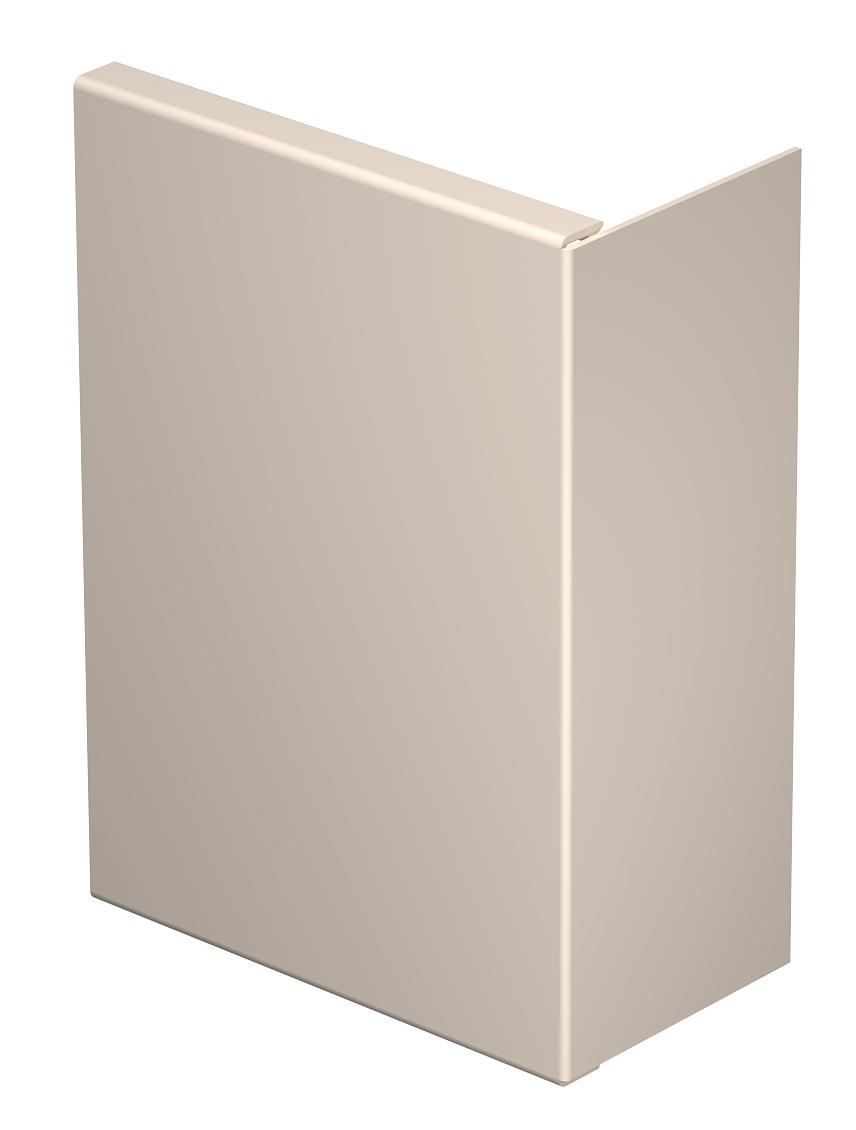

End piece, trunking type WDK 80210

Item no. 6163017 | EAN 4012196110292

6163017 / WDK HE80210CW
150 mm
210 mm
210 mm
Cream; RAL 9001
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 80x210mm

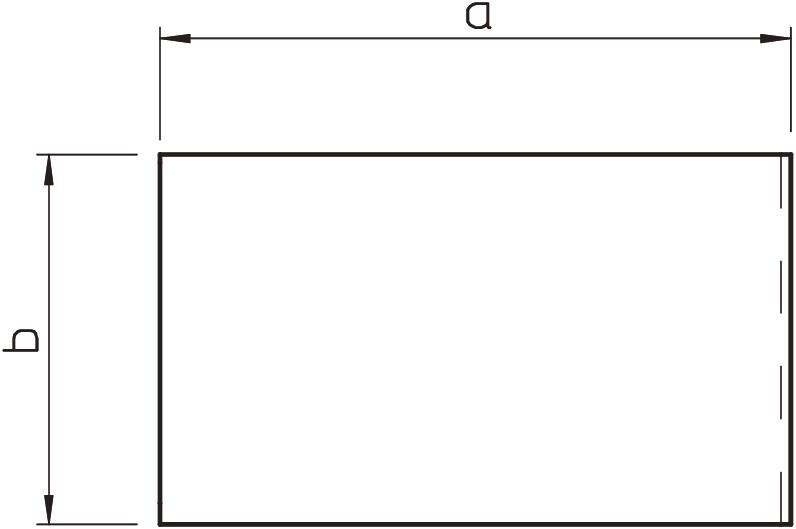

Dimension a 150 mm
Dimension b 210 mm
Dimension H 210 mm
Fastening type Lockable
Halogen-free no
Height 80 mm
Length 150 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 210 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE80210CW 150 mm 210 mm 210 mm Cream; RAL 9001 6163017
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HE80210CW / 6163017 , 0.14MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
