End piece, trunking type WDKH 30045 45 | 30 | | Pure white; RAL 9010
morepic-1 morepic-2

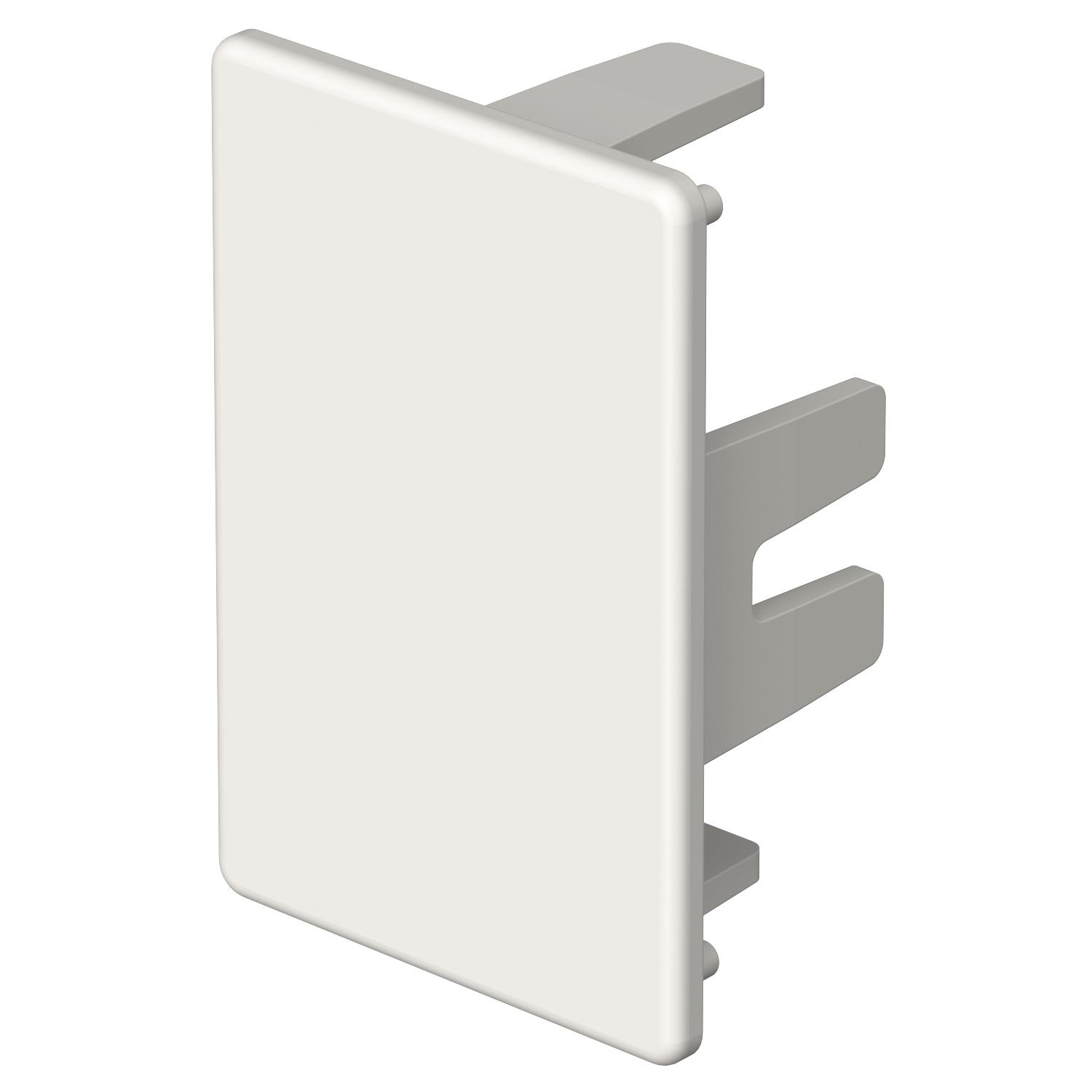

End piece, trunking type WDKH 30045

Item no. 6175554 | EAN 4012195813927

45 mm
30 mm
Product description

Product description

End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010

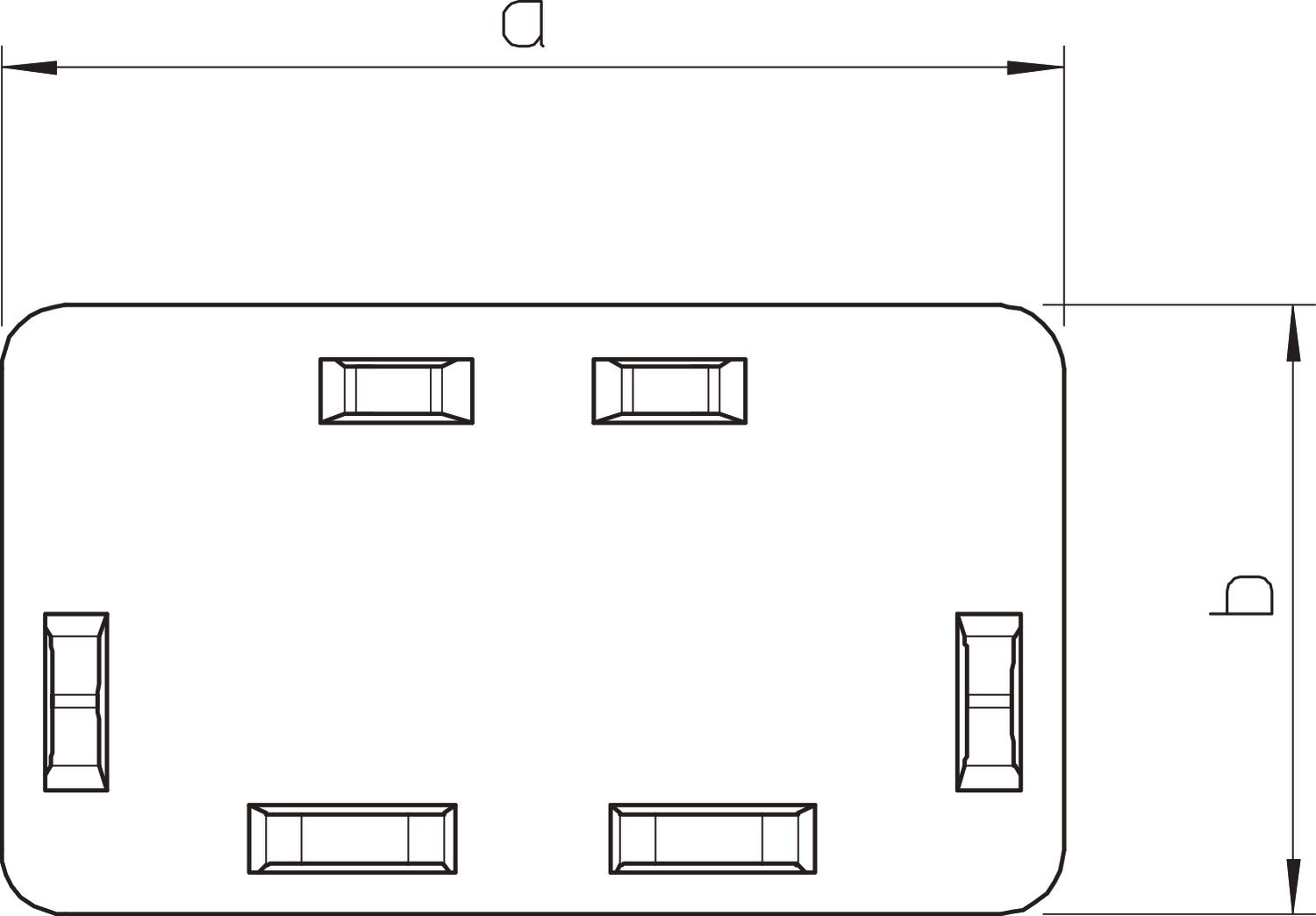

Dimension 30x45mm
Dimension a 45 mm
Dimension b 30 mm
Fastening type Lockable
Halogen-free yes
Height 30 mm
Length 17 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right
Width 45 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E30045RW 45 mm 30 mm Pure white; RAL 9010 6175554
10 piece
WDKH-E30045LGR 45 mm 30 mm Light grey; RAL 7035 6175932
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDKH-E30045RW / 6175554 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-E30045RW / 6175554 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-E30045RW / 6175554 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
