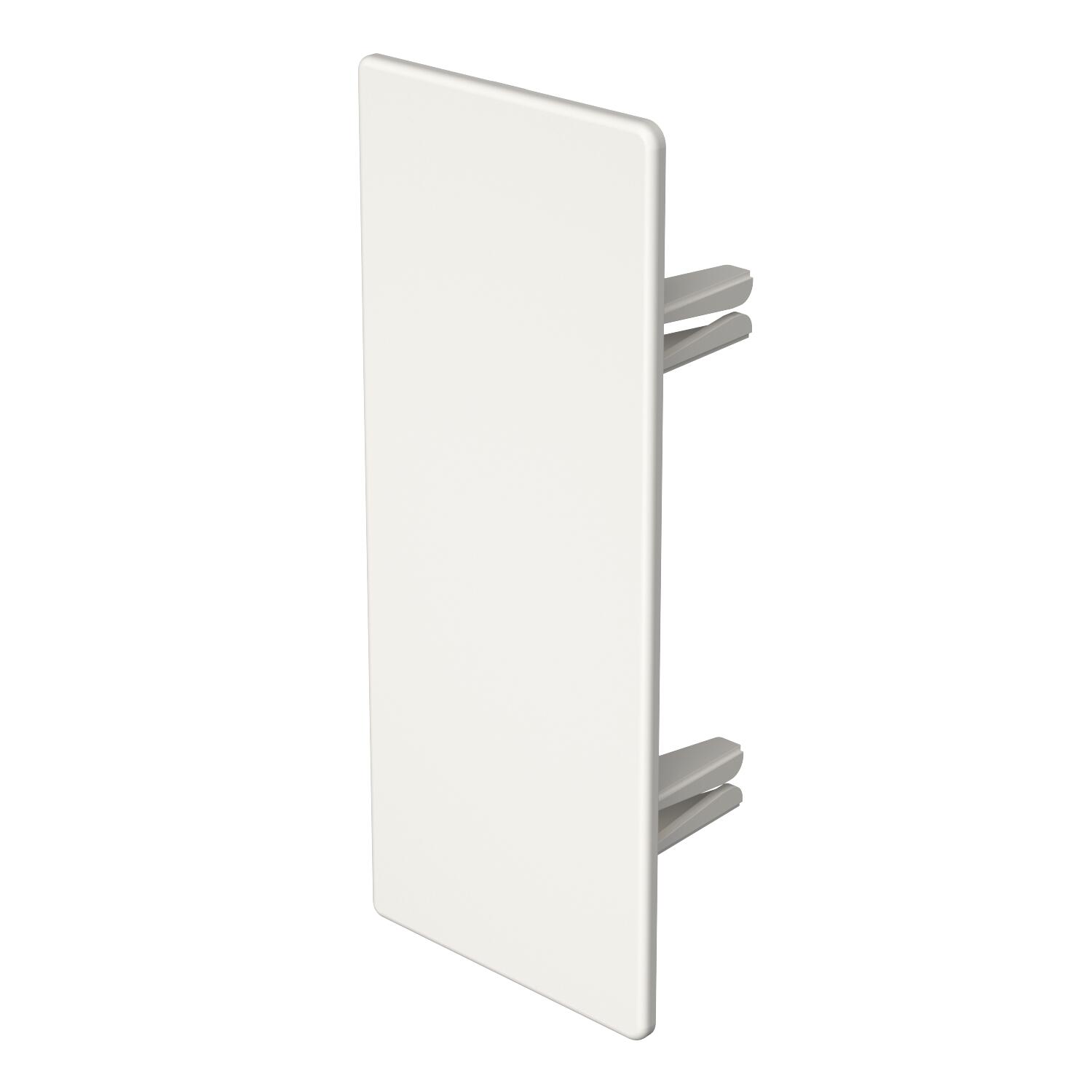

End piece, trunking type WDKH 60150

Item no. 6175570 | EAN 4012195813965

150 mm
60 mm
Product description

Product description

End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 60x150mm
Dimension a 150 mm
Dimension b 60 mm
Fastening type Lockable
Halogen-free yes
Height 60 mm
Length 27,5 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film yes
Version for Left/right
Width 150 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E60150RW 150 mm 60 mm Pure white; RAL 9010 6175570
10 piece
WDKH-E60150LGR 150 mm 60 mm Light grey; RAL 7035 6175948
10 piece
