- Product description
-
Product description

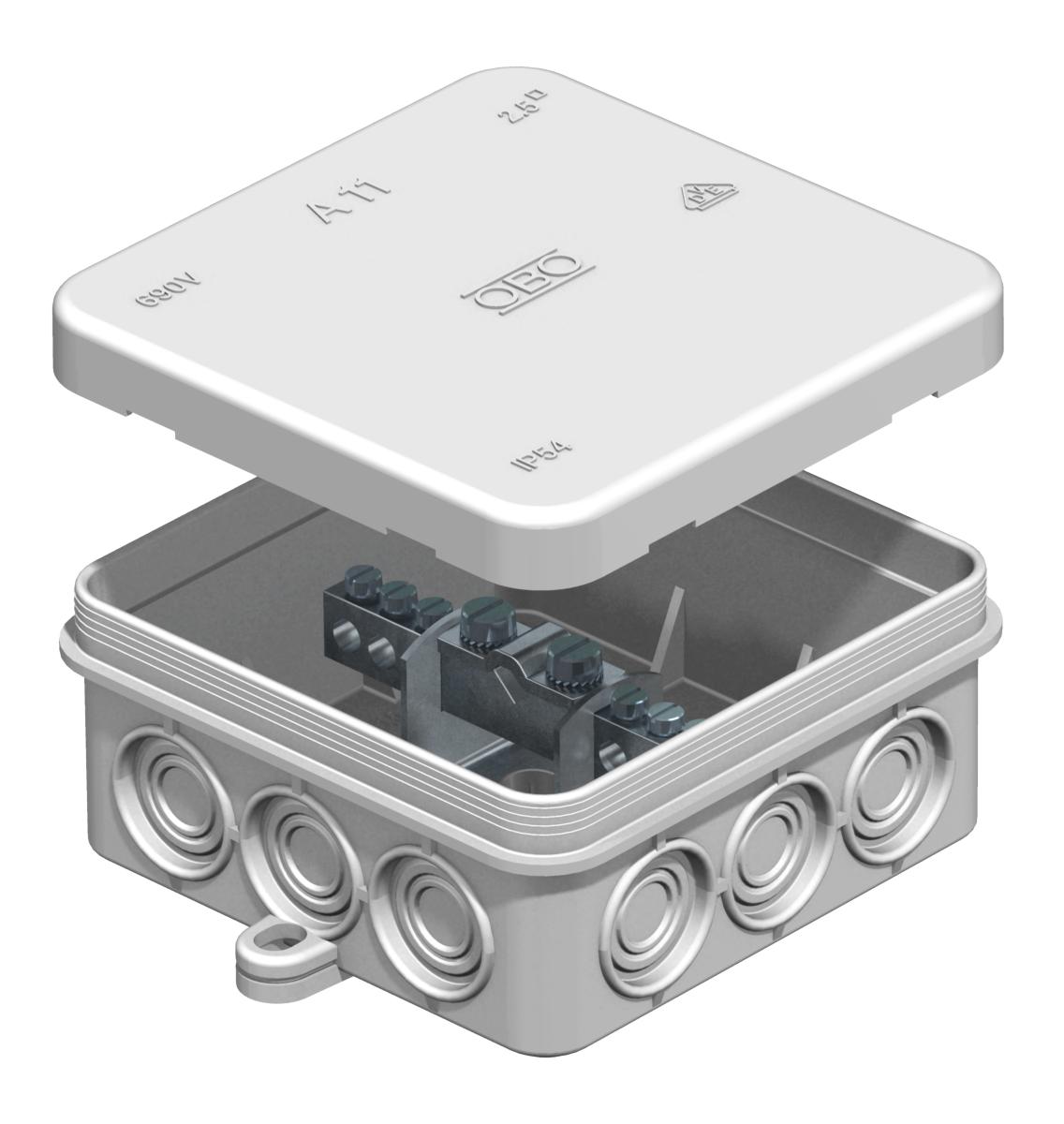

• Mounted equipotential busbar 1804 in junction box
• Pre-marked junction box for inserting required cables and covers
• Contact strip made of nickel-plated brass
• Screws and clamp strap from hot-dip galvanised steel
Connection options:
• 6x cables 1.5–10 mm²
• 1x cable 6–16 mm²
- Technical data
-
Technical data

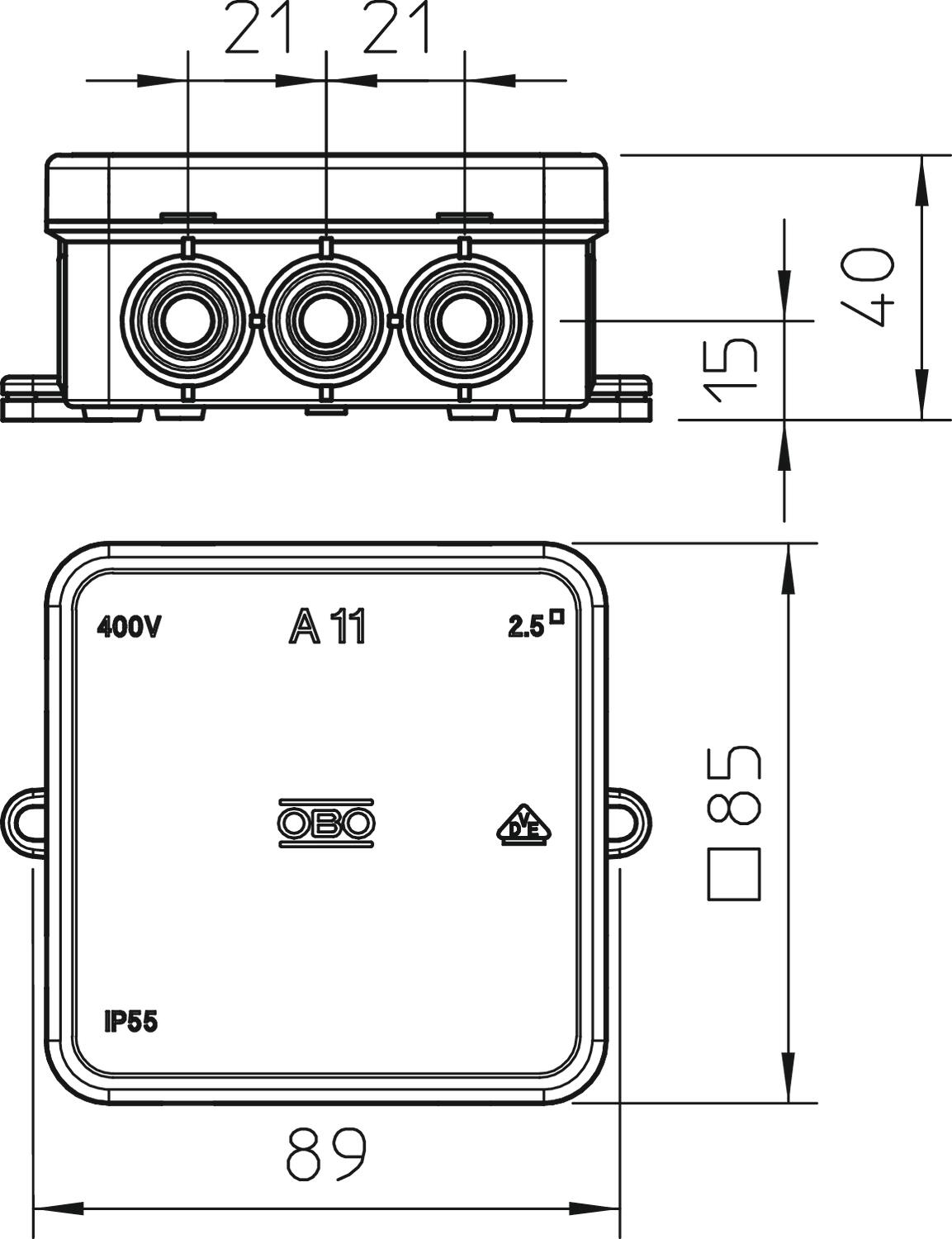

Colour Light grey; RAL 7035 Dimension 90,5x90,5x39 Insulator yes Material Polyethylene Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 16 mm², rigid 1 Quantity of cable connections up to 6 mm², rigid 6 Quantity of round conductor connections, total 7 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for In the housing Dimensions
Height 39,3 mm Length 90,5 mm Width 90,5 mm - All types
- Downloads
-
Data sheet 1804 AP / 5015557 , 0.16MB , pdfDeclaration of conformity 1804 AP / 5015557 , 0.10MB , pdf
