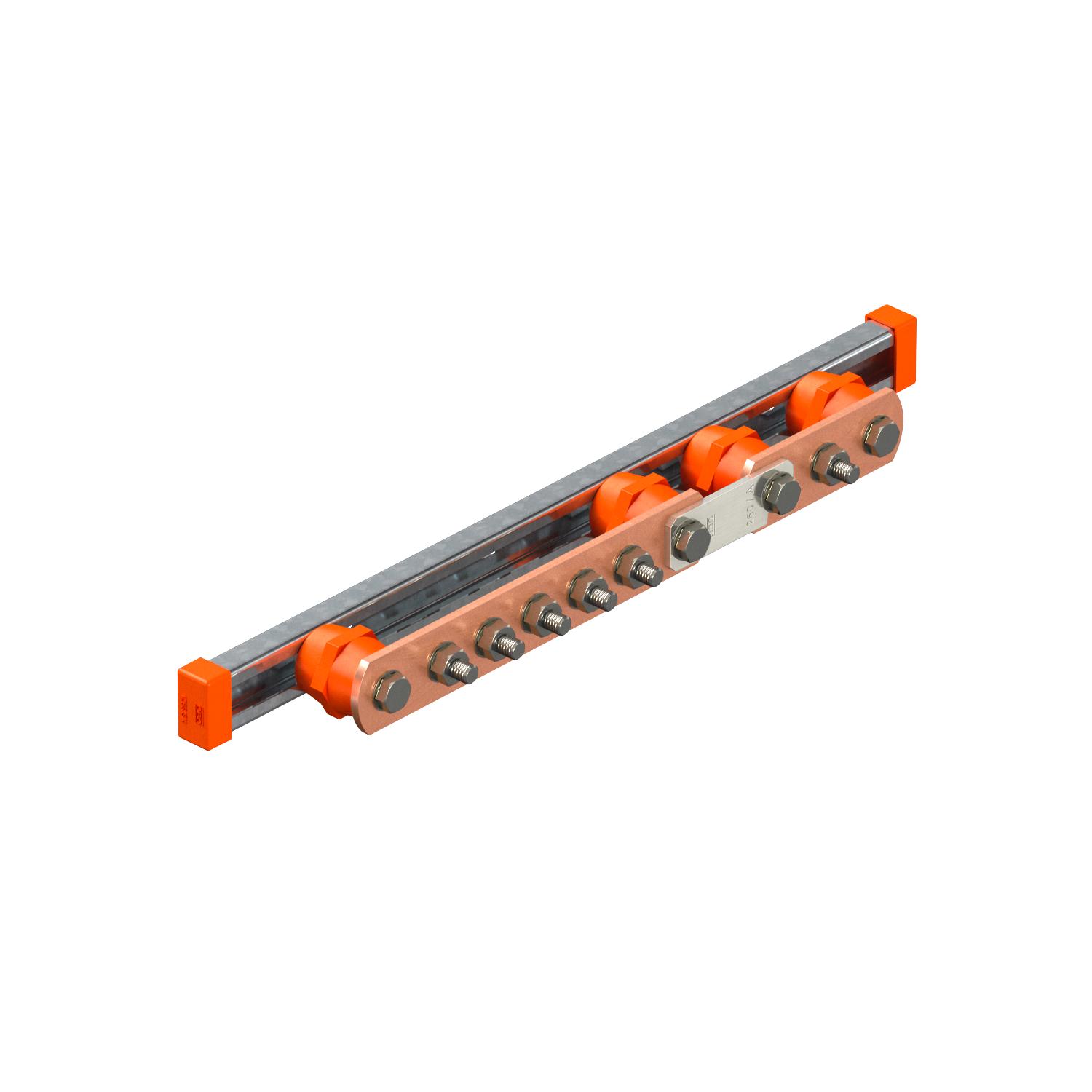

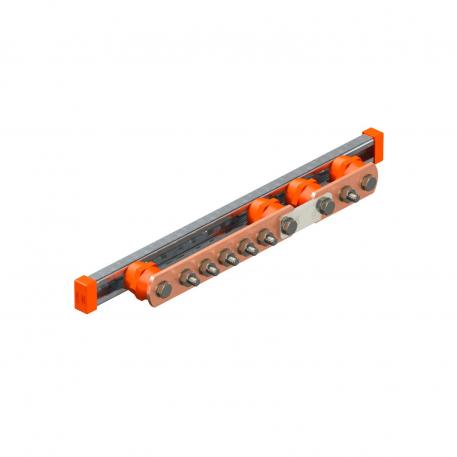

Equipotential busbar for flexible wall mounting with separation point

Item no. 5015870 | EAN 4012196681921

40 mm
Product description
Product description
Main equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

• With separation point (Disconnect – DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening



  • Lightning current-tested
Technical data

Technical data

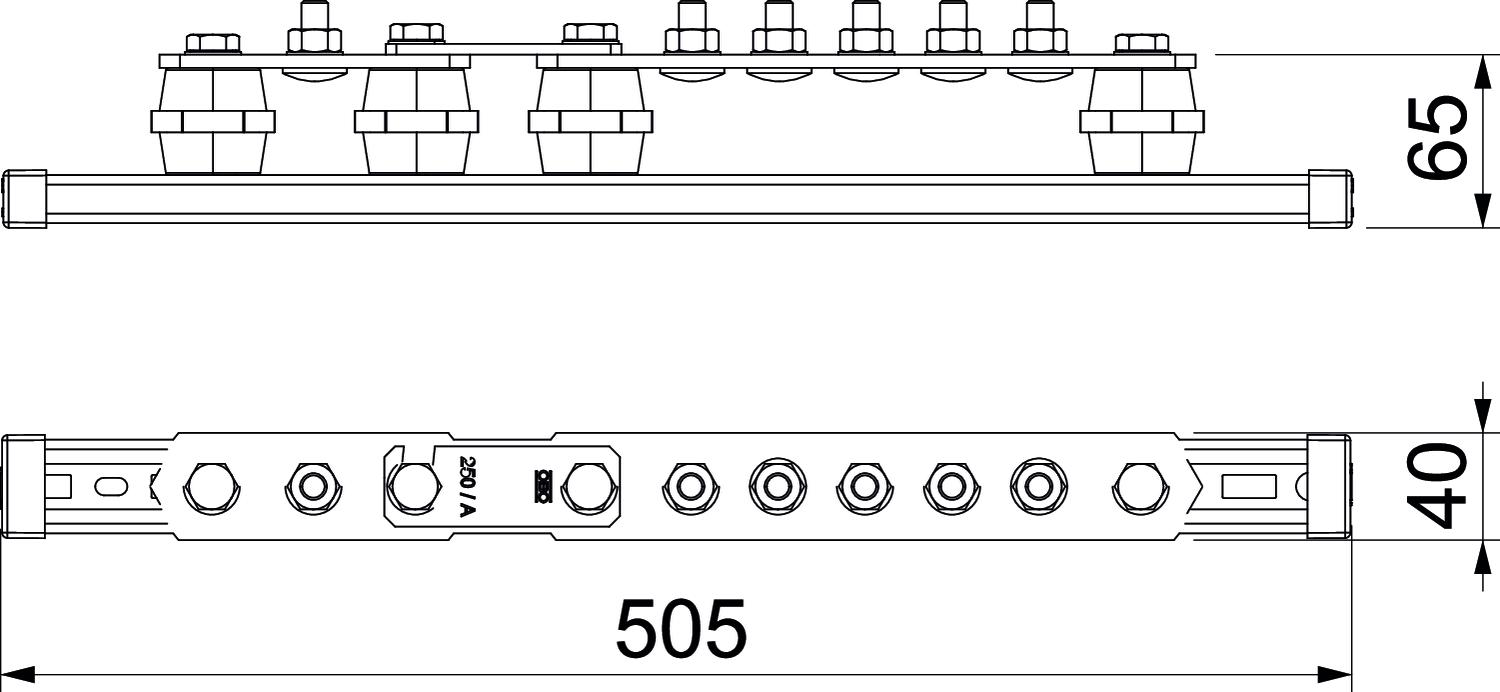

Dimension 5+1 x M10
Height 85 mm
Insulator yes
Length 505 mm
Lightning current carrying capacity H/100 kA
Material Copper
Material of the contact rail Copper
Material of the terminal Copper
Number of connections 6
Type Fixed structure
Version for Only terminal
Width 40 mm
All types

All types

Types Length Width Height Number of connections Item no. Quantity SSU
1802 5 CU 246 mm 40 mm 5 mm 5 5015830
1 piece
1802 6 CU 278.5 mm 40 mm 5 mm 6 5015832
1 piece
1802 8 CU 343.5 mm 40 mm 5 mm 8 5015836
1 piece
1802 10 CU 408.5 mm 40 mm 5 mm 10 5015842
1 piece
1802 12 CU 473.5 mm 40 mm 5 mm 12 5015844
1 piece
1802 14 CU 538.5 mm 40 mm 5 mm 14 5015847
1 piece
1802 20 CU 733.5 mm 40 mm 5 mm 20 5015849
1 piece
1802 DC 5+1 CU 505 mm 40 mm 85 mm 6 5015870
1 piece
1802 DC 5+5 CU 605 mm 40 mm 85 mm 10 5015874
1 piece
Downloads

Download

Download
Download

EU declaration of conformity 1802 DC 5+1 CU / 5015870 , 0.13MB , pdf
Download

Download

1802 DC 5+1 CU / 5015870
