Falling vertical bend EI60 for PLCS D061220 fire protection duct

Item no. 7217944 | EAN 4012196836840

Grey
Product description

Product description

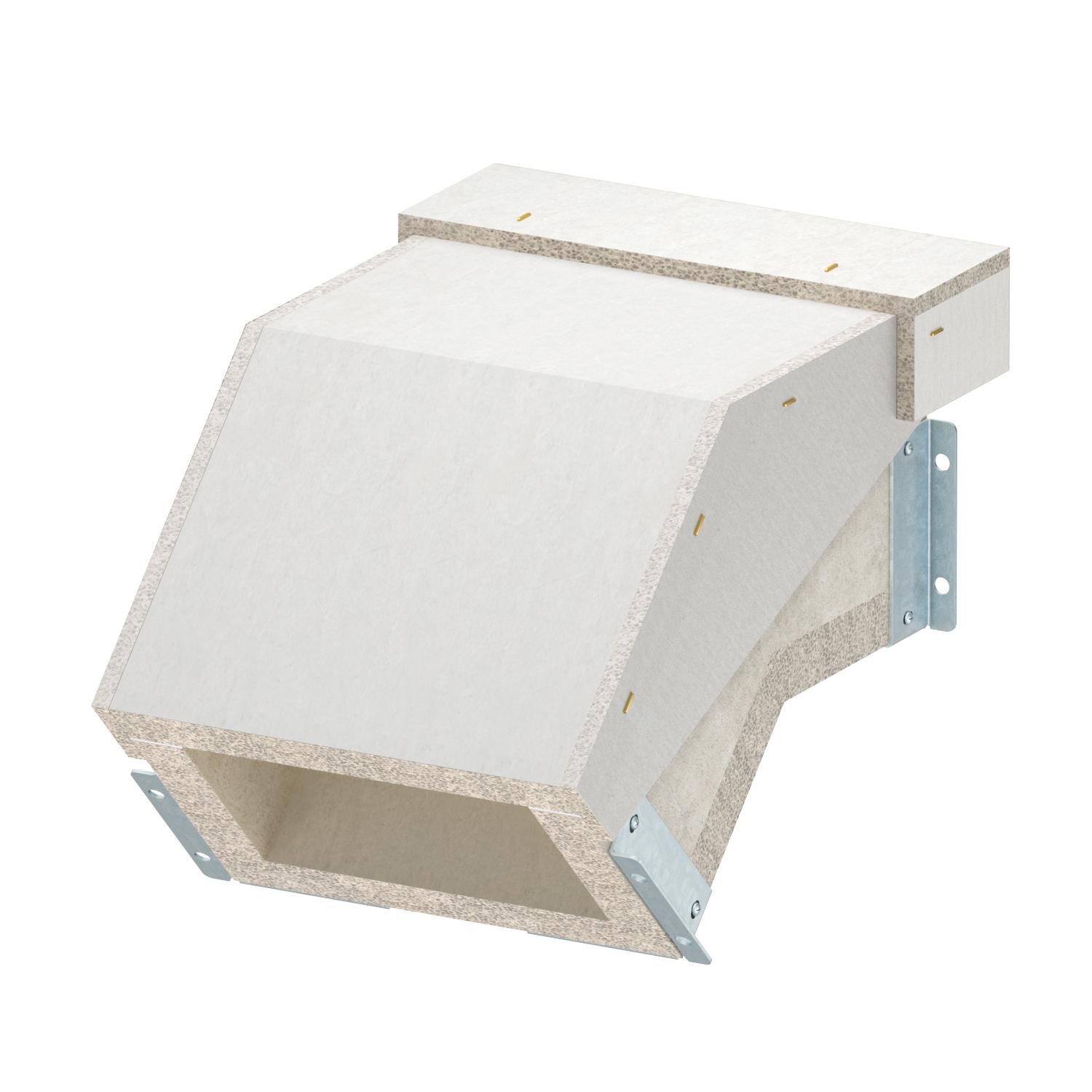

Falling vertical bend for PYROLINE® Con S EI60 fire protection duct, type PLCS D061220, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Including connection screws and sealing strips.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle of the bend 45 °
Classification EI − installation duct 60
Colour Grey
Cover fastening Loose

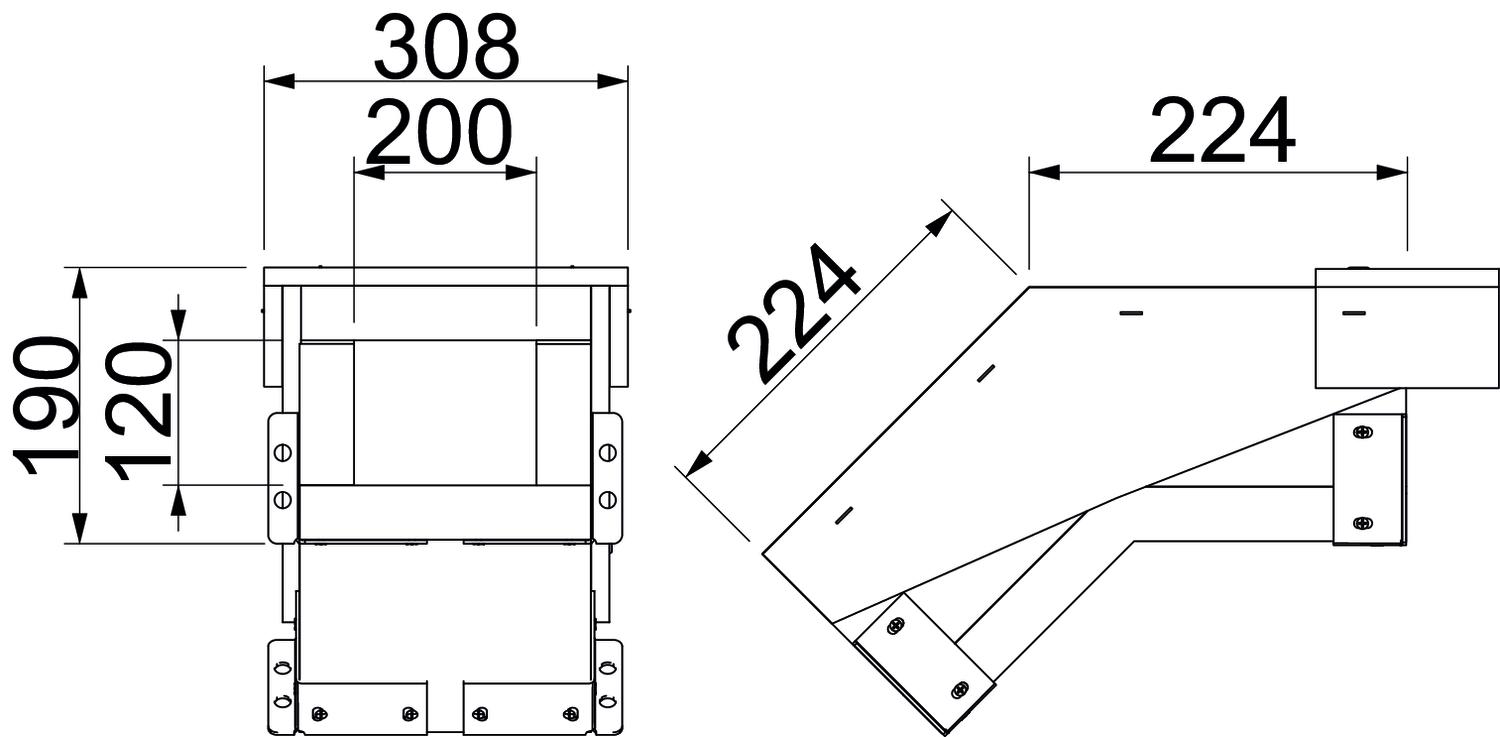

Dimension 200x120
Dimension B 308 mm
Dimension b 200 mm
Dimension h 120 mm
Dimension H 190 mm
Dimension L 224 mm
Jacketing Without
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Number of flammable sides 4
With perforation no
All types

All types

Types Dimension B Dimension b Dimension H Dimension h Dimension L Colour Item no. Quantity SSU
PLCS VF060810 208 mm 100 mm 150 mm 80 mm 207 mm Grey 7217940
1 piece
PLCS VF061220 308 mm 200 mm 190 mm 120 mm 224 mm Grey 7217944
1 piece
