Fastening clip 604, light duty
Item no. 1003356 | EAN 4012195001812
- Product description
-

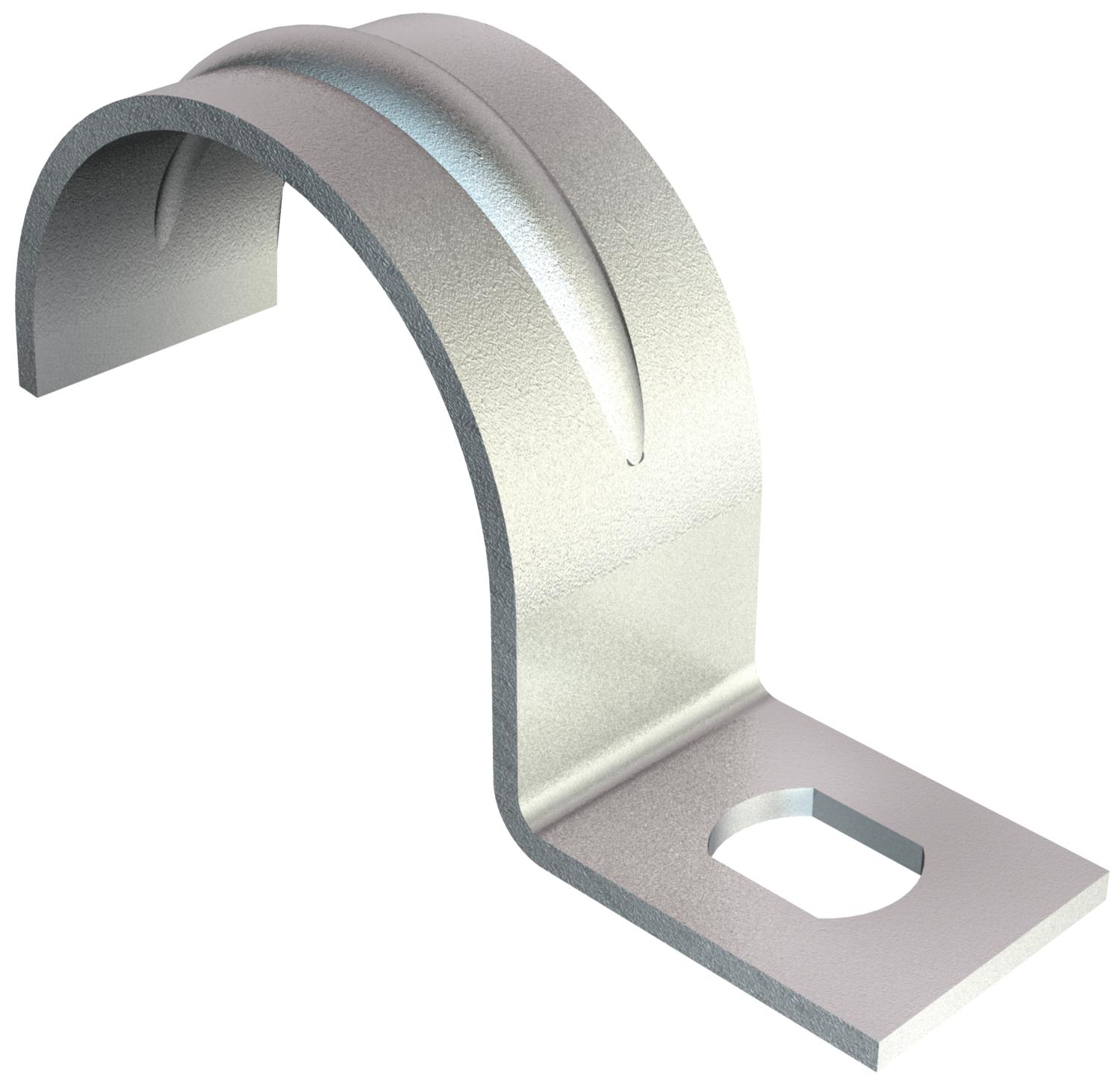

Product descriptionSingle-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool
-
- Technical data
-
Technical data

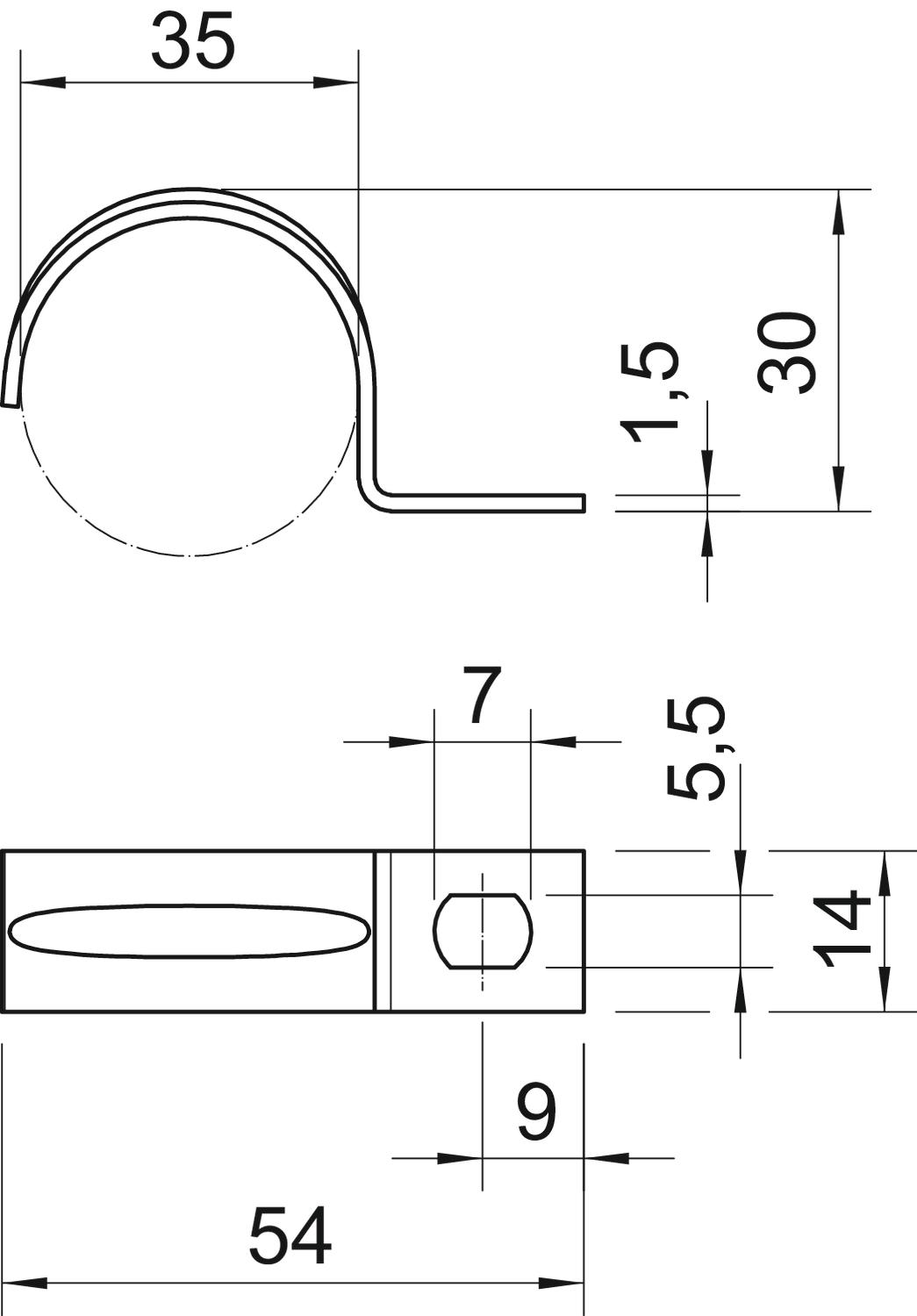

CO₂ Footprint (GWP) Cradle-to-Gate 0,0231 kg CO₂e / 1 Piece Dimension 35mm Dimension A 8,75 mm Dimension b 14 mm Dimension d 5,5 mm Dimension D 35 mm Dimension e 7 mm Dimension H 30 mm Dimension L 54 mm Dimension t 1,5 mm Distance to the wall no Fastening type Screw hole For diameter 35 Halogen-free yes Height 30 mm Hole size 5,5 x 7 mm Length 54 mm Material Steel Material thickness 1,5 mm Nominal diameter 35 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Single-lobe Width 14 mm - All types
-
All types
