Fastening clip 604, light duty
Item no. 1003062 | EAN 4012195000976
- Product description
-

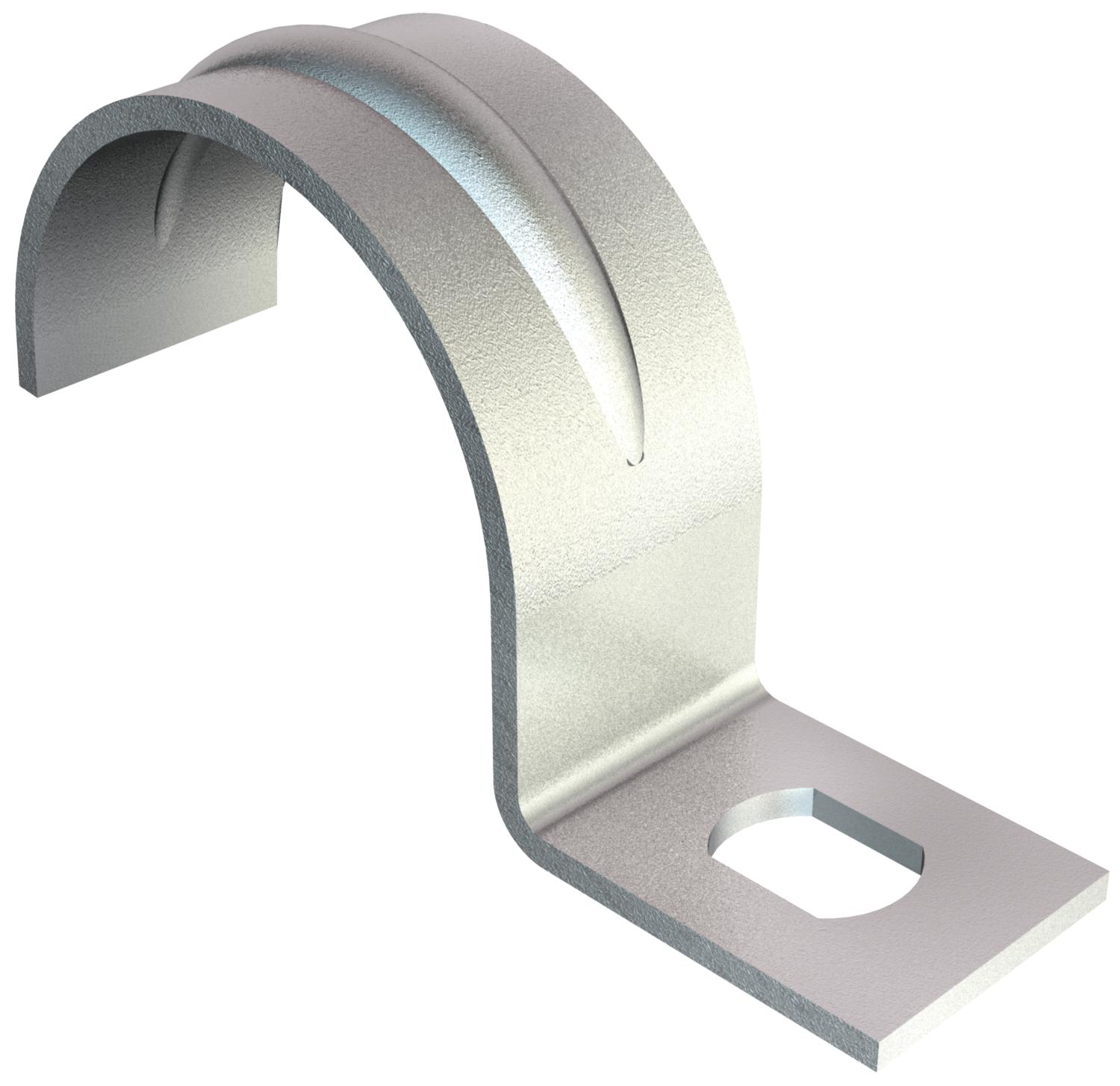

Product descriptionSingle-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool
-
- Technical data
-
Technical data

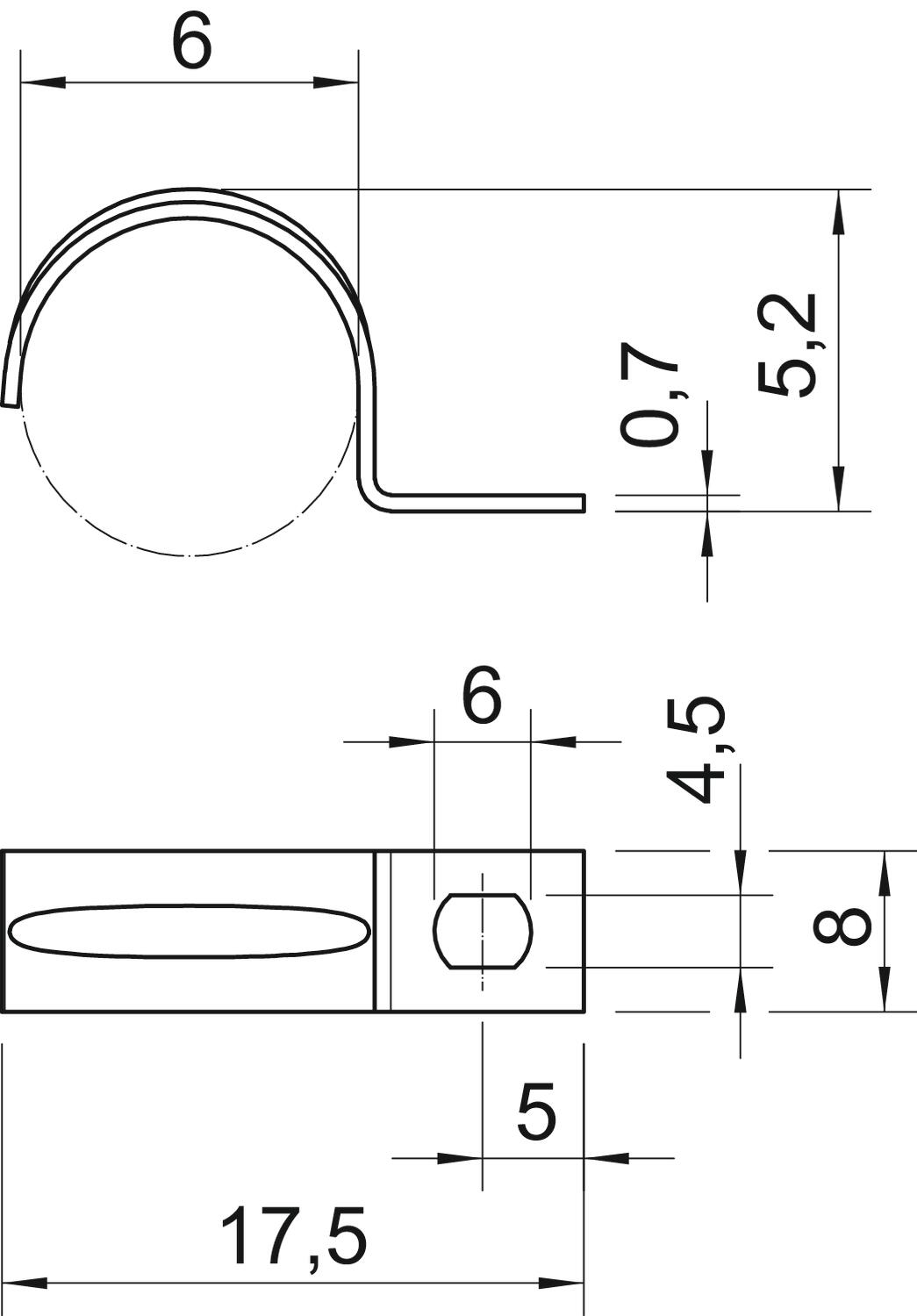

CO₂ Footprint (GWP) Cradle-to-Gate 0,0034 kg CO₂e / 1 Piece Dimension 6mm Dimension A 5 mm Dimension b 8 mm Dimension d 4,5 mm Dimension D 6 mm Dimension e 6 mm Dimension H 5,2 mm Dimension L 17,5 mm Dimension t 0,7 mm Distance to the wall no Fastening type Screw hole For diameter 6 Halogen-free yes Height 5,2 mm Hole size 4,5 x 6 mm Length 17,5 mm Material Steel Material thickness 0,7 mm Nominal diameter 6 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Single-lobe Width 8 mm - All types
-
All types
- Downloads
-
Data sheet 604 6 G / 1003062 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 604 6 G / 1003062 , 0.06MB , pdfREACH Declaration of conformity 604 6 G / 1003062 , 0.12MB , pdfRoHS Declaration of conformity 604 6 G / 1003062 , 0.12MB , pdf
