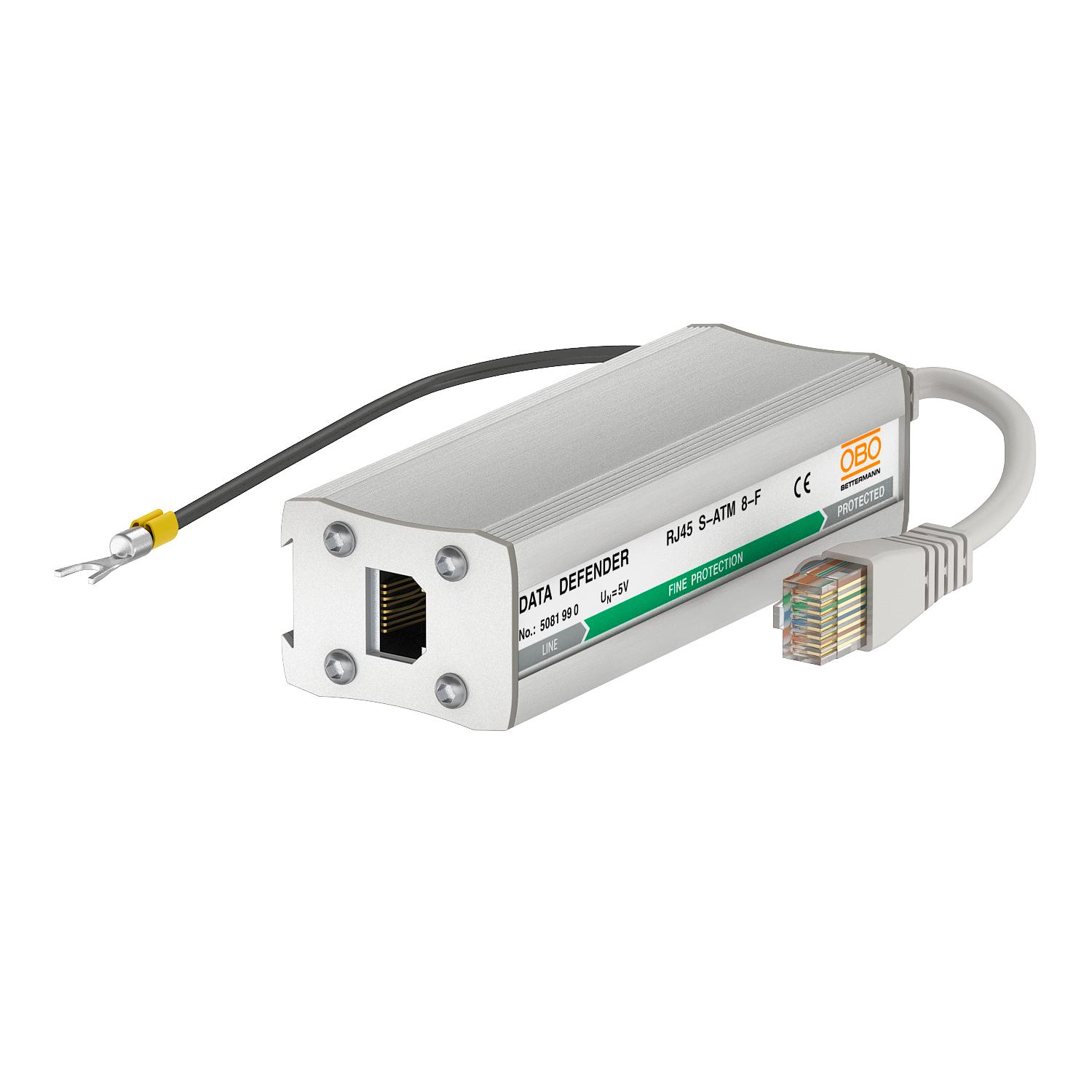

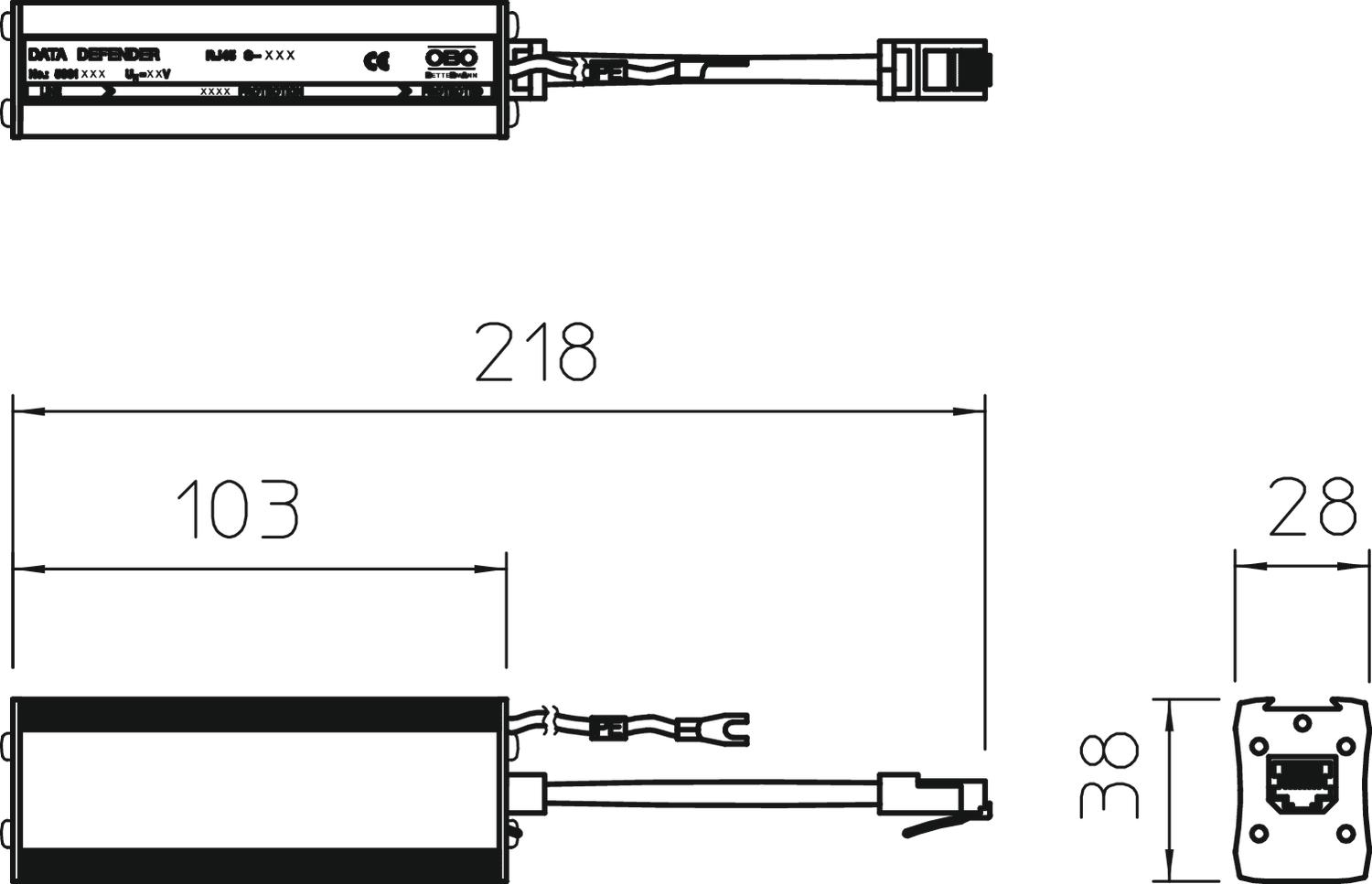

Fine protection 8-F for Ethernet networks (Class D/CAT 5)

Item no. 5081990 | EAN 4012196415694

5081990 / RJ45 S-ATM 8-F
8
Fine protection, 8 wires + shield
6
RJ45 8(8)
Product description

Product description

Universal data cable protection device for network technology and telecommunication systems



• In aluminium housing

• Protection for 8 cores

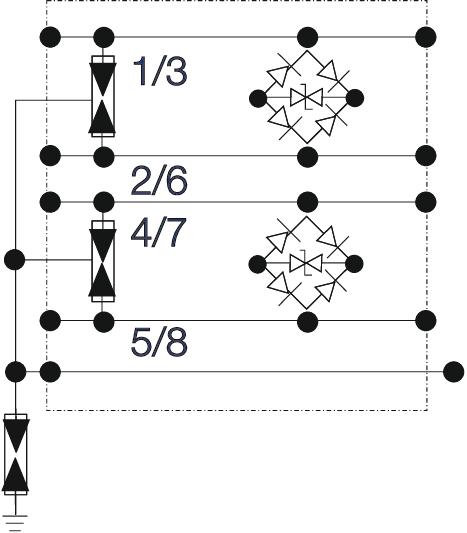

• With two-stage protective circuit

• Simple mounting

• With RJ45 Western connector

• Incl. 150 mm connection cable with RJ45 connectors

• Cat 5e network technology, 10BaseT, 100BaseT, 1000BaseT

• DIN rail mounting with accessories DLS-BS (5082 38 2)


Application: For analogue, ISDN, DSL systems, Ethernet Twisted Pair.
• Usable in networks of Class D or CAT 5e

• Can be locked onto DIN profile rails or mounted directly at the terminal

• Simple installation using RJ45 connection technology

• Optimised transmission properties
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 1 to LPZ 3
  • Category 5 TwisterPair
  • Installation electrotechnical expertise
Technical data

Technical data

Arrestor monitoring no
Capacity (wire-earth) <10 pF
Capacity (wire-wire) <50 pF
Channel performance Ansi/EA CAT 5e
Channel performance ISO/IEC Class D
Cut-off frequency 155 MHz
Dimension 6.2V
Earthing via: Connection cable
Impulse durability wire-earth C2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wire C2: 3 kV / 1,5 kA (8/20µs)
Insertion loss <3 @ 150 MHz dB
Insulation resistance >1 GΩ
Kategorie Type 2+3 / C2+C1
Lightning protection zone LPZ 1→3
Maximum continuous voltage AC 4,2
Maximum continuous voltage DC 6
Number of poles 8
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system RJ45 8(8)
Protection level wire-earth <900 V
Protection level wire-wire <40 V
Protection rating IP40
Screening Direct
Shielding connection available yes
SPD to IEC 61643-21 Class II+III / C2+C1
Testing standard IEC 61643-21
Total discharge current (8/20) 7,5 kA
Version for Fine protection, 8 wires + shield
All types

All types

Types Number of poles Version for Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
RJ45 S-ATM 8-F 8 Fine protection, 8 wires + shield 6 RJ45 8(8) 5081990
1 piece
