Fine protection device TELE 4-F for ISDN RJ45 4 | Fine protection, 4 wires | 120 | 170 | RJ45

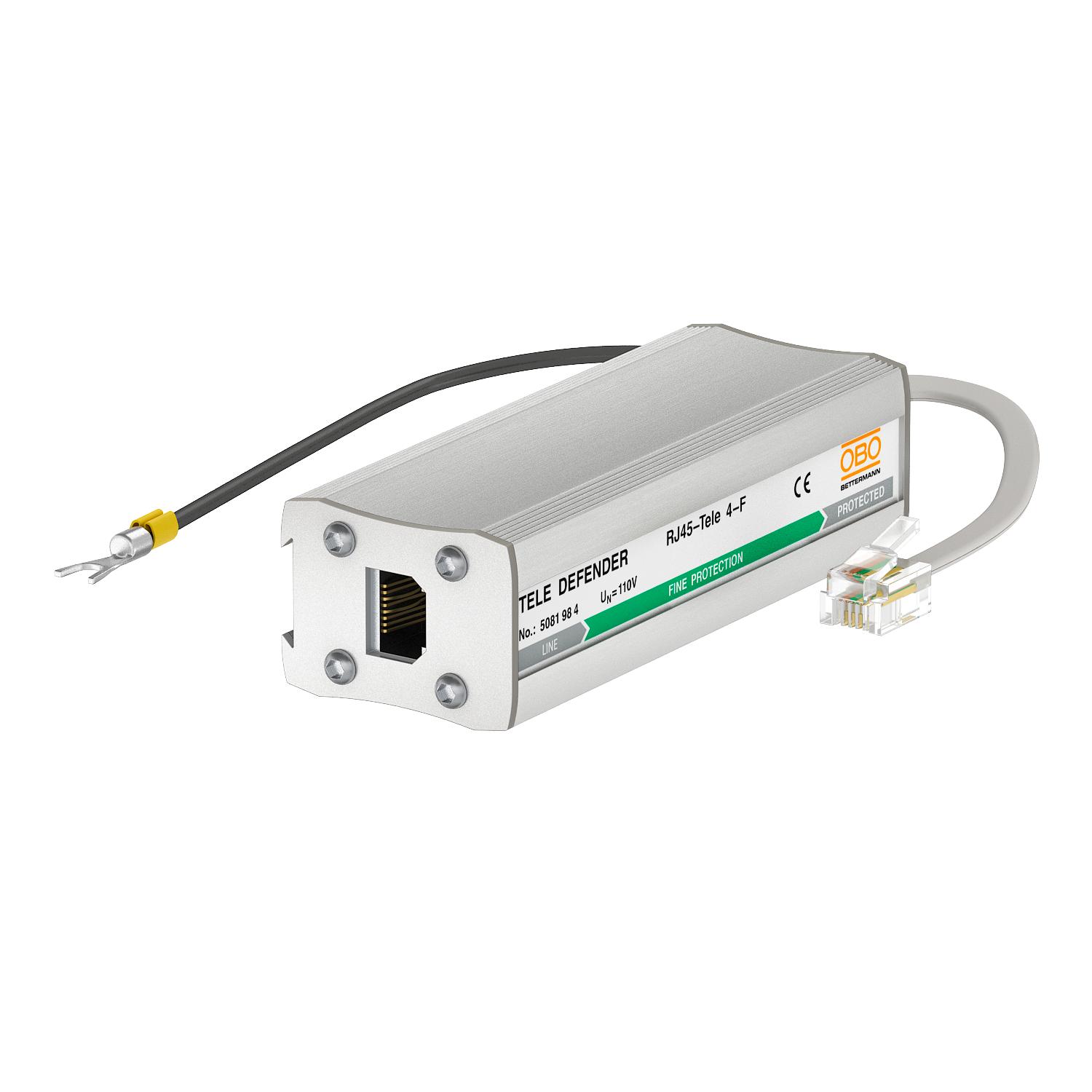

Fine protection device TELE 4-F for ISDN RJ45

Item no. 5081984 | EAN 4012196415687

Item no. / Types	5081984 / RJ45-TELE 4-F

Number of poles	4

Version for	Fine protection, 4 wires

Maximum continuous voltage AC	120 V

Maximum continuous voltage DC	170 V

Plug-in system	RJ45

Product description

Product description

Data line protection device for analogue telecommunications systems

• In aluminium housing

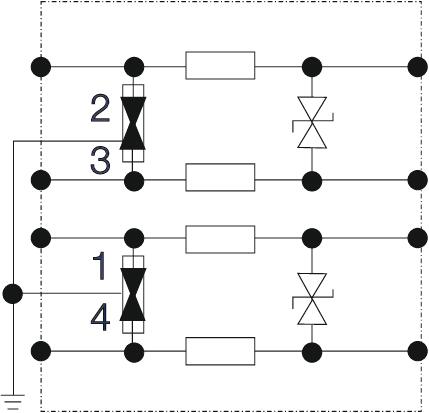

• With 2-stage protection circuit

• Simple mounting

• Incl. 150 mm connection cable with RJ11 and/or RJ45 connectors

• Optimised bandwidth for TC systems

• DIN rail mounting with DLS-BS accessories (5082 38 2)

Application: For analogue telecommunication systems
• In aluminium housing
• Simple mounting on hat rail or on terminal
• Incl. 150 mm connection cable with RJ411 connectors
• Optimised bandwidth for telecommunications systems

Technical data

Technical data

Cable type for surge protection devices	Telecommunications line
Capacity (wire-earth)	<20 pF
Capacity (wire-wire)	<500 pF
Cut-off frequency	18 MHz
Dimension	170V
Earthing via:	Connection cable
Impulse durability wire-earth	C2: 2 kV / 1 kA (8/20)
Impulse durability wire-wire	C1: 1 kV / 0,5 kA (8/20)
Insertion loss	≤3 dB
Insulation resistance	> 34 MΩ
Kategorie	Type 2+3 / C2+C1
Lightning protection zone LPZ	1→3
Maximum continuous voltage AC	120 V
Maximum continuous voltage DC	170 V
Nominal load current AC	0,2 A

Nominal load current DC	0,3 A
Number of poles	4
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	RJ45
Protection level wire-earth	<600 V
Protection level wire-wire	<300 V
Protection level, wire-earth at 1 kV/µs (C3)	<245
Protection rating	IP40
Series resistance per wire	2,2 Ω ± 10 %
Signalling on device	Without
SPD to IEC 61643-21	Class II+III / C2+C1
Testing standard	IEC 61643-21
Total discharge current (8/20)	4 kA
Version for	Fine protection, 4 wires
