Flat angle cover, trunking type WDK 20050 | 50 | Cream; RAL 9001
morepic-1 morepic-2

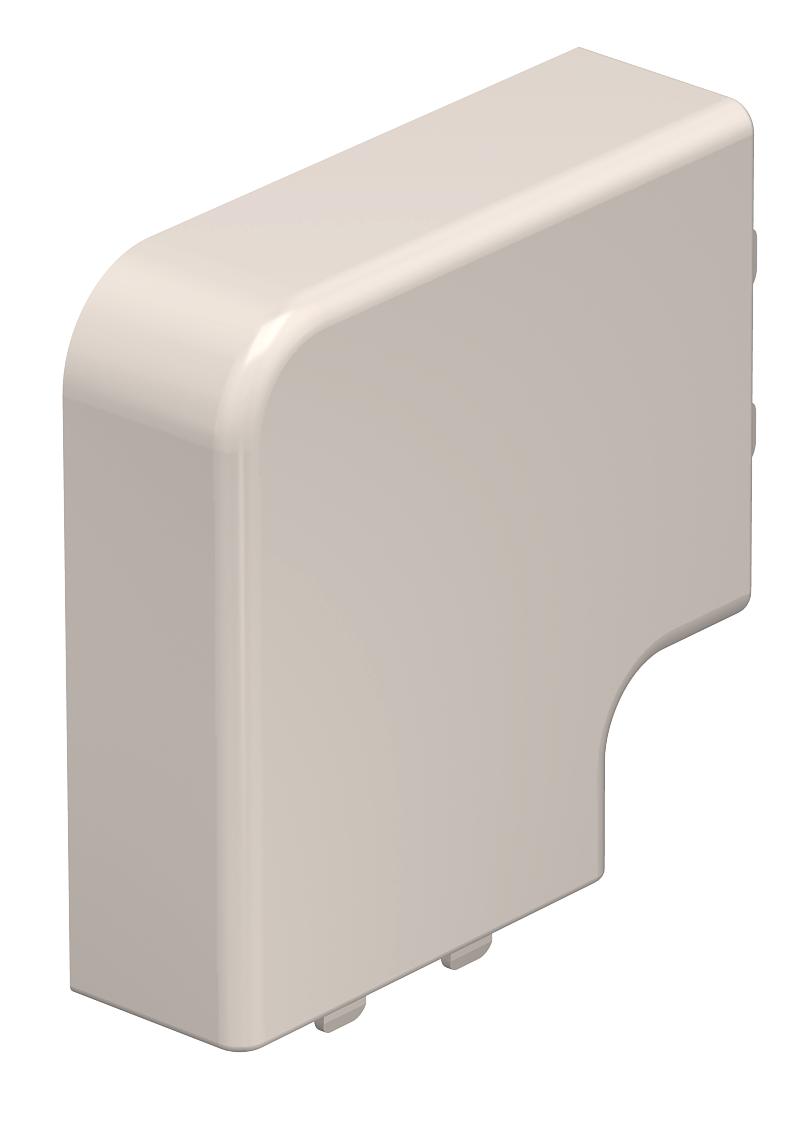

Flat angle cover, trunking type WDK 20050

Item no. 6152686 | EAN 4012196507733

6152686 / WDK HF20050CW
50 mm
Cream; RAL 9001
Product description

Product description

Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 20x50mm
Dimension a 73 mm
Dimension H 50 mm
Fastening type Lockable
for duct dimension 20 x 50
Halogen-free no
Height 20 mm
Length 73 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 20 mm
Version for Hood fitting
Width 50 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF20050CW 50 mm Cream; RAL 9001 6152686
4 piece
