Flat angle cover, trunking type WDK 40110 | 110 | Cream; RAL 9001
morepic-1 morepic-2

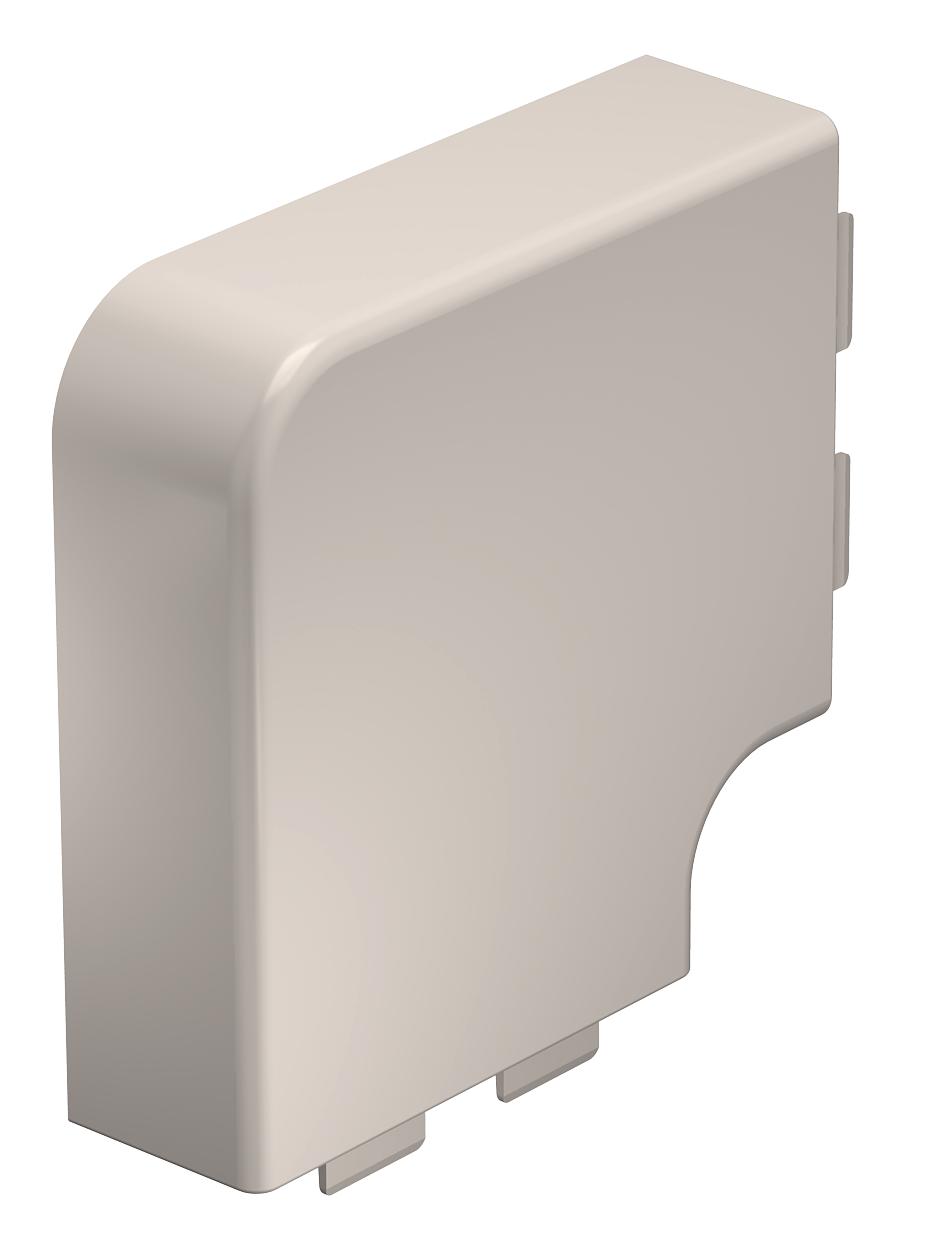

Flat angle cover, trunking type WDK 40110

Item no. 6161324 | EAN 4012196107834

6161324 / WDK HF40110CW
110 mm
Cream; RAL 9001
Product description

Product description

Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 40x110mm
Dimension a 110 mm
Dimension H 110 mm
Fastening type Lockable
for duct dimension 40 x 110
Halogen-free no
Height 40 mm
Length 110 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 40 mm
Version for Hood fitting
Width 110 mm
All types

All types

Types Dimension H Colour Item no. Quantity SSU
WDK HF40110CW 110 mm Cream; RAL 9001 6161324
2 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HF40110CW / 6161324 , 0.14MB , pdf
