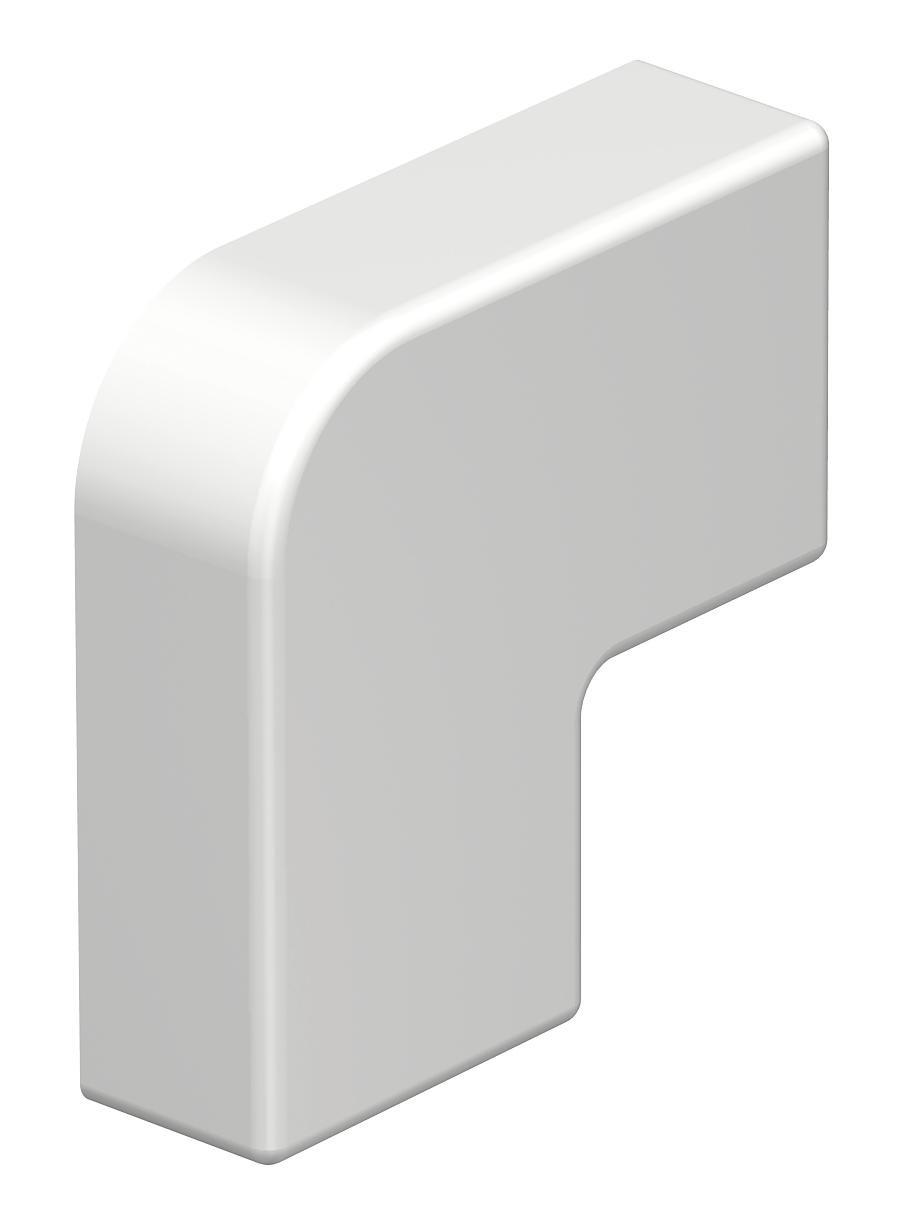

Flat angle cover, trunking type WDKH 10020
Item no. 6175648 | EAN 4012195933885
- Product description
-
Product description
Flat angle hood for changing the direction of the halogen-free WDKH trunking.
-
- Technical data
-
Technical data

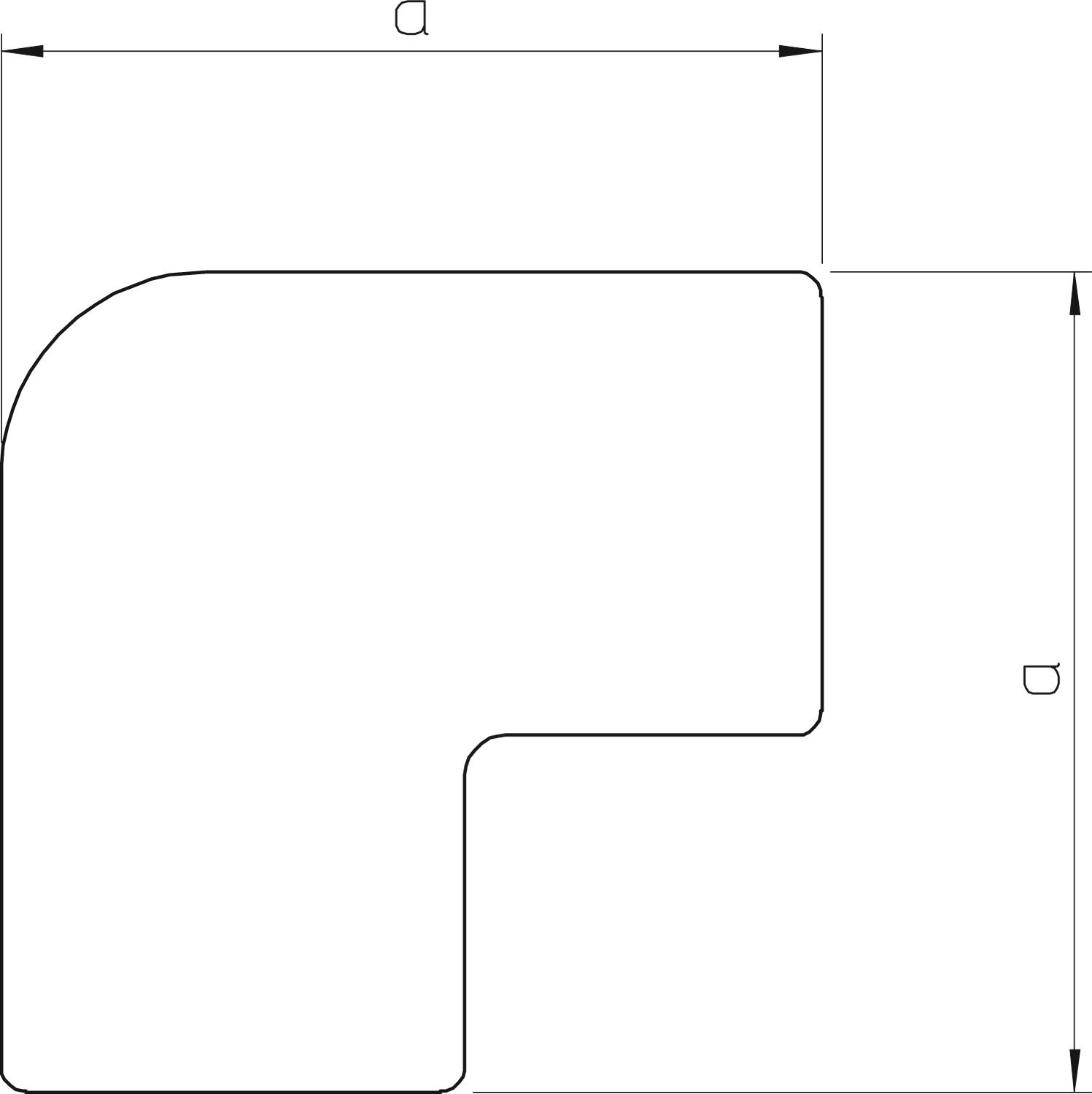

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 10x20mm Dimension a 40 mm Fastening type Lockable for duct dimension 10 x 20 Halogen-free yes Height 10 mm Length 40 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Self-extinguishing yes Trunking depth 10 mm Version for Hood fitting Width 22 mm - All types
