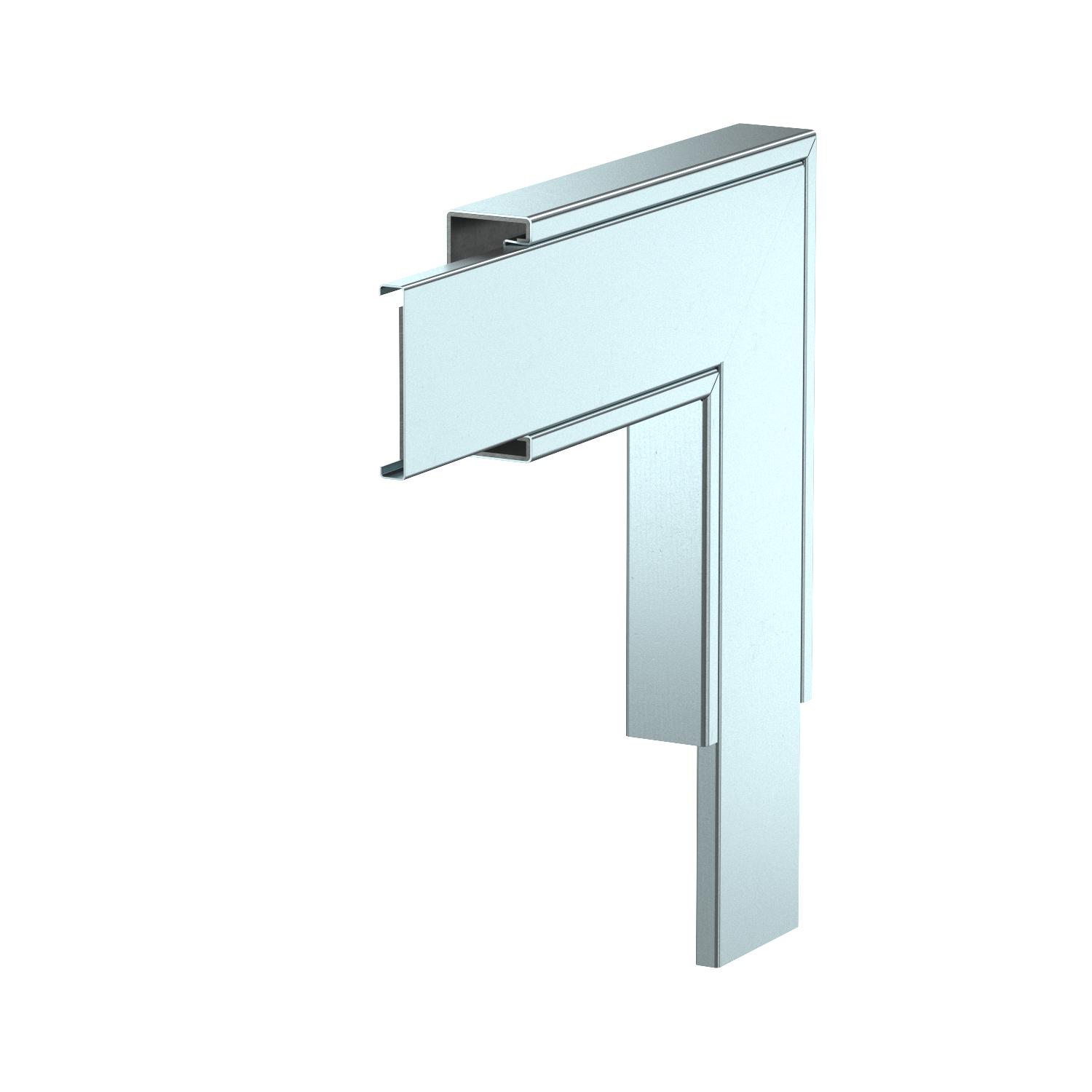

Flat angle, duct height 40 mm, FS
Item no. 7218062 | EAN 4012197365448
- Product description
-
Product descriptionFlat angle with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

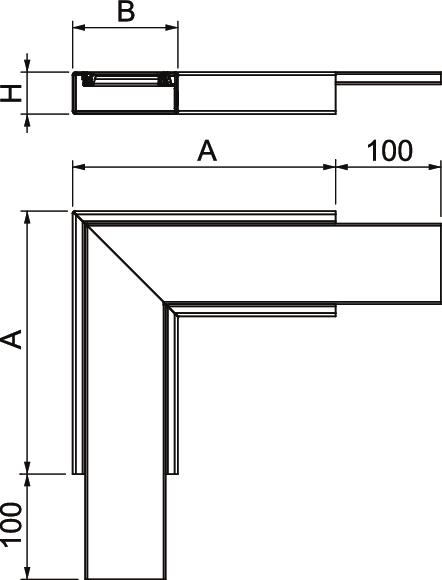

Angle of the bend 90 ° Classification EI − installation duct 90 Colour zinc Cover fastening Miscellaneous Dimension 350x350x40 Dimension A 250 mm Dimension B 100 mm Dimension H 40 mm Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Strip galvanized Usable cross-section 1780 mm² With perforation yes - All types
- Downloads
-
Data sheet PLM FA 0410 FS / 7218062 , 0.19MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLM FA 0410 FS / 7218062 , 0.11MB , pdfDeclaration of performance PLM FA 0410 FS / 7218062 , 0.78MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfNo invitation to tender text is available for this product.
