Flat angle, trunking type WDK 100230
Item no. 6182349 | EAN 4012197251208
- Product description
-
Product description

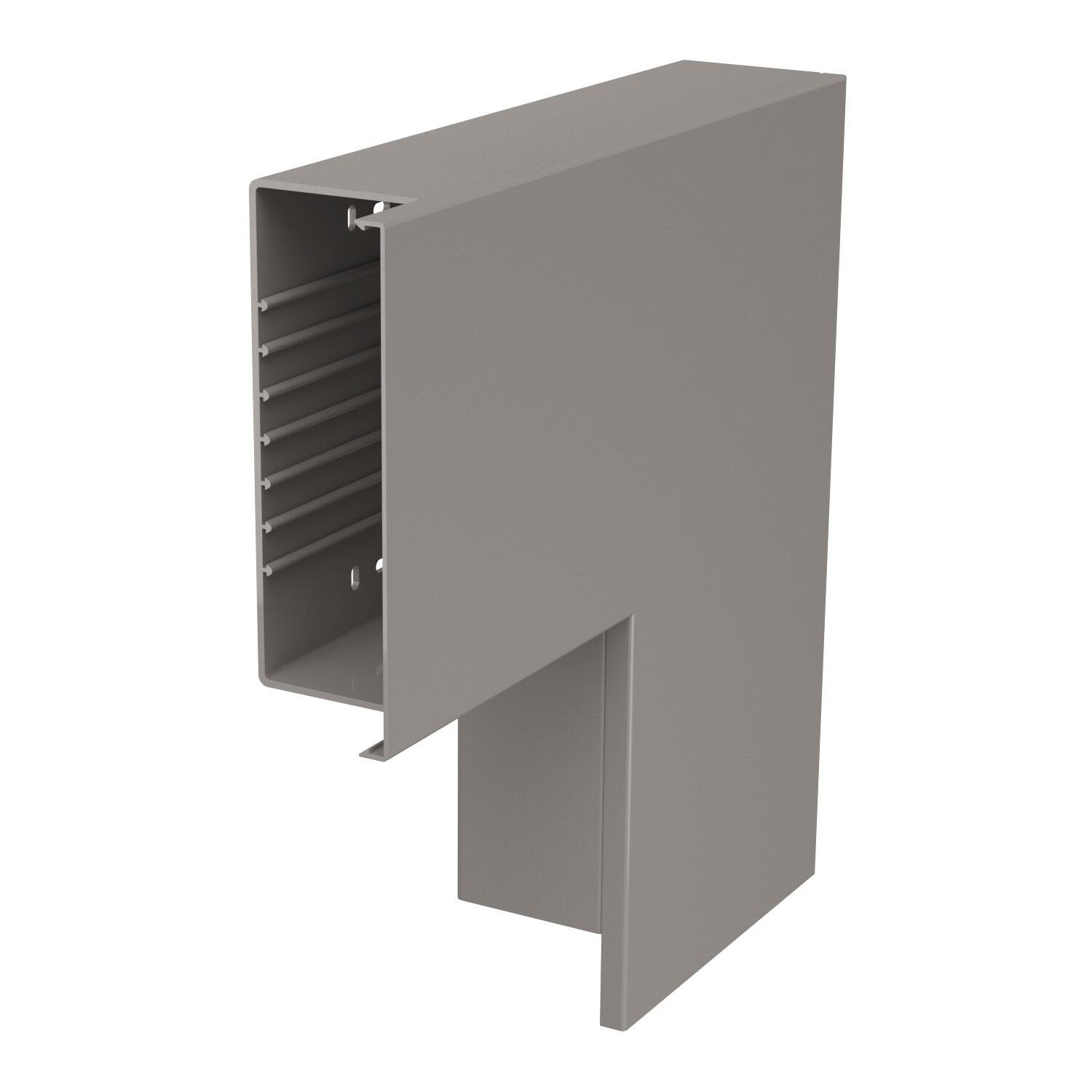

Flat angle for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data

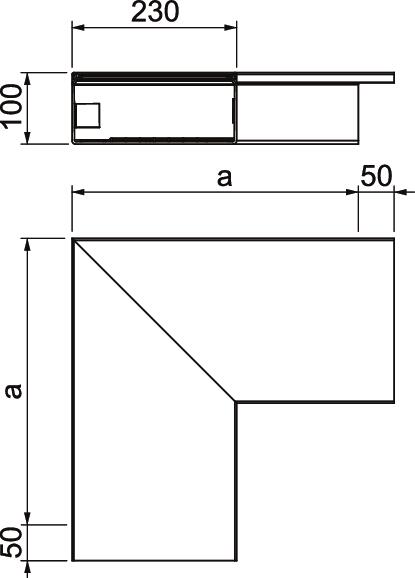

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Stone grey; RAL 7030 Dimension 400x230x100 Dimension a 400 mm Fastening type Base perforation for duct dimension 100 x 230 Halogen-free no Height 100 mm Length 400 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 100 mm Version for Base and cover Width 230 mm - All types
- Downloads
-
Data sheet WDK F100230GR / 6182349 , 0.26MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK F100230GR / 6182349 , 0.13MB , pdfUK Declaration of Conformity WDK F100230GR / 6182349 , 0.14MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
