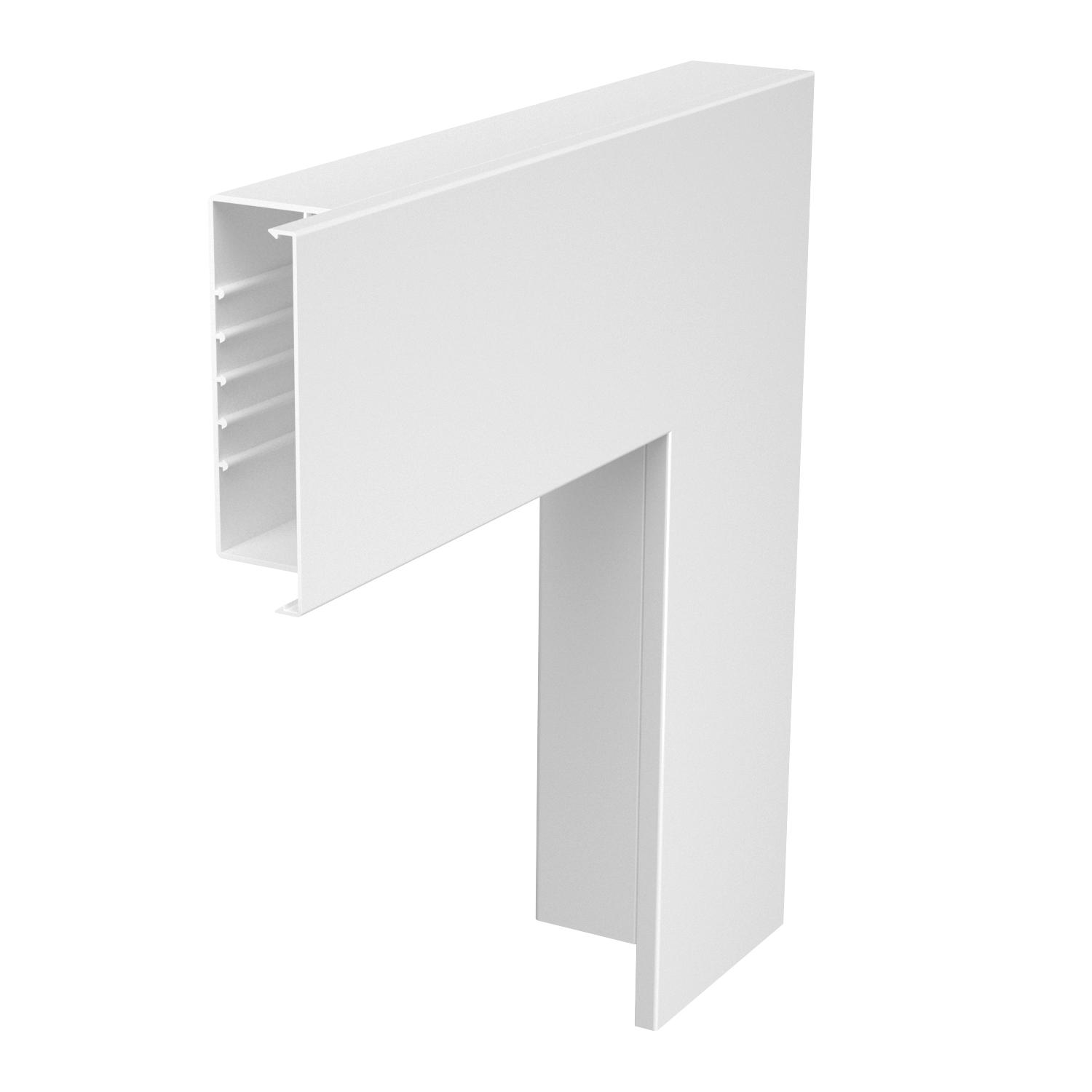

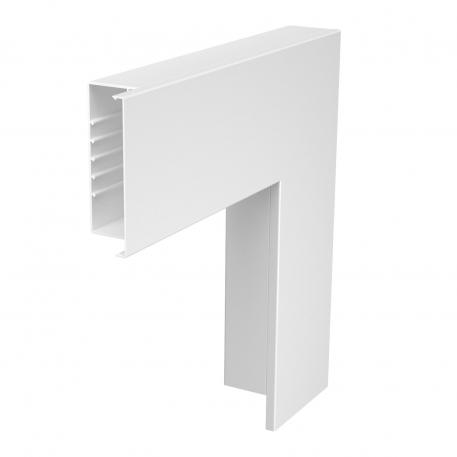

Flat angle, trunking type WDK 80170
Item no. 6183531 | EAN 4012197250966
- Product description
-
Product description
Flat angle for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data

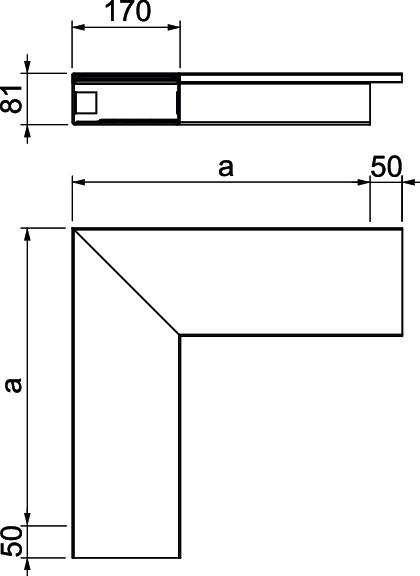

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 470x170x80 Dimension a 470 mm Fastening type Base perforation for duct dimension 80 x 170 Halogen-free no Height 80 mm Length 470 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 80 mm Version for Base and cover Width 170 mm - All types
- Downloads
-
Data sheet WDK F80170RW / 6183531 , 0.28MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK F80170RW / 6183531 , 0.13MB , pdfUK Declaration of Conformity WDK F80170RW / 6183531 , 0.14MB , pdfREACH Declaration of conformity WDK F80170RW / 6183531 , 0.12MB , pdfRoHS Declaration of conformity WDK F80170RW / 6183531 , 0.12MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
