Flat cable threaded connection, metric thread M25, stone grey
Item no. 2013011 | EAN 4012195515531
- Product description
-
Product descriptionFlat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
-
- Technical data
-
Technical data

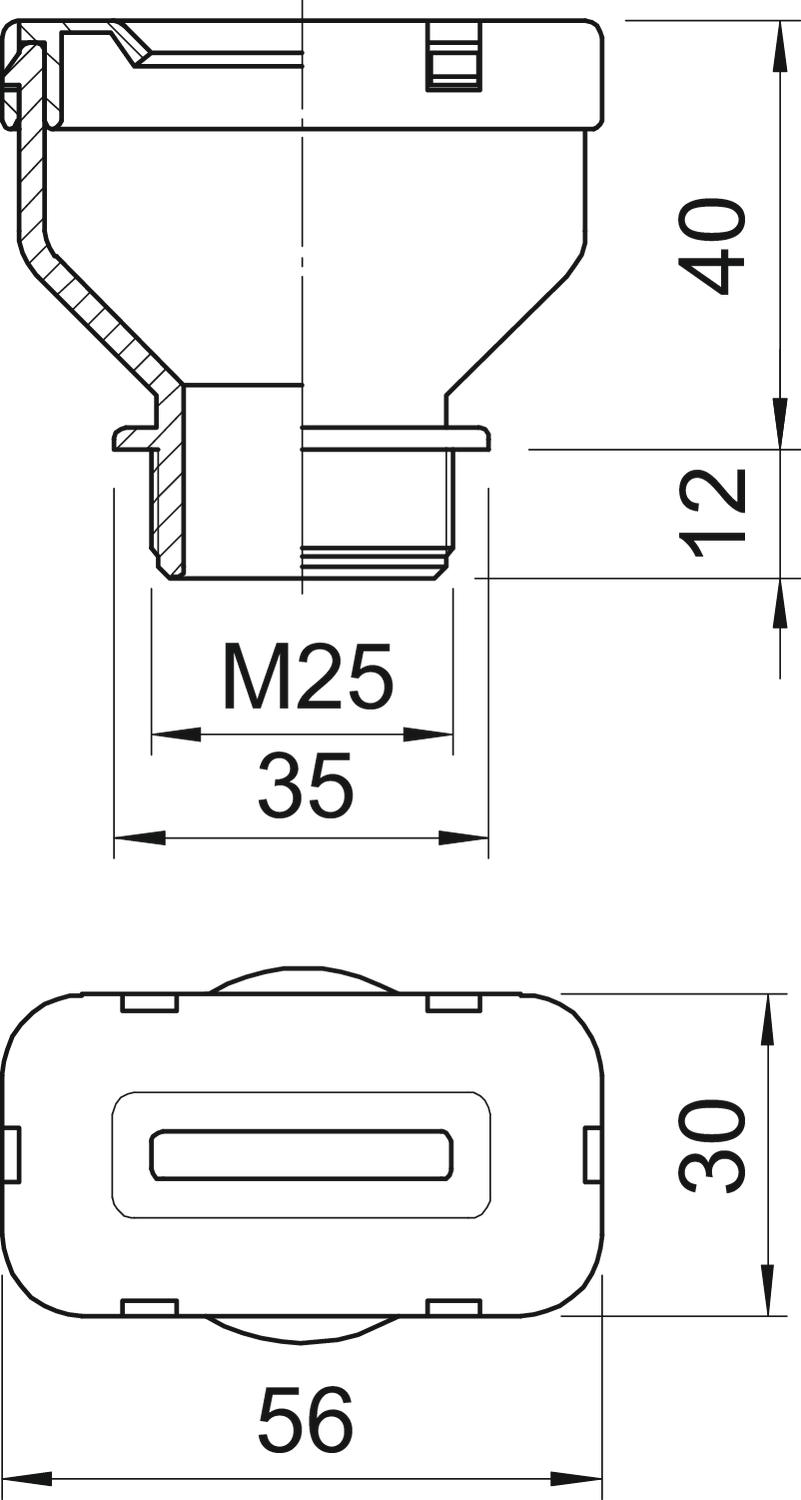

Bend protection yes Colour Stone grey; RAL 7030 Dimension M25 Dimension A 30 mm Dimension B 56 mm Dimension D 35 mm Dimension G M25 mm Dimension L 52 mm Dimension L1 12 mm Dimension L2 40 mm explosion-proof no Fibre-glass reinforced no Flat cable gland yes Flat cable/width, max. 31,5 mm Flat cable/width, min. 28,5 mm Flat cables/thickness, max. 10,5 mm Flat cables/thickness, min. 8,5 mm For Ex zone Without Impact-resistant no Material Polyethylene Protection rating IP31 Sealing insert, multiple no Strain relief option no Thread M25 Thread type Metric Type of seal Sealing ring Version for Straight With locknut no - All types
-
All types
- Downloads
-
Data sheet 106 FL M25 10 31 / 2013011 , 0.22MB , pdfEU declaration of conformity 106 FL M25 10 31 / 2013011 , 0.13MB , pdfREACH Declaration of conformity 106 FL M25 10 31 / 2013011 , 0.12MB , pdfRoHS Declaration of conformity 106 FL M25 10 31 / 2013011 , 0.12MB , pdf
