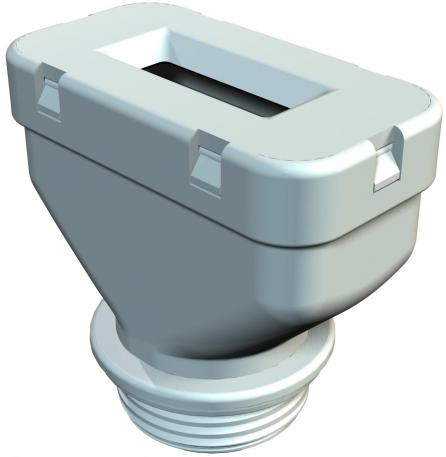

Flat cable threaded connection, metric thread M32, stone grey

Item no. 2013015 | EAN 4012195515715

M32
Product description

Product description

Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 31
  • Thread metric
Technical data

Technical data

Bend protection yes
Colour Stone grey; RAL 7030

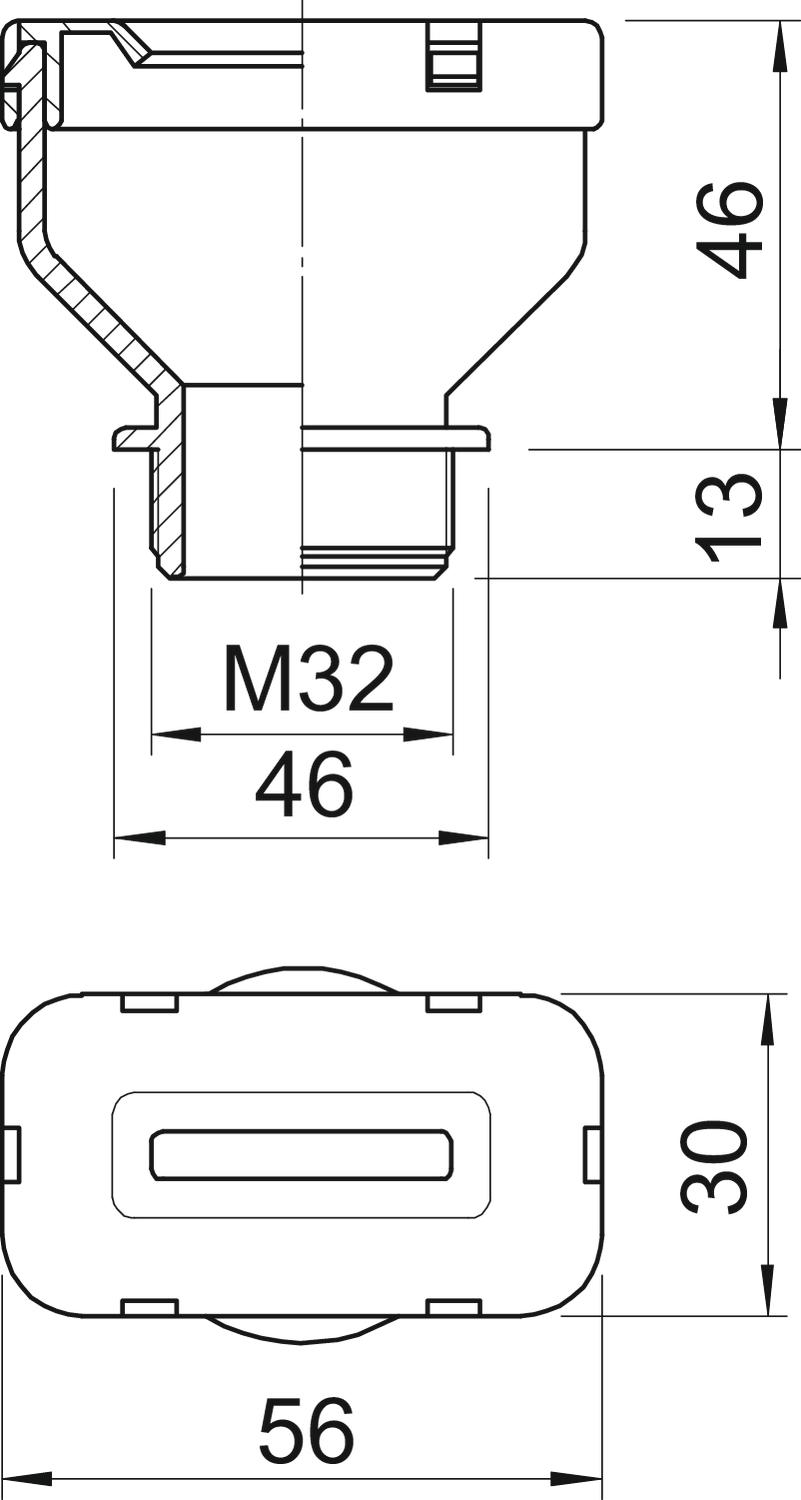

Dimension M32
Dimension A 30 mm
Dimension B 56 mm
Dimension D 46 mm
Dimension G M32 mm
Dimension L 59 mm
Dimension L1 13 mm
Dimension L2 46 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland yes
Flat cable/width, max. 30 mm
Flat cable/width, min. 27 mm
Flat cables/thickness, max. 6 mm
Flat cables/thickness, min. 4 mm
For Ex zone Without
Impact-resistant no
Material Polyethylene
Protection rating IP31
Sealing insert, multiple no
Strain relief option no
Thread M32
Thread type Metric
Type of seal Sealing ring
Version for Straight
With locknut no
All types

All types

Types Flat cable/width, min. Flat cable/width, max. Flat cables/thickness, min. Flat cables/thickness, max. Thread Item no. Quantity SSU
106 FL M32 6 30 27 mm 30 mm 4 mm 6 mm M32 2013015
15 piece
106 FL M32 8 33 30 mm 33 mm 6 mm 8 mm M32 2013016
15 piece
106 FL M32 9 22 19 mm 22 mm 7 mm 9 mm M32 2013017
15 piece
106 FL M32 9 39 36 mm 39 mm 7 mm 9 mm M32 2013018
15 piece
106 FL M32 10 29 26 mm 29 mm 8 mm 10 mm M32 2013019
15 piece
106 FL M32 10 31 28.5 mm 31.5 mm 8.5 mm 10.5 mm M32 2013020
15 piece
106 FL M32 12 35 31 mm 35 mm 9 mm 12 mm M32 2013021
15 piece
106 FL M32 14 40 37 mm 40 mm 11 mm 14 mm M32 2013022
15 piece
