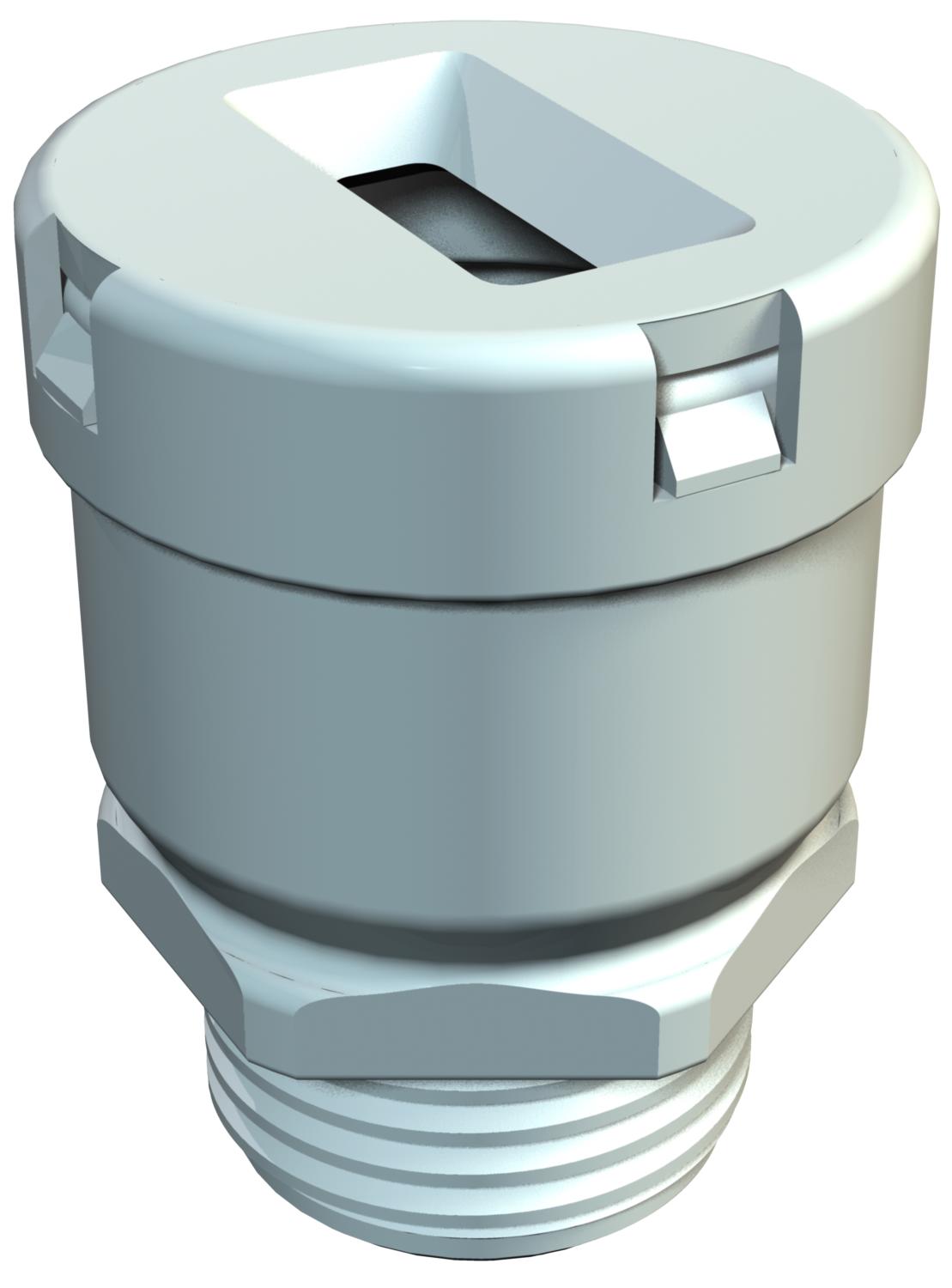

Flat cable threaded connection, PG thread Pg 16, stone grey

Item no. 2012758 | EAN 4012195156734

2012758 / 106 FL 16 8 19
17 mm
19 mm
6 mm
8 mm
Pg 16
Product description
Product description
Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 31
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Stone grey; RAL 7030
Dimension PG16

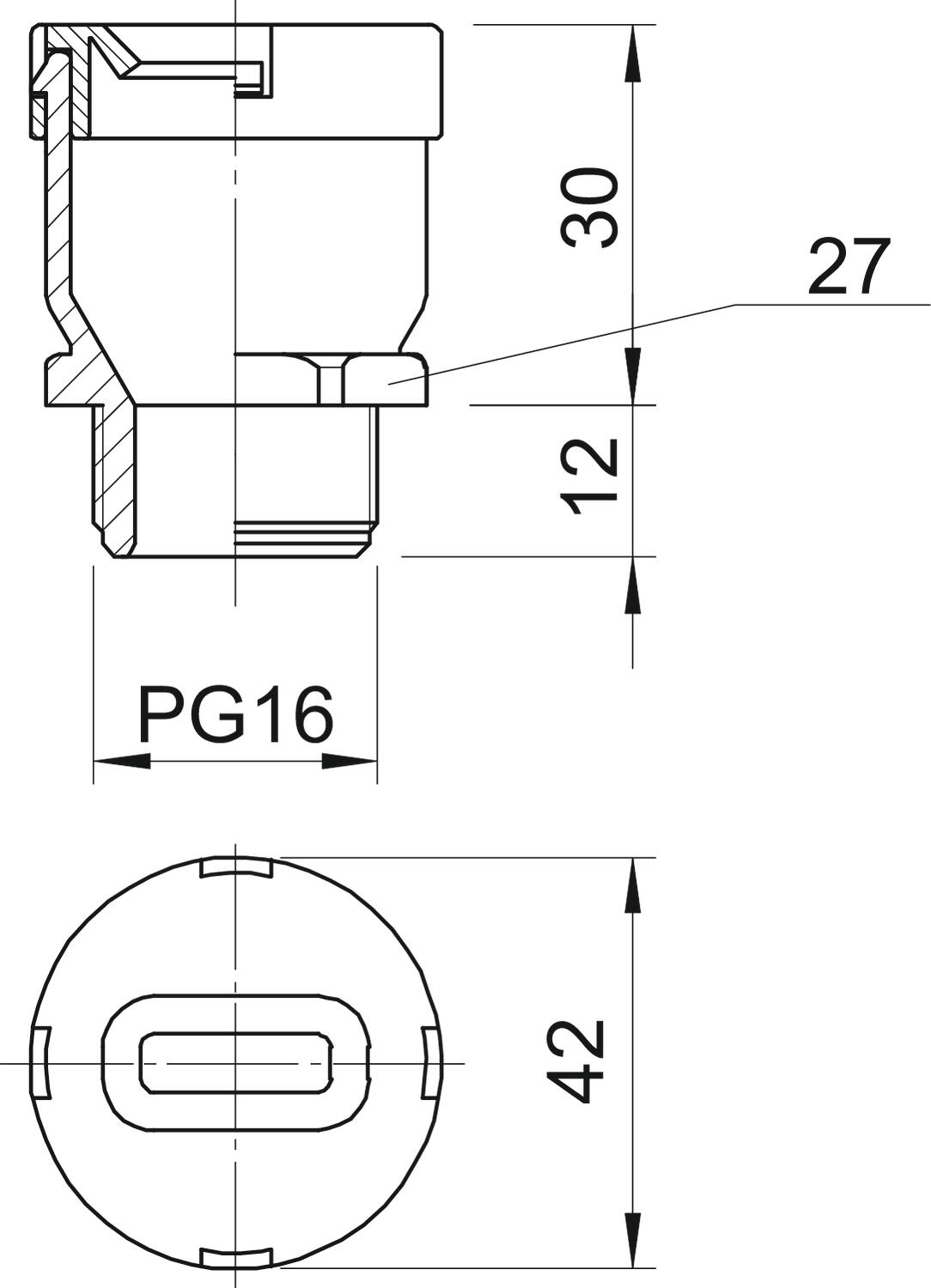

Dimension D 32,5 mm
Dimension G PG16 mm
Dimension L 42 mm
Dimension L1 12 mm
Dimension L2 30 mm
Fibre-glass reinforced no
Flat cable gland yes
Flat cable/width, max. 19 mm
Flat cable/width, min. 17 mm
Flat cables/thickness, max. 8 mm
Flat cables/thickness, min. 6 mm
For Ex zone Without
Impact-resistant no
Material Polyethylene
Protection rating IP31
Sealing insert, multiple no
Strain relief option no
Thread Pg 16
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 27
With locknut no
All types

All types

Types Flat cable/width, min. Flat cable/width, max. Flat cables/thickness, min. Flat cables/thickness, max. Thread Item no. Quantity SSU
106 FL 16 8 19 17 mm 19 mm 6 mm 8 mm Pg 16 2012758
50 piece
