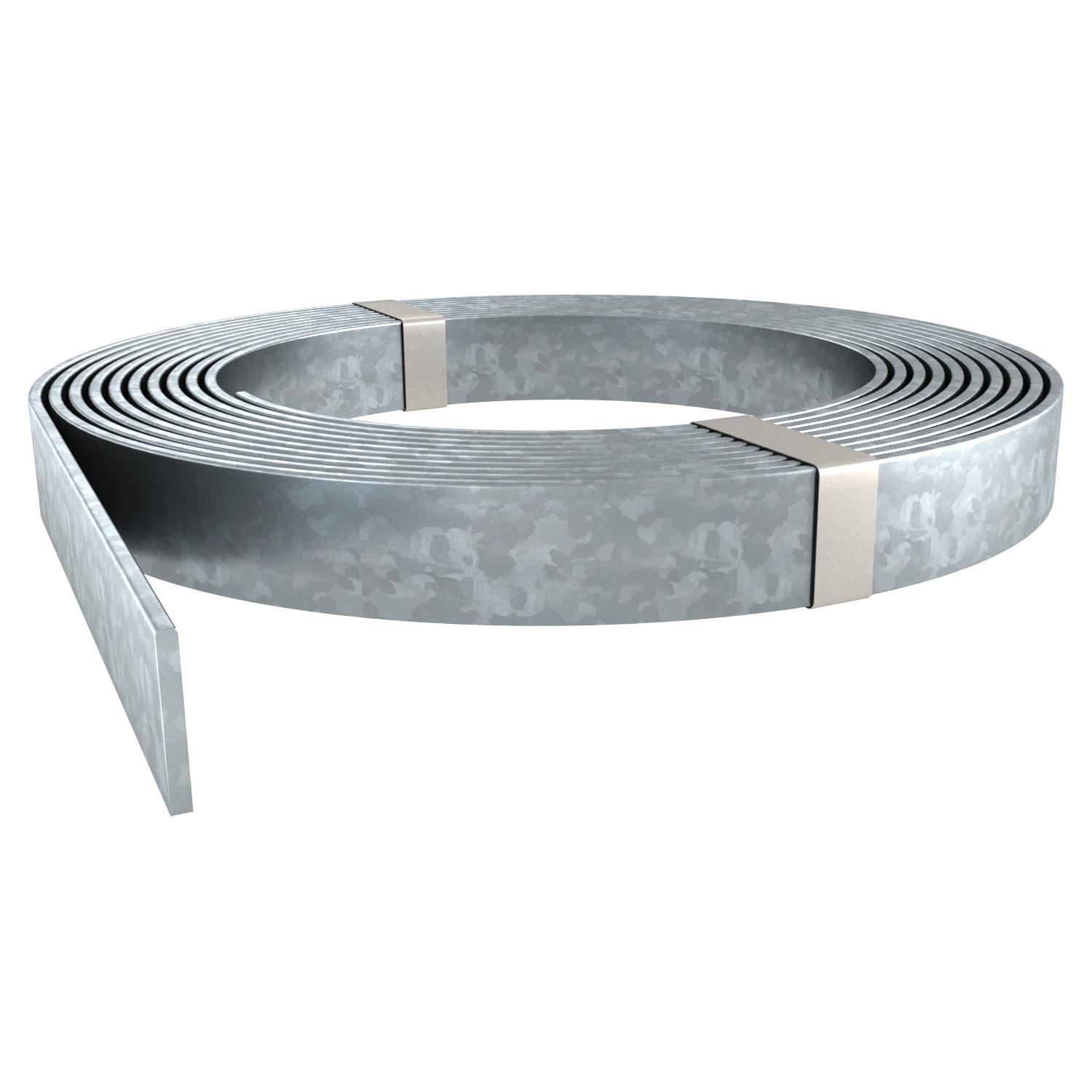

Flat conductor, galvanised steel

Item no. 5019355 | EAN 4012195680505

Item no. / Types

Width

Height

Product description

Product description

• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding

Technical data

Technical data

Cross-section	160 mm²

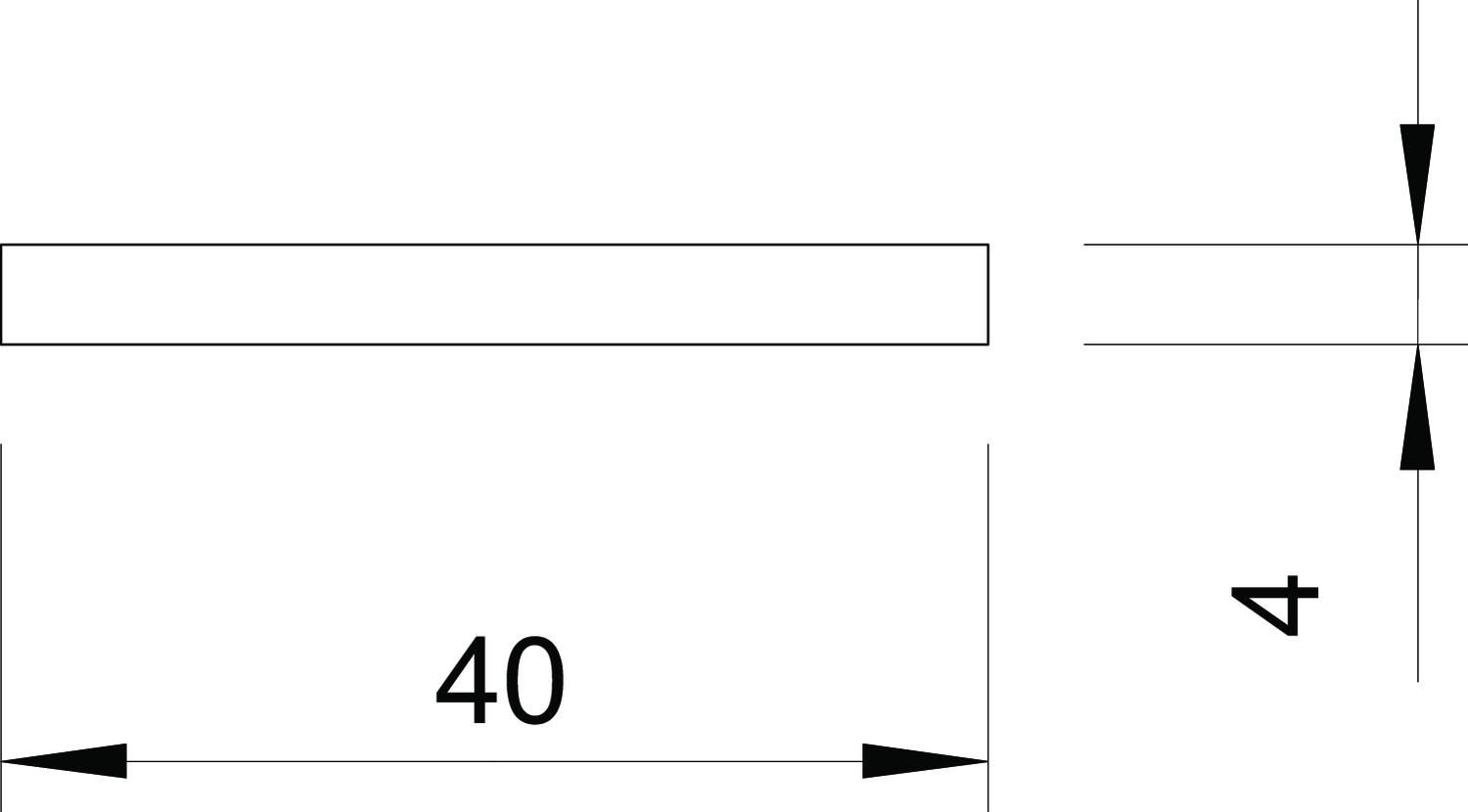

Dimension	40x4mm
Dimension B	40 mm
Dimension H	4 mm
Height	4 mm
Length tolerance ±	5 %

Material	Steel
Nomal ring (approx. m)	40
Normal ring (ca. kg)	51
Surface	Hot-dip galvanised
Width	40 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
5052 DIN 25X3	25 mm	3 mm	5019342	m	84 m
5052 DIN 30X3	30 mm	3 mm	5019344	m	71 m
5052 DIN 30X3.5	30 mm	3.5 mm	5019345	m	30 m
5052 DIN 30X3.5	30 mm	3.5 mm	5019347	m	60 m
5052 DIN 30X4	30 mm	4 mm	5019350	m	52 m
5052 DIN 40X4	40 mm	4 mm	5019355	m	40 m
5052 DIN 40X5	40 mm	5 mm	5019360	m	30 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

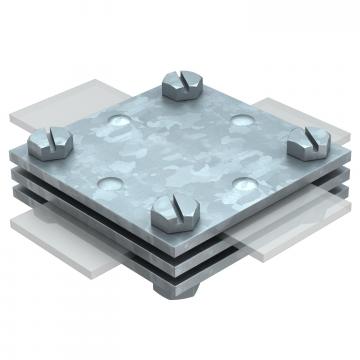

DIN cross-connector for flat conductor, with intermediate plate	256 DIN 40 FT	5314623	piece	10 piece
DIN cross-connector for flat conductor	256 A-DIN 40 FT	5314666	piece	10 piece
