- Product description
-

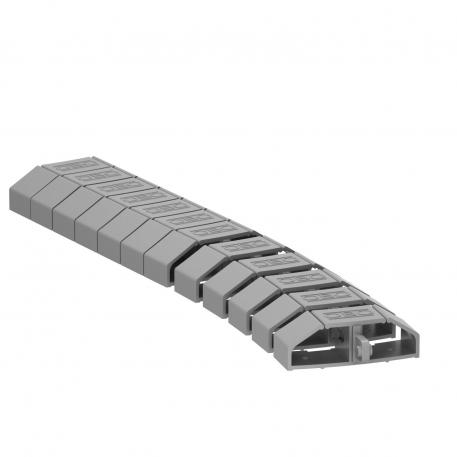

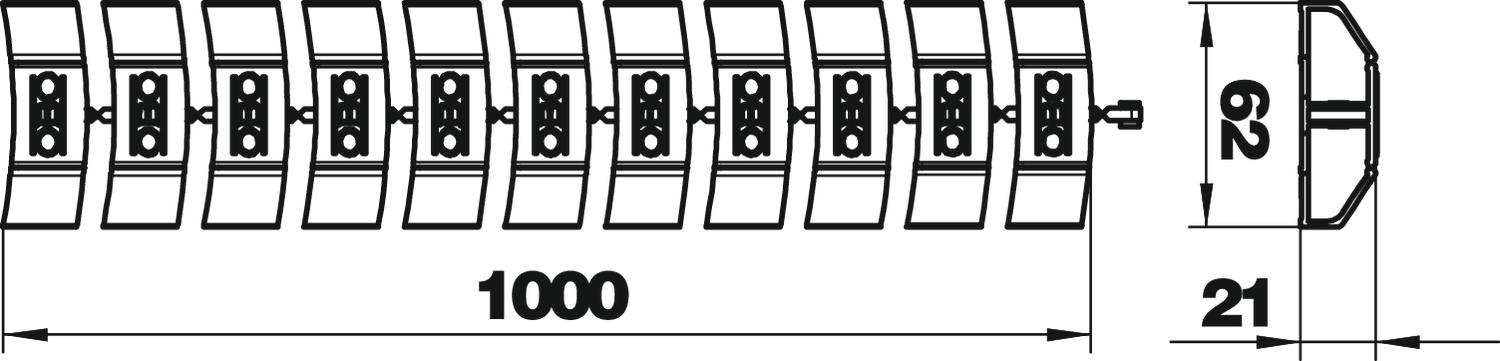

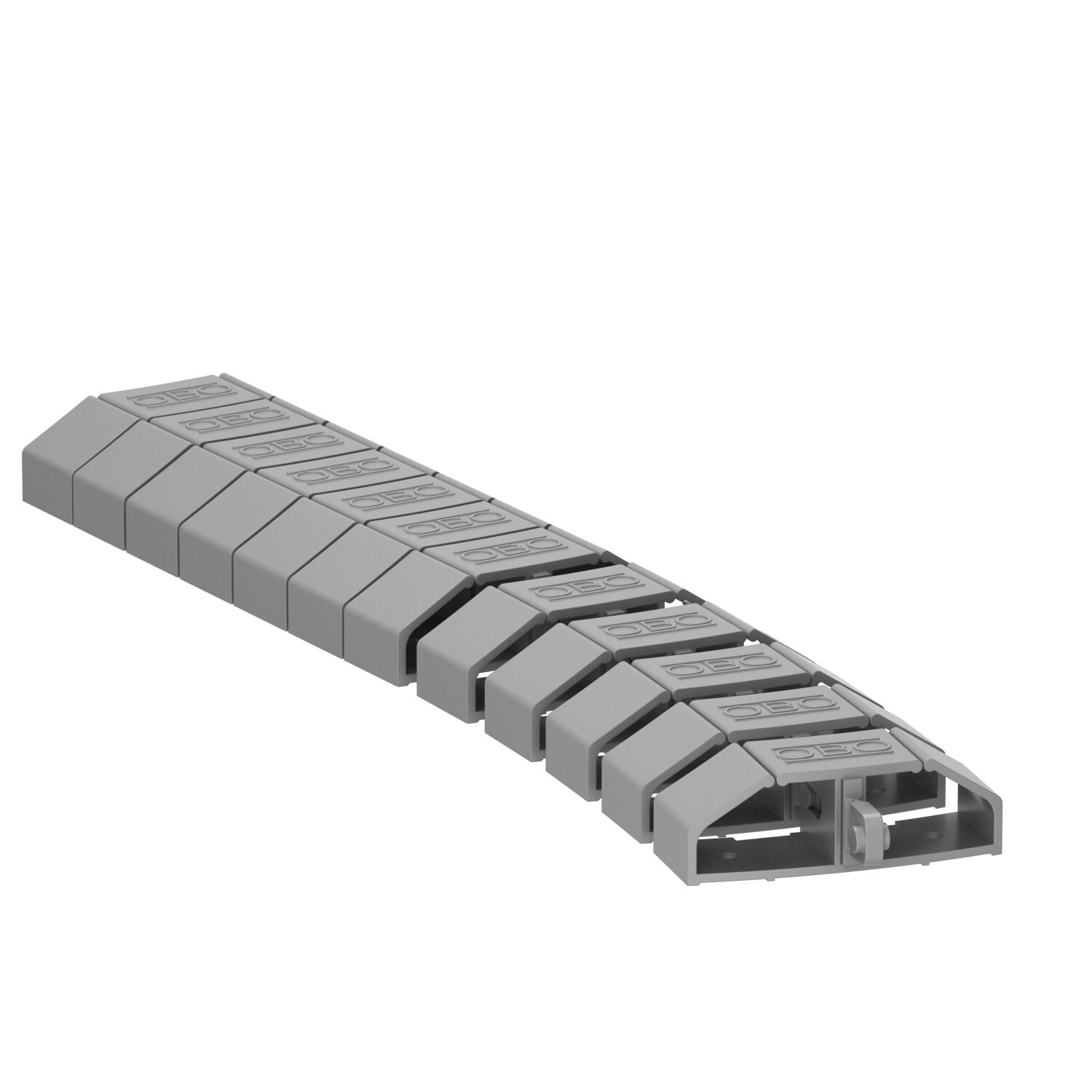

Product descriptionThe Flexkanal runs your cables ordered and protected to the desk. It connects the Deskbox with the dado trunking or with the floor connection box. When extended, the Flexkanal is 1,000 mm long, 60 mm wide and 20 mm high.
The trunking consists of two chambers, capacity per chamber:
two cables of 8.5 mm diameter or three cables of 7.5 mm diameter or
four cables of 7.0 mm diameter or five cables of 6.0 mm diameter.
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 1000mm Length 1000 mm - All types
- Downloads
-
Data sheet FLK-2K LGR / 6154922 , 0.12MB , pdfCatalogue Installation systems , 28.45MB , pdf
