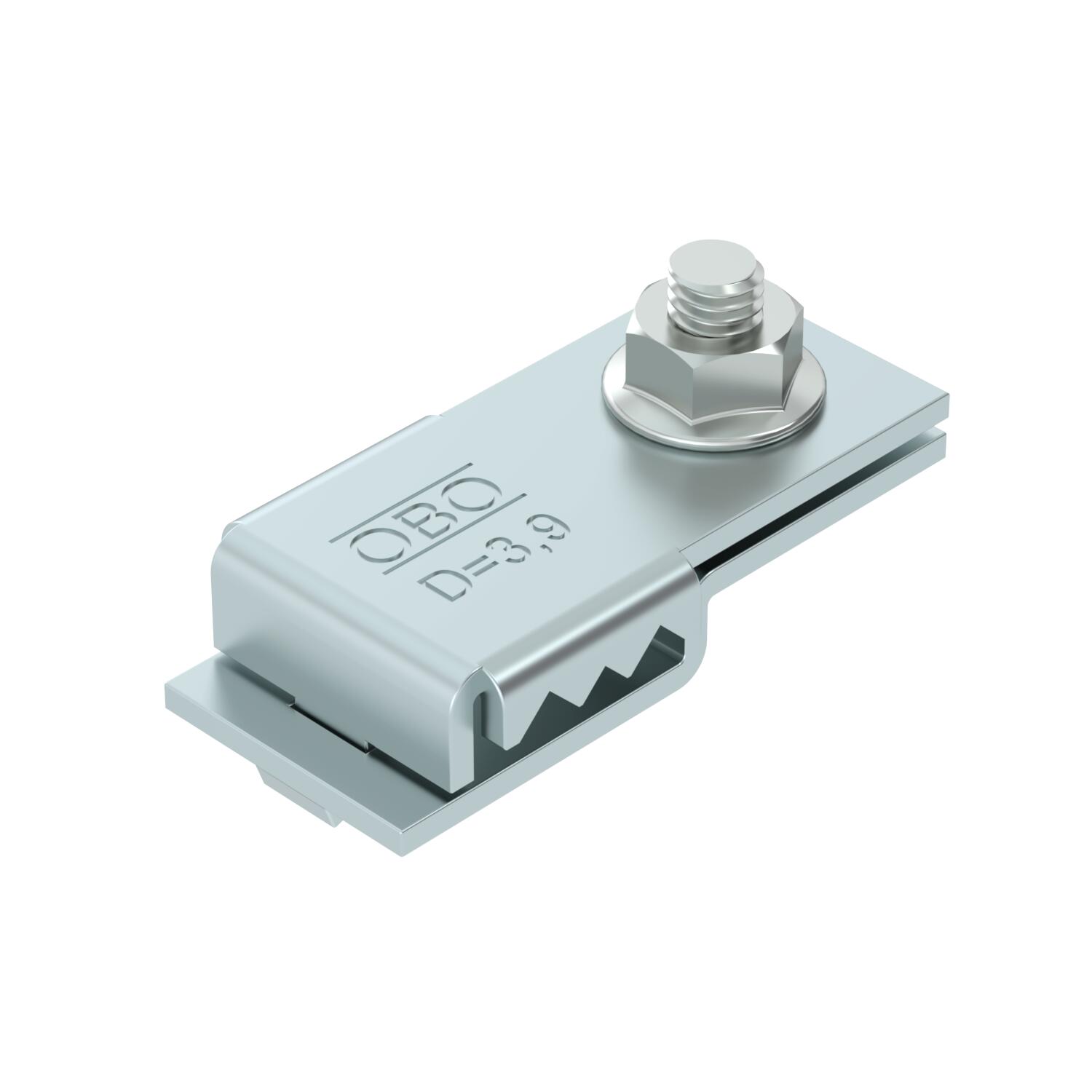

Grounding clamp FS
Item no. 6016694 | EAN 4012195304111
- Product description
-
Product descriptionThe connection and earthing terminal is used to reduce electrical resistance and therefore improves the electric conductivity in GRM mesh cable systems in the area of the joint. This allows fulfilment of the high demands in terms of the transition resistance according to, for example, NEMA and CSA. Furthermore, the connection and earthing terminal is compulsory when used as a protective conductor in a mesh cable tray system (national regulations have to be followed when creating such a system).
-
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 0,159 kg CO₂e / 1 Piece Dimension 42x19x11 Height 11 mm Material Steel Suitable for cable tray system height 11 mm Suitable for mesh cable tray wire, max. 3,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Strip galvanized - All types
- Downloads
-
Data sheet VEK-GRM 3.9 FS / 6016694 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity VEK-GRM 3.9 FS / 6016694 , 0.10MB , pdfUK Declaration of Conformity VEK-GRM 3.9 FS / 6016694 , 0.14MB , pdfREACH Declaration of conformity VEK-GRM 3.9 FS / 6016694 , 0.12MB , pdfRoHS Declaration of conformity VEK-GRM 3.9 FS / 6016694 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
