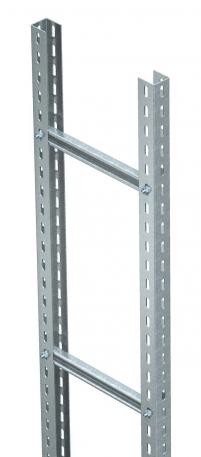

Heavy-duty vertical cable ladder SLM 50, 3 m C40
Item no. 6010547 | EAN 4012196168613
- Product description
-
Product descriptionThe vertical ladder with a 50 mm side height is shipped in an unmounted state and must be screwed together on the construction site.
-
- Technical data
-
Technical data

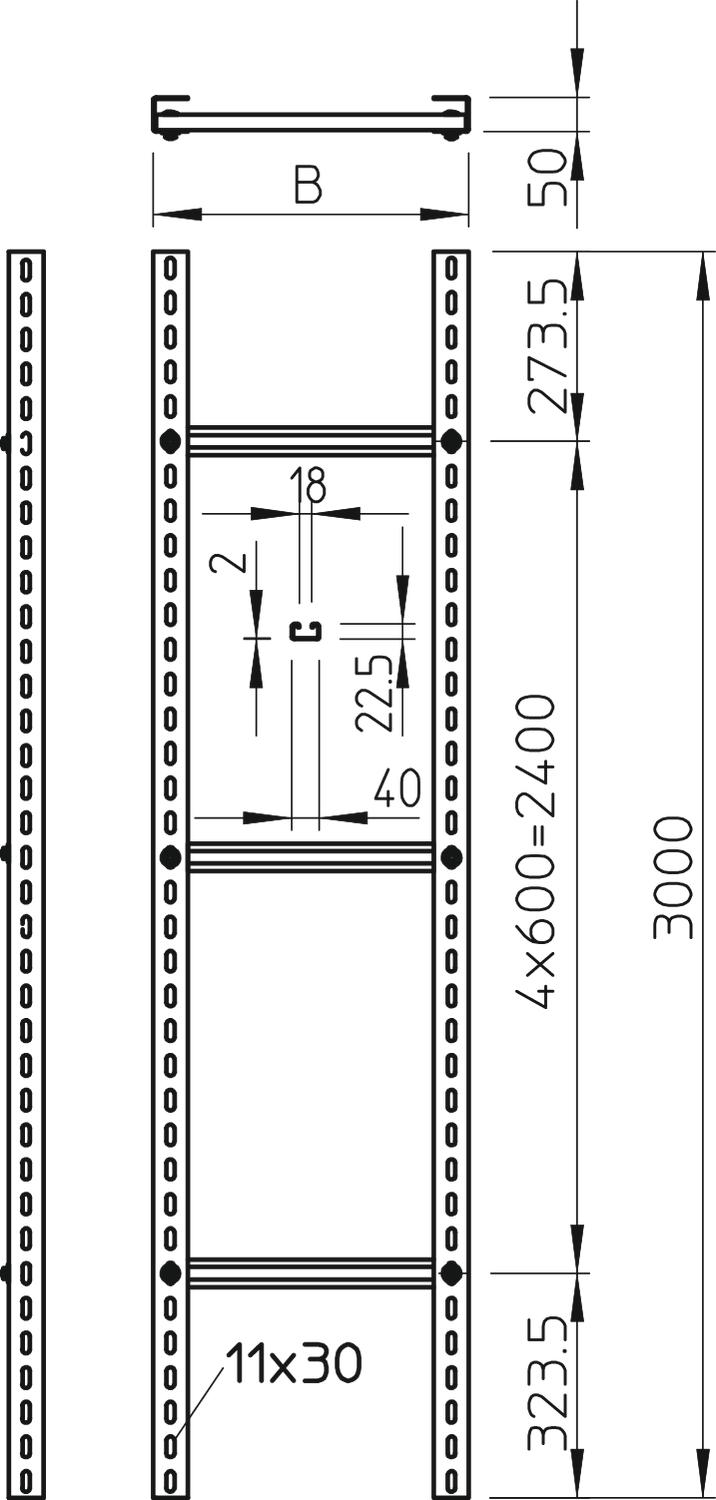

Colour zinc Dimension 1000x3000 Dimension B 1000 mm Height 50 mm Length 3000 mm Maintain electrical functions no Material Steel Rail thickness 2,5 mm Rung distance 600 mm Rung slot dimension 18,00 Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Version of the rungs Profile unperforated Width 1000 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

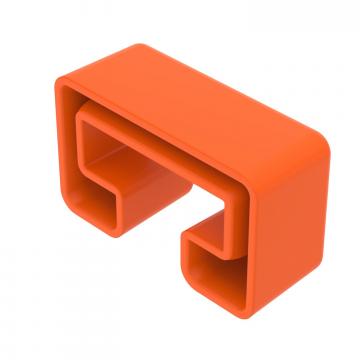

End cap MS4022
MS4022 SK 1124555 25 piece
U support connector FT
VUS 5 FT 6018505 10 piece - Downloads
-
Data sheet SLM 50 C40 10 FT / 6010547 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SLM 50 C40 10 FT / 6010547 , 0.10MB , pdfREACH Declaration of conformity SLM 50 C40 10 FT / 6010547 , 0.12MB , pdfRoHS Declaration of conformity SLM 50 C40 10 FT / 6010547 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
