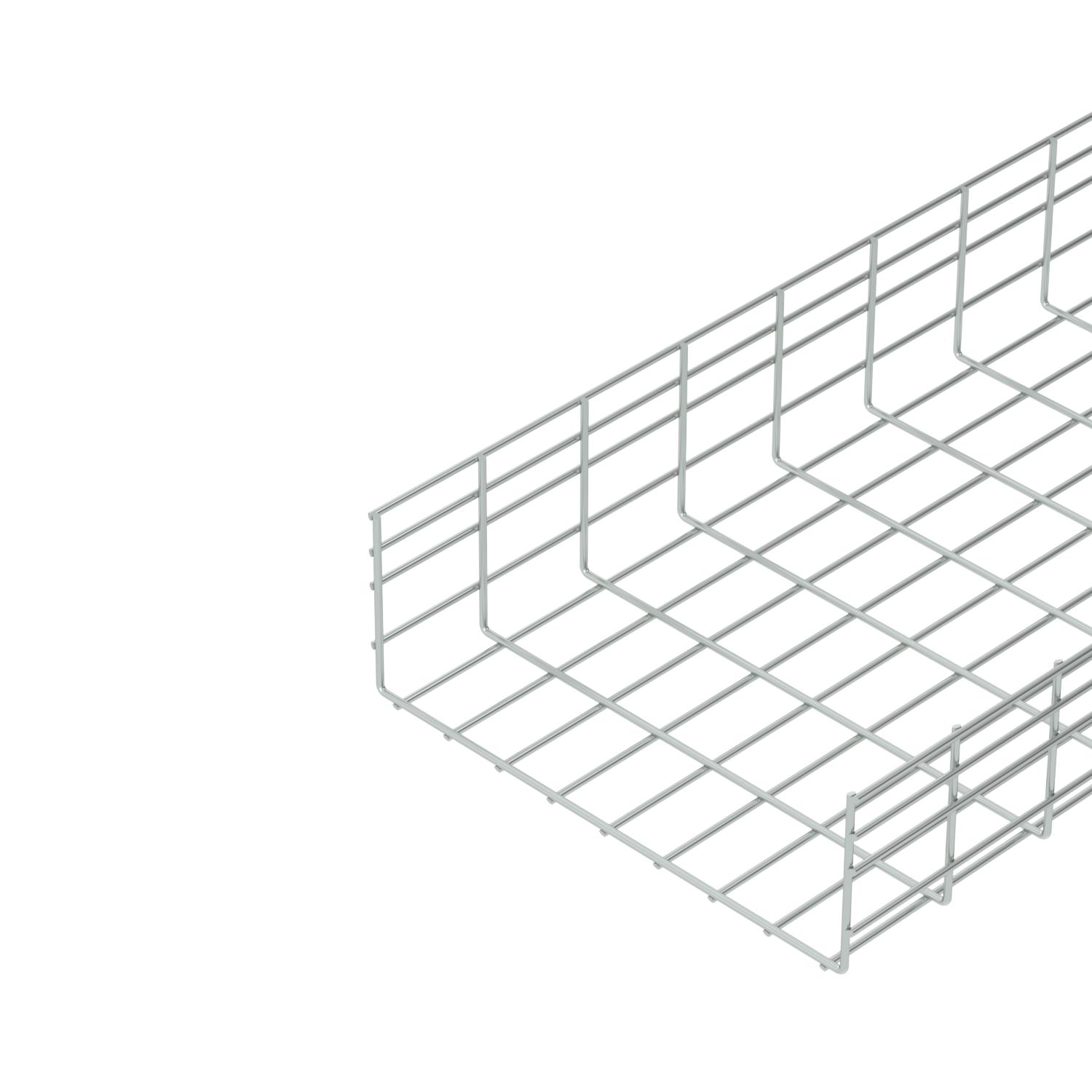

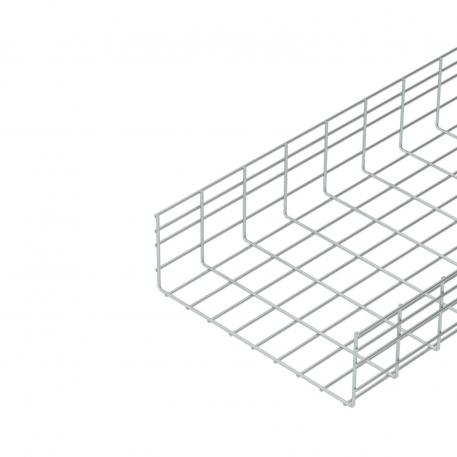

Heavy mesh cable tray SGR 155 G

Item no. 6003684 | EAN 4012195380160

3000 mm
155 mm
6 mm
no
Product description

Product description

Mesh cable tray made of spot-welded steel wire of side height 155 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.
  • Underwriters Laboratories Inc., USA
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Without connectors

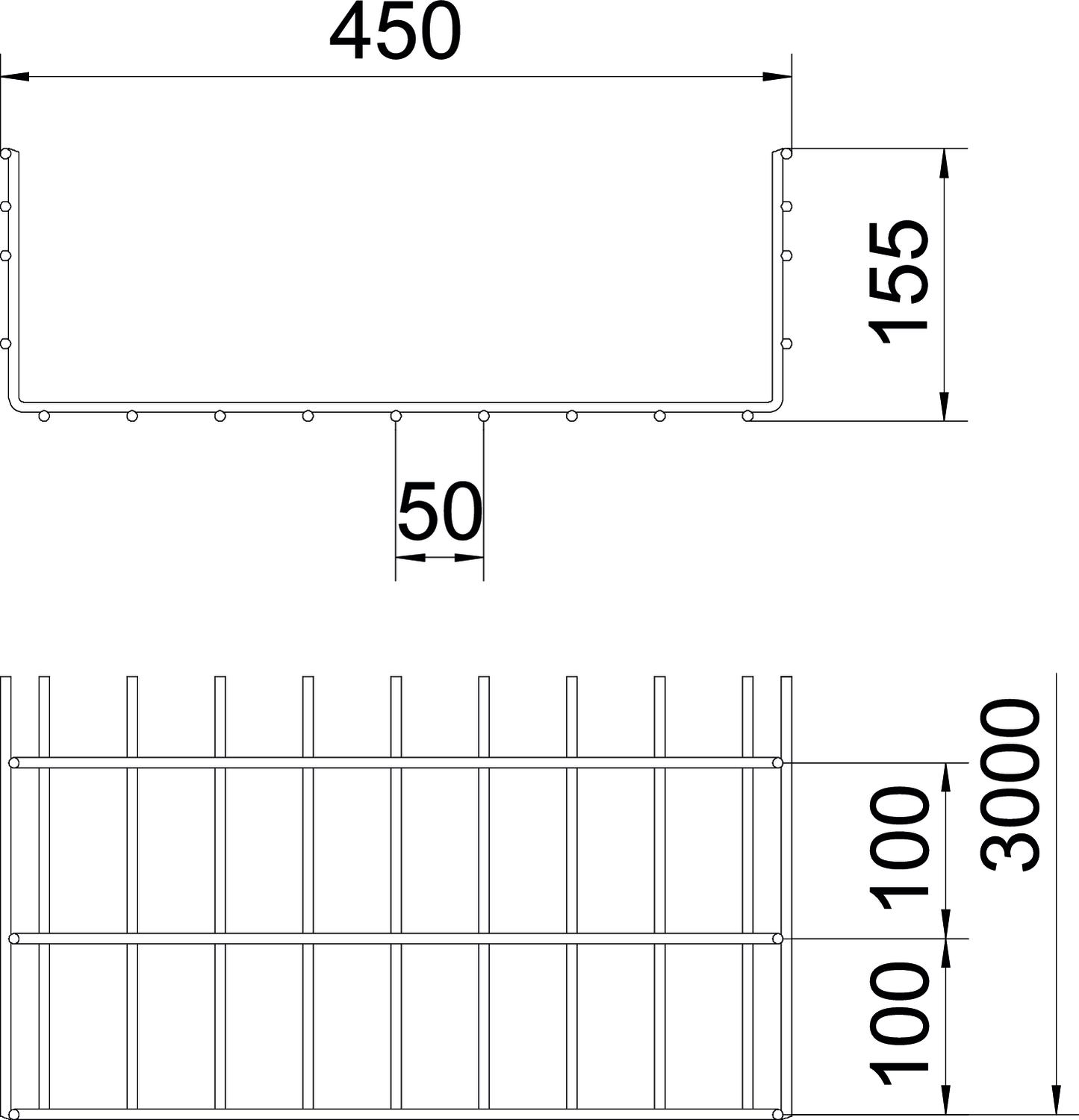

Dimension 155x450x3000
Dimension B 450 mm
Height 155 mm
Height 6,1 in
Integrated partition Without
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Profile shape U-shaped
Rustproof steel, pickled no
Screwless connector no
Support spacing 1.0 m 4,1 kN/m
Support spacing 1.5 m 2,5 kN/m
Support spacing 2.0 m 1,6 kN/m
Support spacing 2.5 m 1,15 kN/m
Support spacing 3.0 m 0,95 kN/m
Support spacing 3.5 m 0,83 kN/m
Support spacing 4.0 m 0,6 kN/m
Surface Electrogalvanized
Type of connector, cable support system Screwed
Usable cross-section 663 cm²
Usable cross-section 66300 mm²
Wide-span version no
Width 17,72 in
Width 450 mm
Wire diameter 6 mm

Technical data

Load diagram, mesh cable tray, type SGR 155

Load diagram, mesh cable tray, type SGR 155
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
SGR 155 300 G 3000 mm 300 mm 155 mm 6 mm 438 cm² no 6003681
3 m
SGR 155 450 G 3000 mm 450 mm 155 mm 6 mm 663 cm² no 6003684
3 m
SGR 155 500 G 3000 mm 500 mm 155 mm 6 mm 738 cm² no 6003685
3 m
SGR 155 600 G 3000 mm 600 mm 155 mm 6 mm 888 cm² no 6003687
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Joint connector G Joint connector G GUV 6 G 6016572
20 piece

Mounting accessories

Products Types Item no. Quantity SSU
End cap End cap SGR KS OR 6003758
500 piece
Separating retainer 135 FS Separating retainer 135 FS TSG 135 FS 6062132
3 m
Drop-out FS Drop-out FS KAB GR FS 6220139
10 piece
