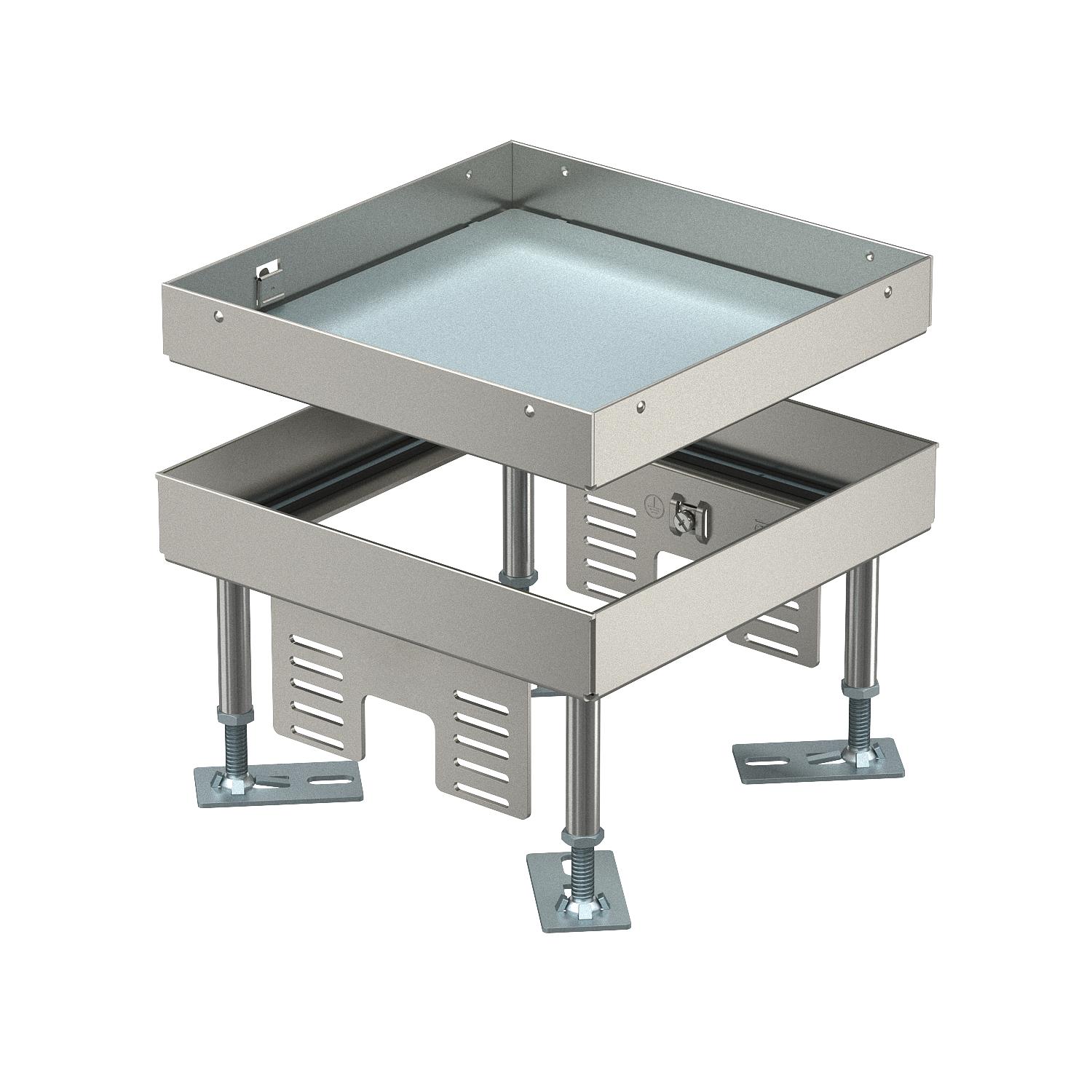

Height-adjustable cassette for inspection opening, RKN, stainless steel
Item no. 7408954 | EAN 4012197278120
- Product description
-
Product description
"Blank" height-adjustable cassette for the creation of an inspection opening of nominal size 4. Installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors. Only suitable for smooth floor coverings. Protection class: IP X5.
For the installation of two UT3 universal supports for four single devices with support ring/support clamp or six Modul 45® devices. 2 APMT2 cover plates can be installed.
-
- Technical data
-
Technical data

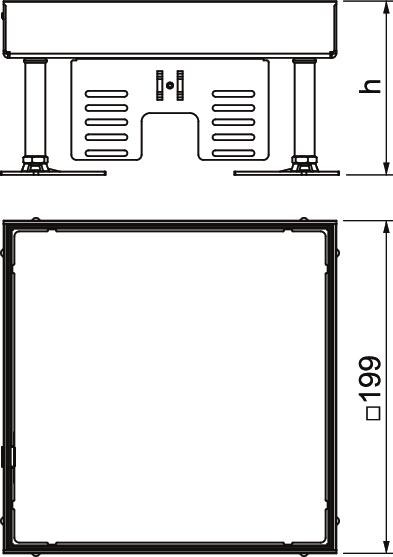

Approvals VDE Cable outlet version No cable outlet Decouplable no Device support to accept mounting boxes no Dimension 199x199x105 Dimension h 110 mm Floor care Wet Floor covering thickness 25 mm Floor height, max. 155 mm Floor height, min. 110 mm Heavy-duty version no Height 110 mm Height-adjustment range, max. 155 mm Height-adjustment range, min. 110 mm Installation depth 110 mm Installation system type UT3 Length 199 mm Length of installation dimensions 201 mm Material Stainless steel Nominal size for device installation units 4 Number of universal supports 2 x UT3 Protection rating (IP) when unused IP55 Protection rating (IP) when used IP00 Protection rating IK code IK10 Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Square Vertical load, large area to 15,000 N Vertical load, small area to 3,000 N Wide installation dimensions 201 mm Width 199 mm - All types
- Downloads
-
Data sheet RKN3 4 VS 25 / 7408954 , 0.18MB , pdfNo invitation to tender text is available for this product.
