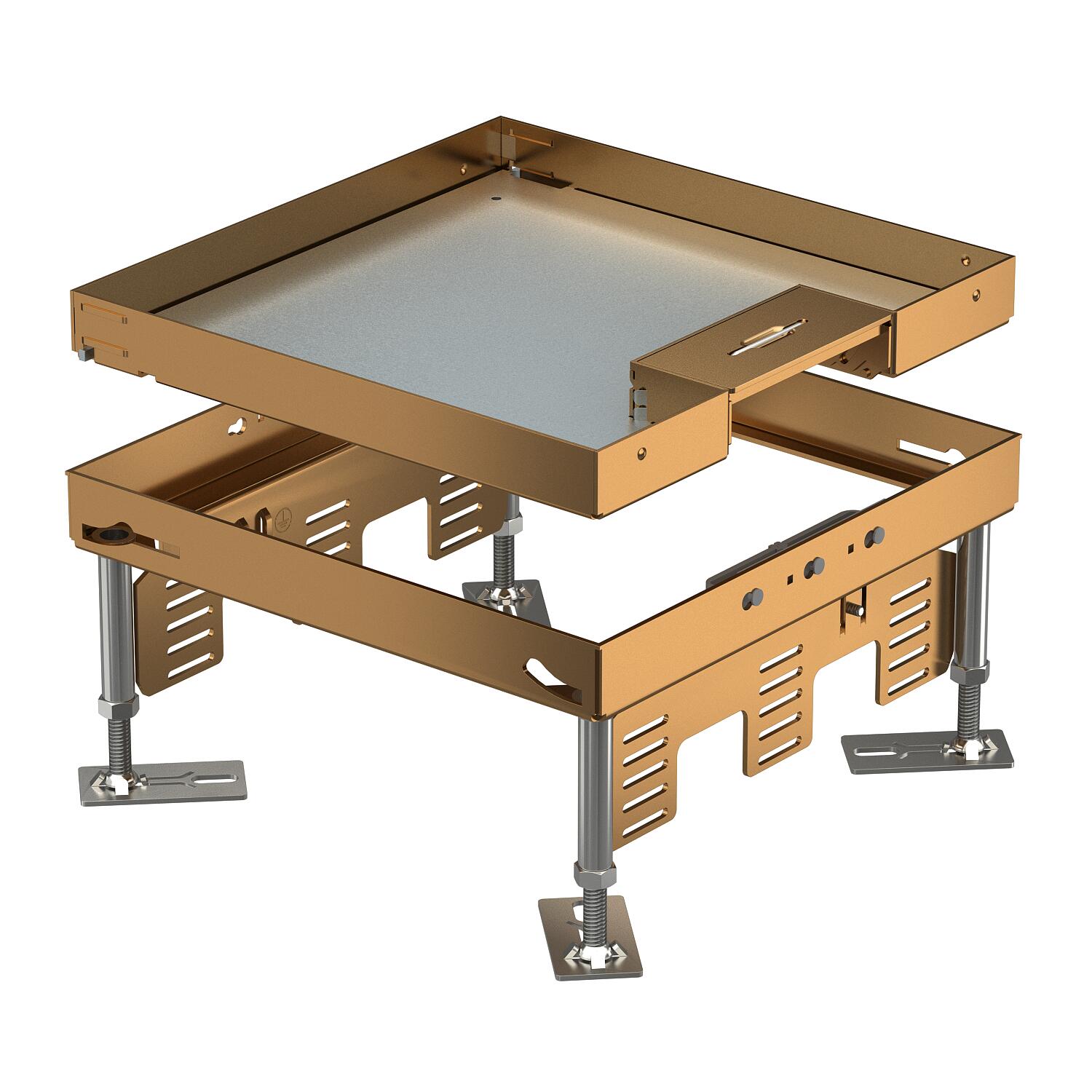

Height-adjustable cassette with cord outlet, RKSN, brass
Item no. 7409214 | EAN 4012195867180
- Product description
-
Product descriptionHeight-adjustable cassette of nominal size 9 with cord outlet, for the installation of accessories in dry-cleaned floors indoors.
For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.
-
- Technical data
-
Technical data

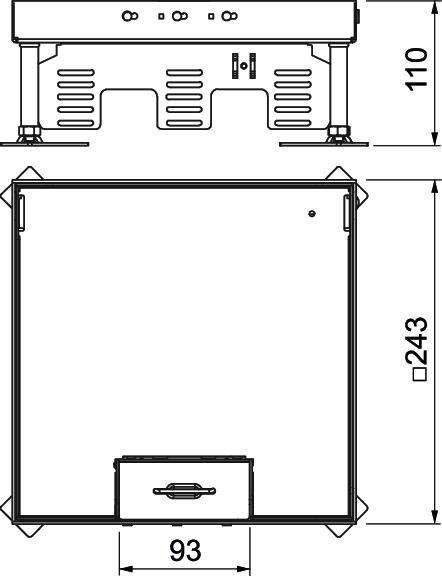

Approvals VDE Cable outlet version Swivellable cord outlet Decouplable no Device support to accept mounting boxes yes Dimension 243x243mm Dimension h 110 mm Floor care Dry Floor covering thickness 25 mm Floor height, max. 155 mm Floor height, min. 110 mm Heavy-duty version no Height-adjustment range, max. 155 mm Height-adjustment range, min. 110 mm Installation depth 110 mm Installation system type UT4 Length 243 mm Length of installation dimensions 244 mm Material Brass Nominal size 350 mm Nominal size for device installation units 9 Number of cable outlets 1 Number of installable devices 12 Number of mounting boxes 3 Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes Version for Square Vertical load, large area to 10,000 N Vertical load, small area to 3,000 N Wide installation dimensions 244 mm Width 243 mm - All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Height adjustment unit RKNEV2
RK NEV2 110 7405815 1 PU
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm
UT4 45 4 7408727 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Suction lifter, 300 N
WZ 1029 7408634 1 piece - Downloads
-
Data sheet RKSN2 9 MS 25 / 7409214 , 0.20MB , pdfEU declaration of conformity RKSN2 9 MS 25 / 7409214 , 0.13MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfMounting instructions Square cassette with cord outlet and height adjustment feet RKSN , 0.25MB , pdfNo invitation to tender text is available for this product.
