Height adjustment unit for lid butt support, trunking height 40-70 mm 40 | 70
morepic-1 morepic-2

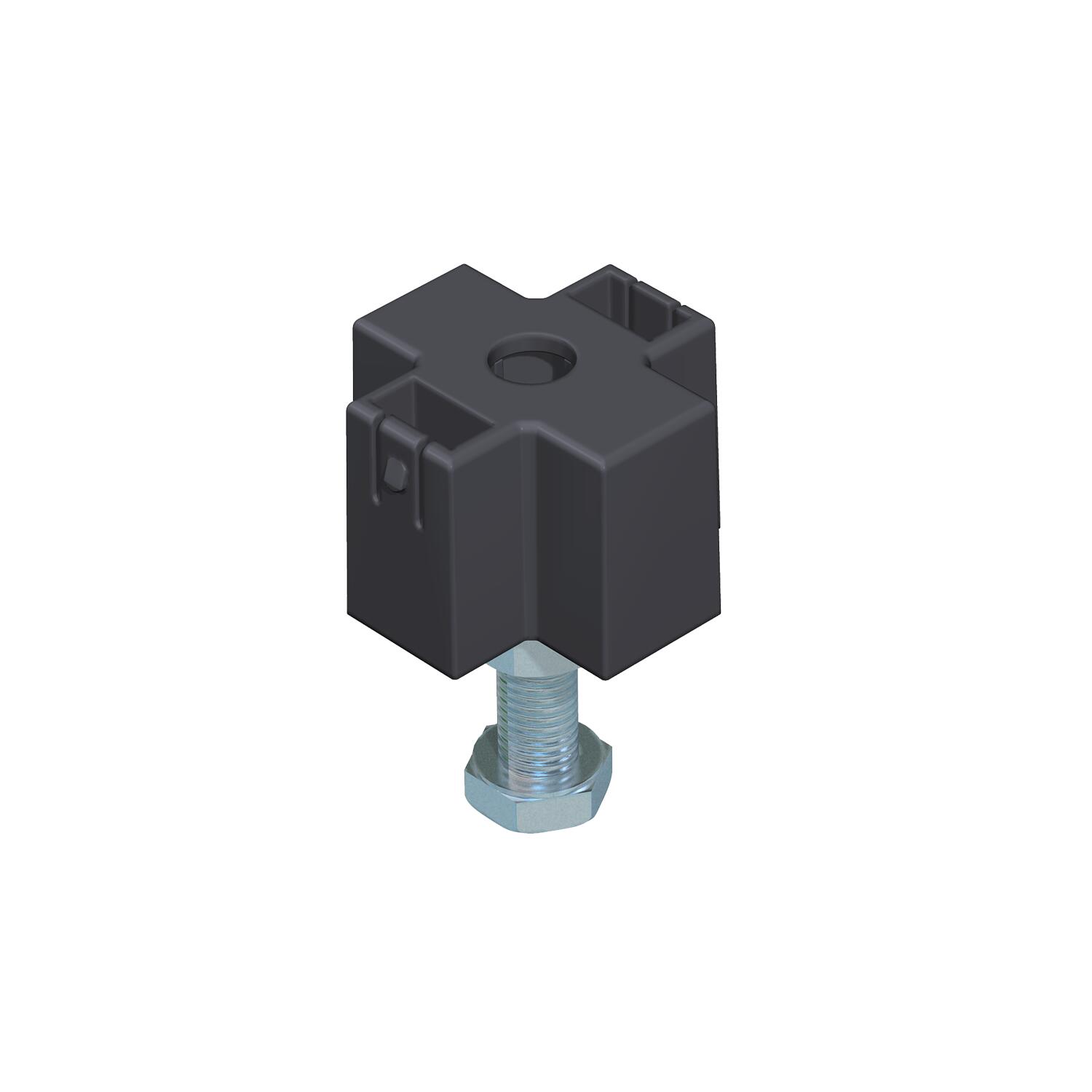

Height adjustment unit for lid butt support, trunking height 40-70 mm

Item no. 7424840 | EAN 4012195245117

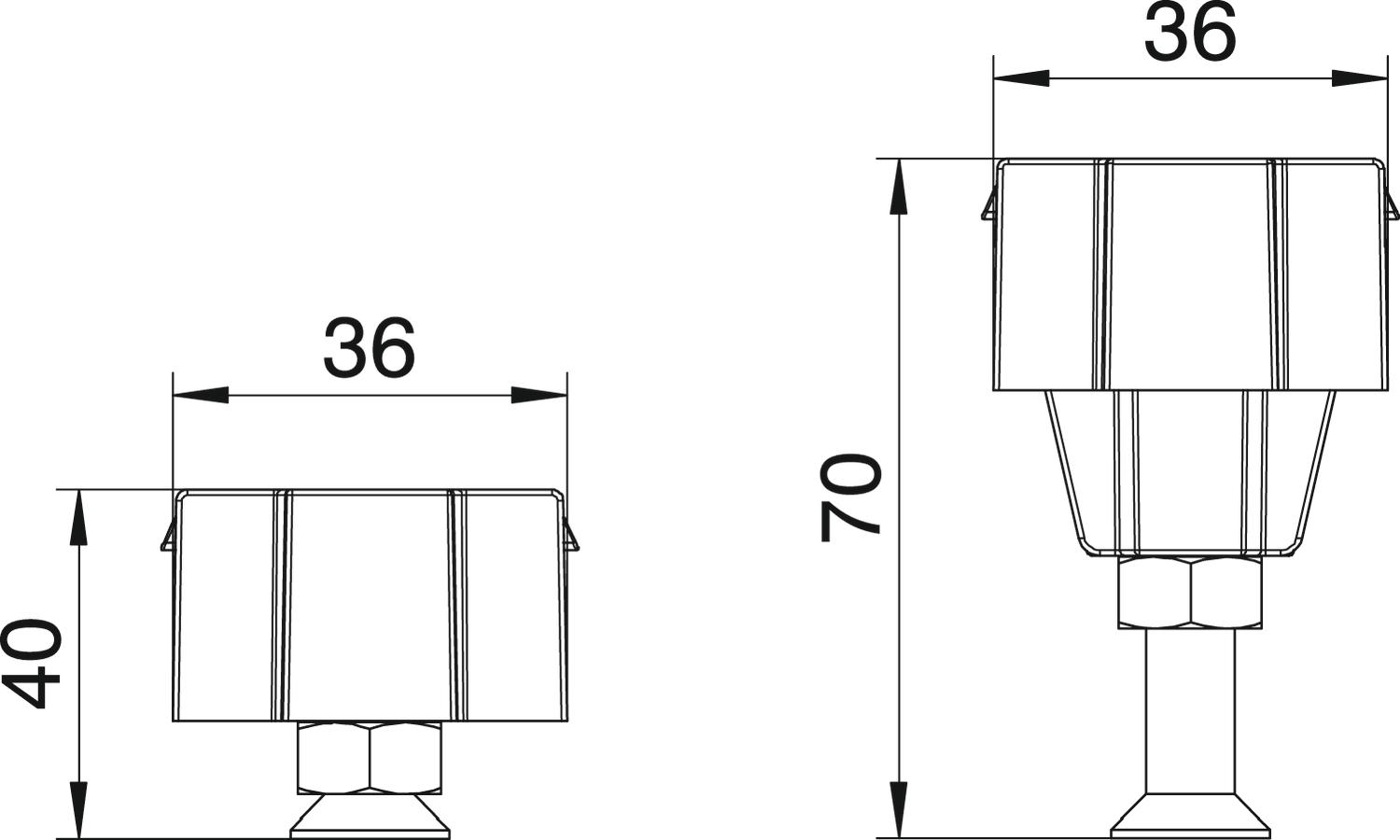

7424840 / NE DSU2 4030
40 mm
70 mm
Product description

Product description

For central support of a lid butt support of nominal width 400, 500 or 600.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Decouplable no
Device support to accept mounting boxes no
Duct height, min. 40 mm
Height-adjustment range, max. 70 mm
Height-adjustment range, min. 40 mm
Material Steel
Minimum screed height 40
Spare part no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking height, max. 70 mm
Width 35 mm
All types

All types

Types Height-adjustment range, min. Height-adjustment range, max. Item no. Quantity SSU
NE DSU2 4030 40 mm 70 mm 7424840
3 piece
Downloads

Download

Download

Declaration of conformity NE DSU2 4030 / 7424840 , 0.13MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
