Height adjustment unit RKNEV2

Item no. 7405815 | EAN 4012195891215

Item no. / Types

Height-adjustment range, min.

Height-adjustment range, max.

Product description

Product description

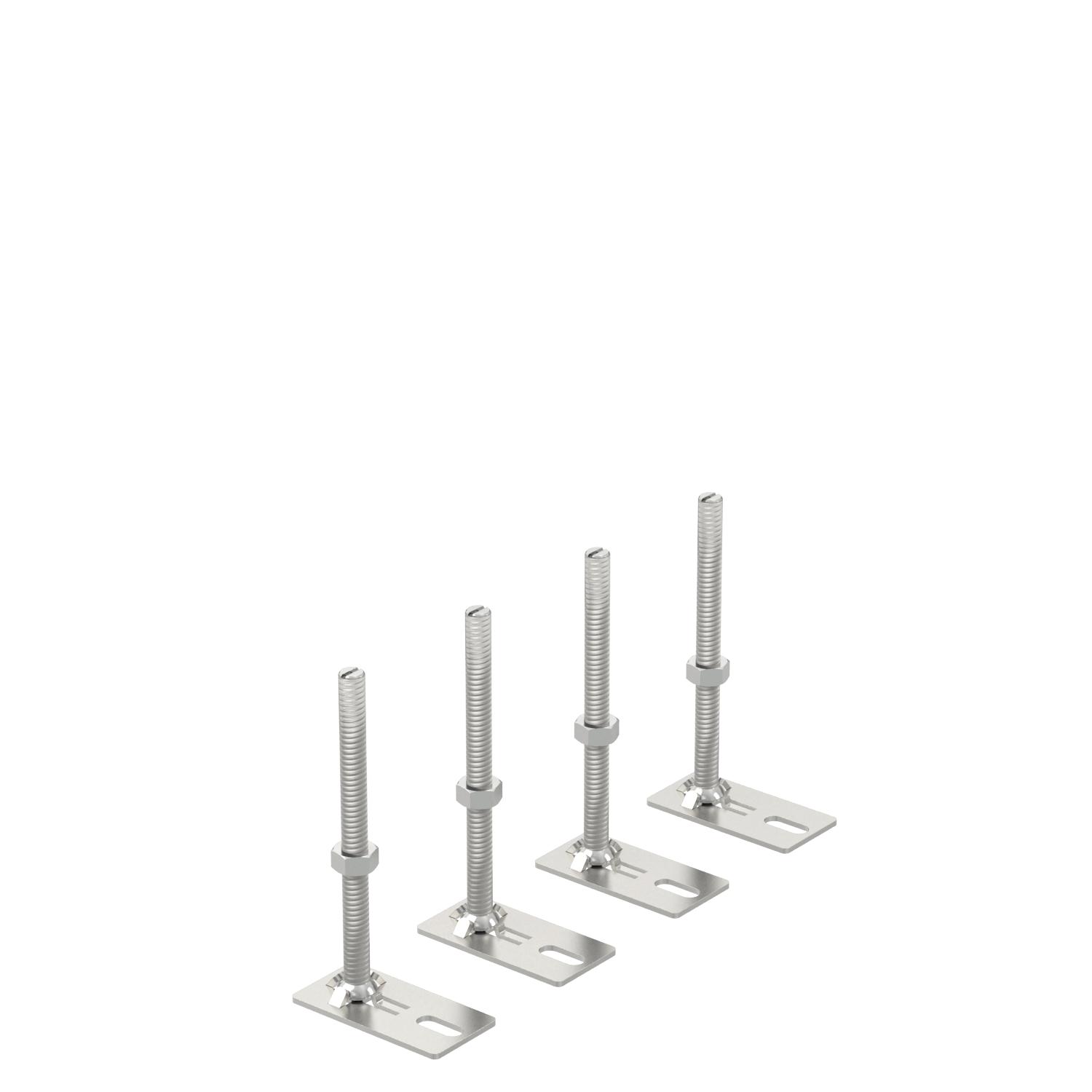

For flushfloor height adjustment of the height adjustable cassette units and the OKB screed-flush trunking system. The VPE consists of 4 height adjustment units.

Technical data

Technical data

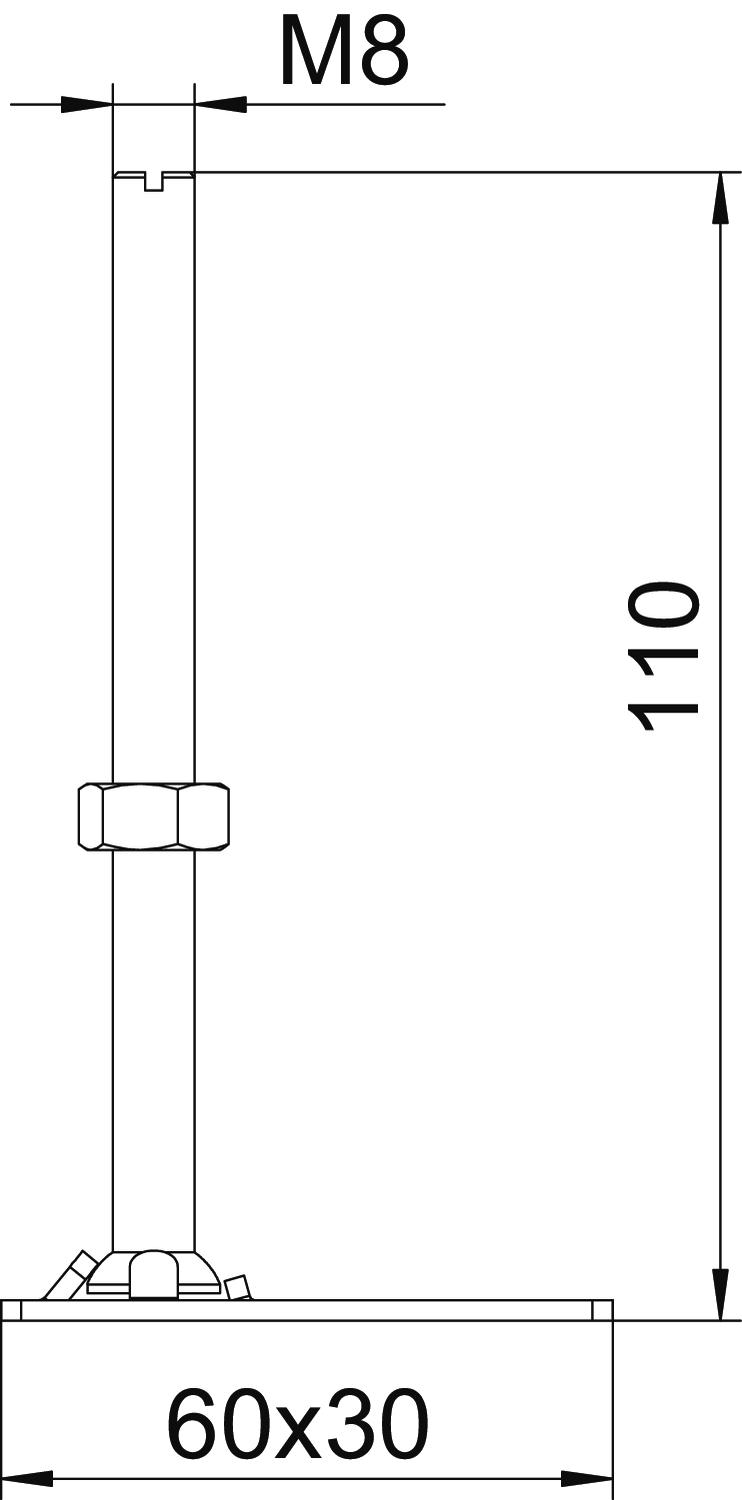

Dimension	M8x110mm
Dimension h	110 mm
Height-adjustment range, max.	190 mm
Height-adjustment range, min.	140 mm
Material	Steel

Material of the foot	Metal
Suitable for cassettes	yes
Suitable for ducts and trunking	yes
Surface	Electrogalvanized
With footfall sound insulation	no

All types

All types

Types	Height-adjustment range, min.	Height-adjustment range, max.	Item no.	Quantity	SSU
RK NEV2 70	100 mm	150 mm	7405814	PU	1 PU
RK NEV2 110	140 mm	190 mm	7405815	PU	1 PU
RK NEV2 150	180 mm	230 mm	7405816	PU	1 PU
RK NEV2 190	220 mm	270 mm	7405817	PU	1 PU
RK NEV2 230	260 mm	310 mm	7405818	PU	1 PU
RK NEV2 270	300 mm	355 mm	7405819	PU	1 PU
