Height adjustment unit RKNEV2
Item no. 7405819 | EAN 4012195891253
- Product description
-

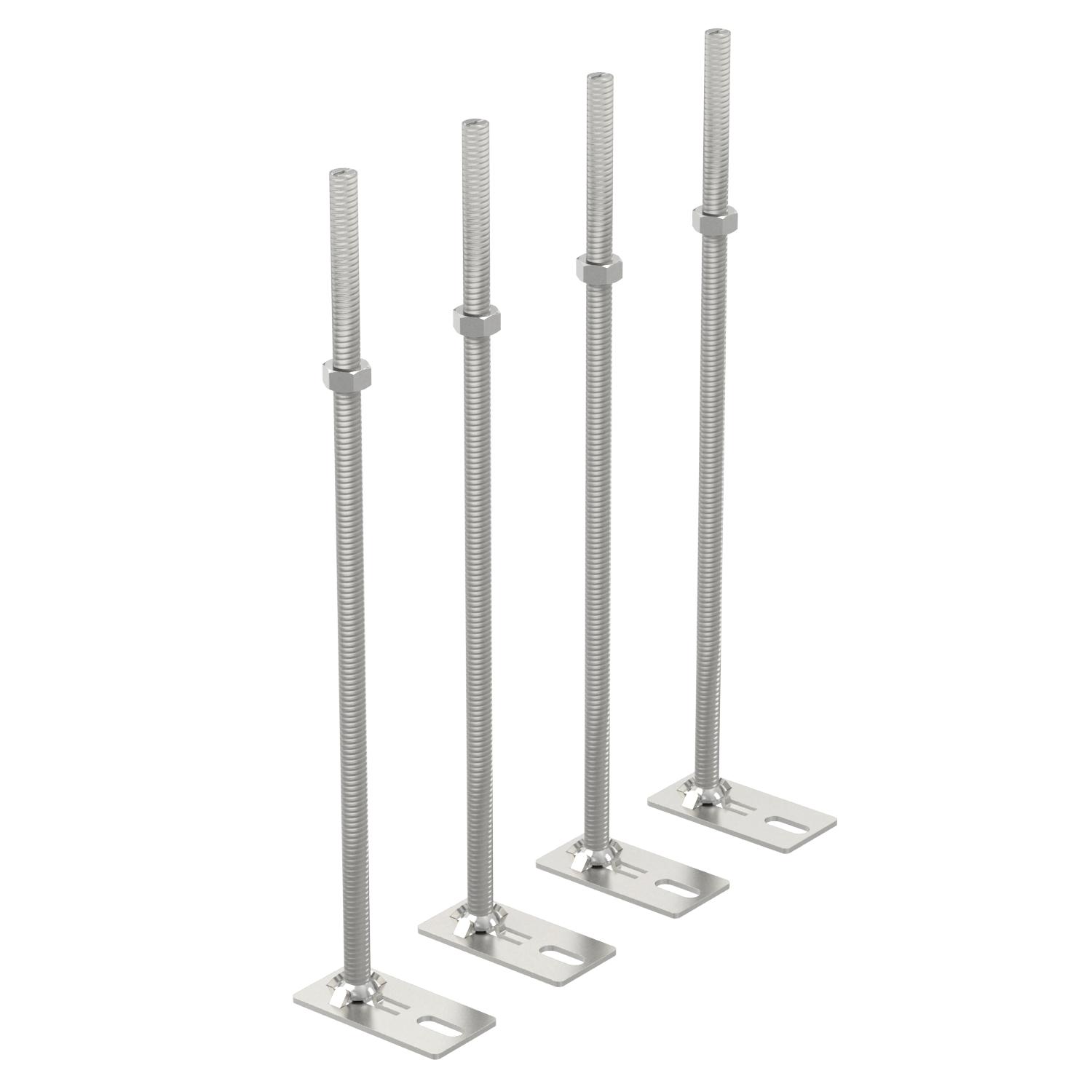

Product descriptionFor flushfloor height adjustment of the height adjustable cassette units and the OKB screed-flush trunking system. The VPE consists of 4 height adjustment units.
-
- Technical data
-
Technical data

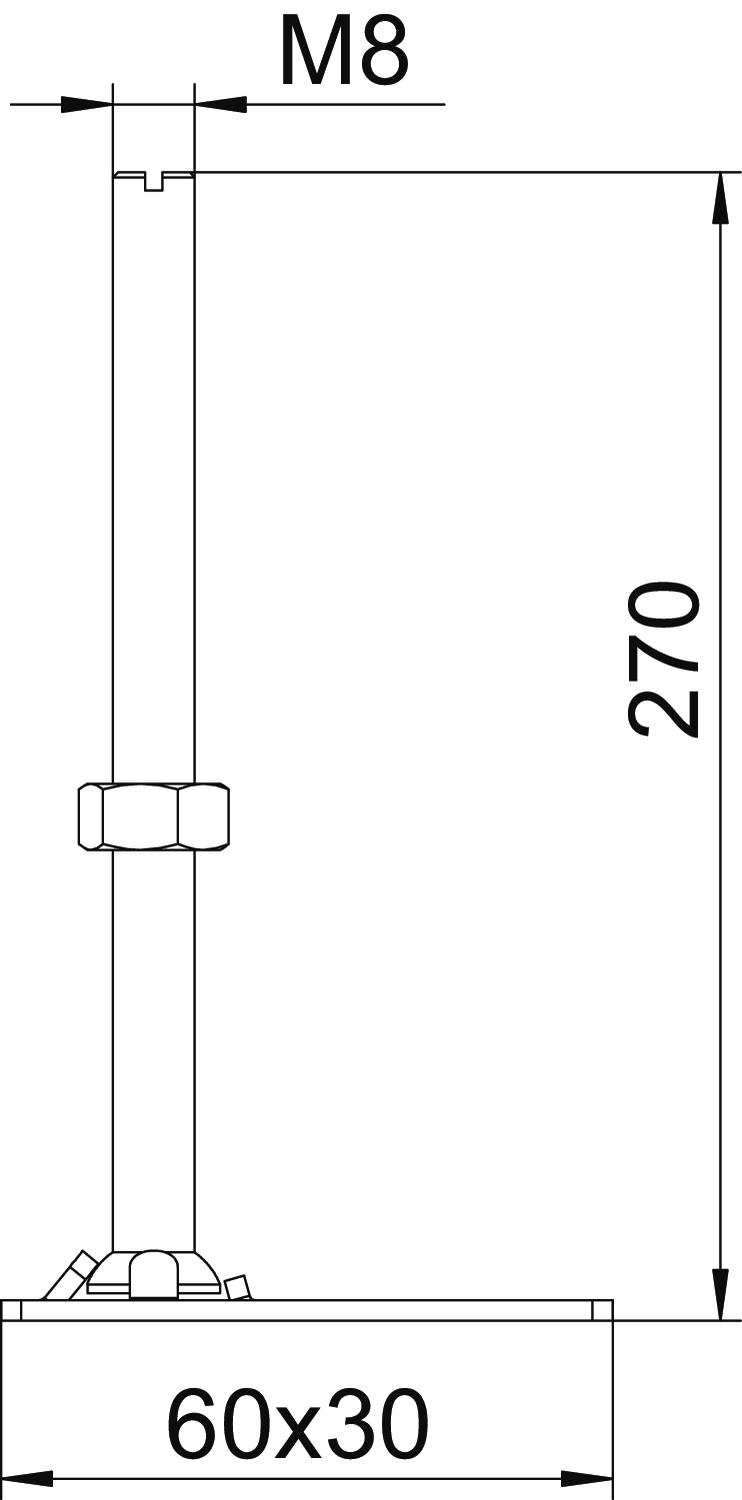

Dimension M8x270mm Dimension h 270 mm Height-adjustment range, max. 355 mm Height-adjustment range, min. 300 mm Material Steel Material of the foot Metal Suitable for cassettes yes Suitable for ducts and trunking yes Surface Electrogalvanized With footfall sound insulation no - All types
- Downloads
-
Data sheet RK NEV2 270 / 7405819 , 0.21MB , pdfEU declaration of conformity RK NEV2 270 / 7405819 , 0.11MB , pdfUK Declaration of Conformity RK NEV2 270 / 7405819 , 0.14MB , pdfREACH Declaration of conformity RK NEV2 270 / 7405819 , 0.12MB , pdfRoHS Declaration of conformity RK NEV2 270 / 7405819 , 0.12MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfNo invitation to tender text is available for this product.
