Hexagonal bolt M10 F 10 | 80 | 17 | 10 | Steel

morepic-1

morepic-2

Hexagonal bolt M10 F

Item no. 6418250 | EAN 4012196437474

Item no. / Types

Dimension d	10 mm

Dimension L

WAF	17

Thread metric	10

Material	Steel

Product description

Product description

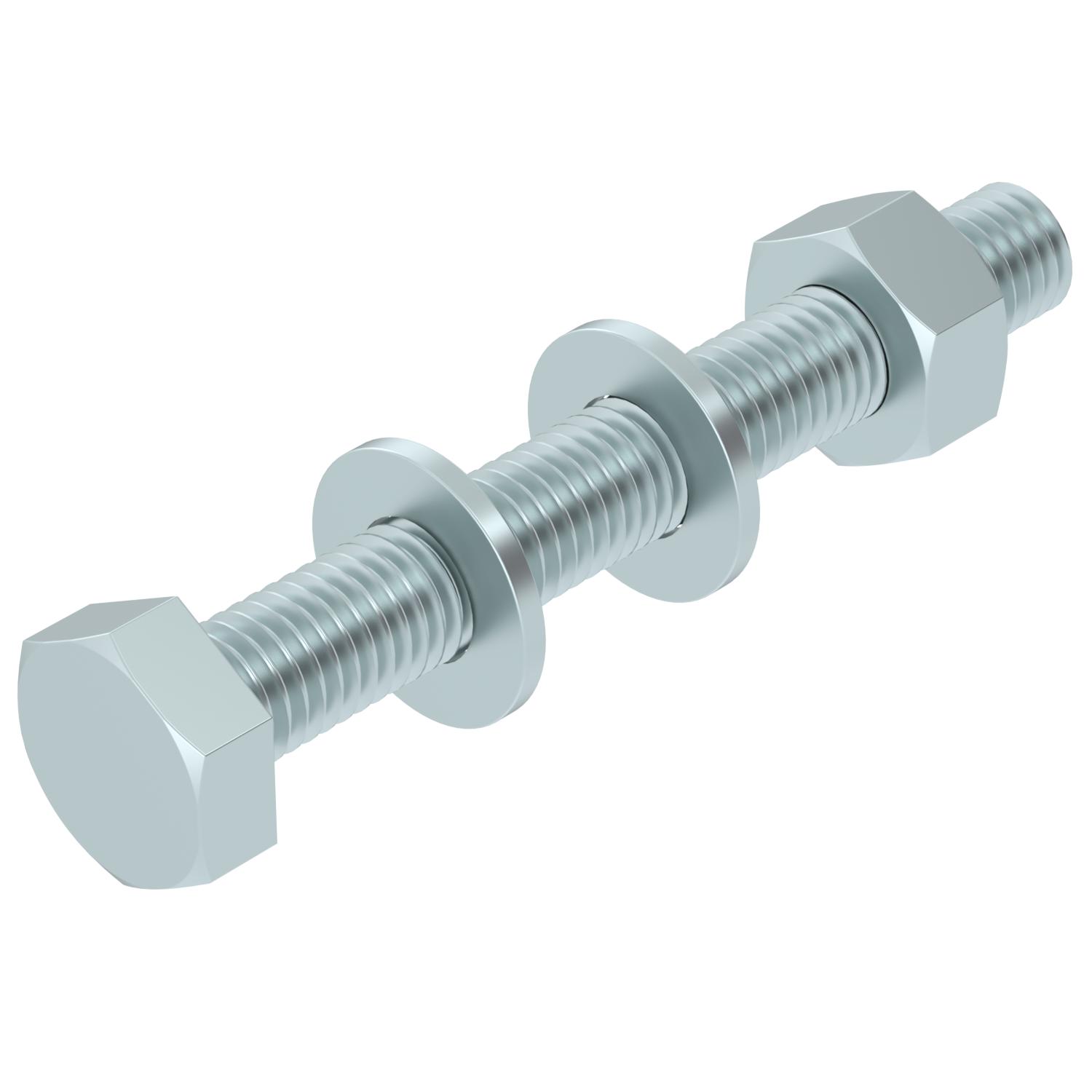

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.

Technical data

Technical data

Dimension	M10x80
Dimension d	10 mm
Dimension L	80 mm
Full thread	yes
Length	80 mm
Material	Steel
Resistance grade	8.8

Surface	Hot galvanized
Thread	M 10 x 80
Thread increase	1,5 mm
Thread metric	10
WAF	17
With nut	yes
With washer	yes

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
SKS 10x25 F	10 mm	25 mm	17	10	Steel	3160734	piece	50 piece
SKS 10x40 F	10 mm	40 mm	17	10	Steel	3160750	piece	50 piece
SKS 10x120 F	10 mm	120 mm	17	10	Steel	3160793	piece	20 piece
SKS 10x60 F	10 mm	60 mm	17	10	Steel	6408516	piece	20 piece
SKS 10x80 F	10 mm	80 mm	17	10	Steel	6418250	piece	20 piece
SKS 10x90 F	10 mm	90 mm	17	10	Steel	6418252	piece	20 piece

Downloads

Data sheet SKS 10x80 F / 6418250 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity SKS 10x80 F / 6418250 , 0.22MB , pdf

REACH Declaration of conformity SKS 10x80 F / 6418250 , 0.12MB , pdf

Download

RoHS Declaration of conformity SKS 10x80 F / 6418250 , 0.12MB , pdf

Download

Selection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdf

Selection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic SKS 10x80 F / 6418250, 55.64 kB, jpg

Scale drawing SKS 10x80 F / 6418250, 34.99 kB, jpg

SKS 10x80 F / 6418250

6418250_KSTP1.stp, 180.19 kB
