Hexagonal bolt M10 F 10 | 90 | 17 | 10 | Steel

morepic-1

morepic-2

Hexagonal bolt M10 F

Item no. 6418252 | EAN 4012196518470

Item no. / Types

Dimension d	10 mm

Dimension L

WAF	17

Thread metric	10

Material	Steel

Product description

Product description

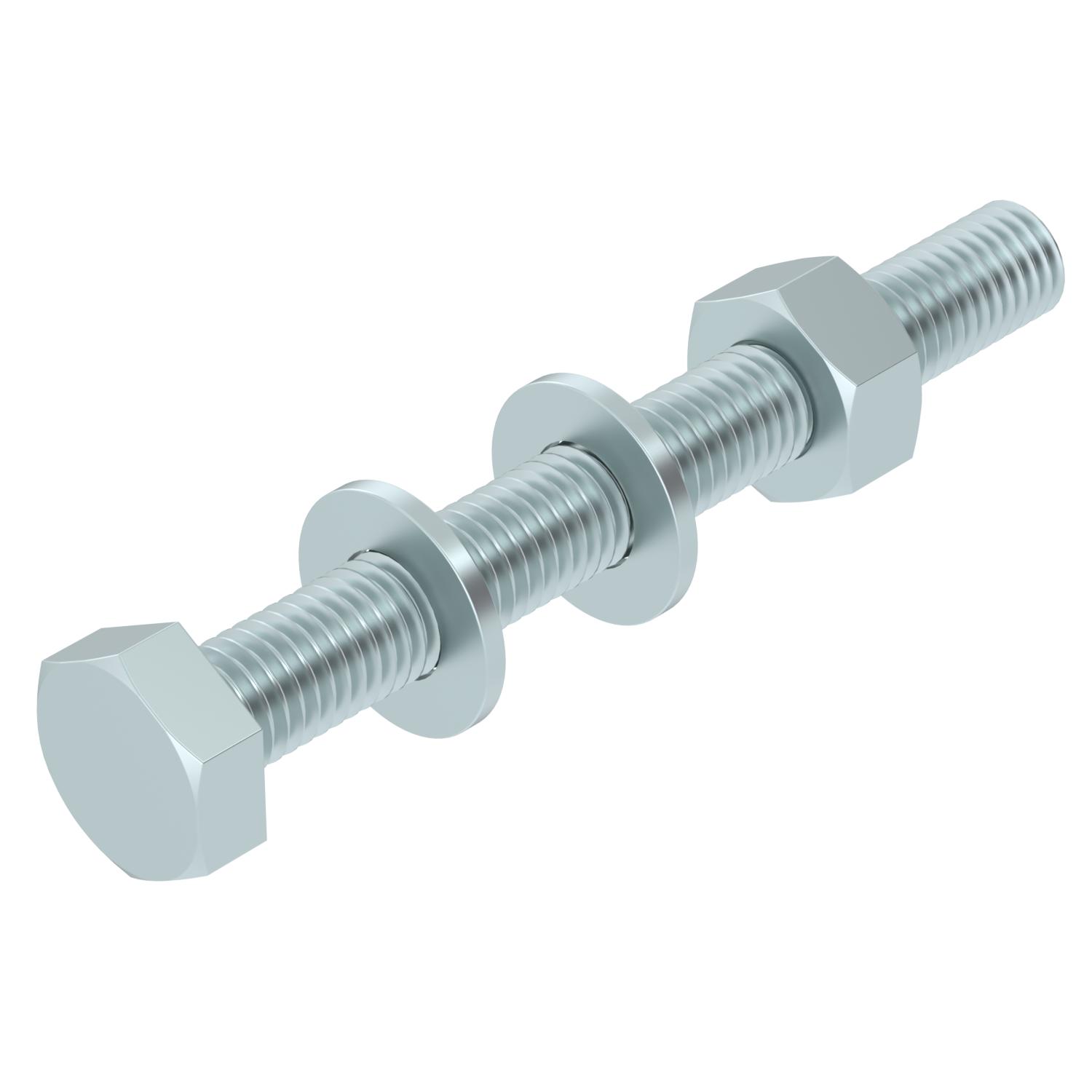

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.

Technical data

Technical data

Colour	zinc
Dimension	M10x90
Dimension d	10 mm
Dimension L	90 mm
Full thread	yes
Length	90 mm
Material	Steel
Resistance grade	8.8

Surface	Hot galvanized
Thread	M 10 x 90
Thread increase	1,5 mm
Thread metric	10
WAF	17
With nut	yes
With washer	yes

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
SKS 10x25 F	10 mm	25 mm	17	10	Steel	3160734	piece	50 piece
SKS 10x40 F	10 mm	40 mm	17	10	Steel	3160750	piece	50 piece
SKS 10x120 F	10 mm	120 mm	17	10	Steel	3160793	piece	20 piece
SKS 10x60 F	10 mm	60 mm	17	10	Steel	6408516	piece	20 piece
SKS 10x80 F	10 mm	80 mm	17	10	Steel	6418250	piece	20 piece
SKS 10x90 F	10 mm	90 mm	17	10	Steel	6418252	piece	20 piece
