Hexagonal nut ISO 4032 10 | 8.4 | 17
morepic-1 morepic-2

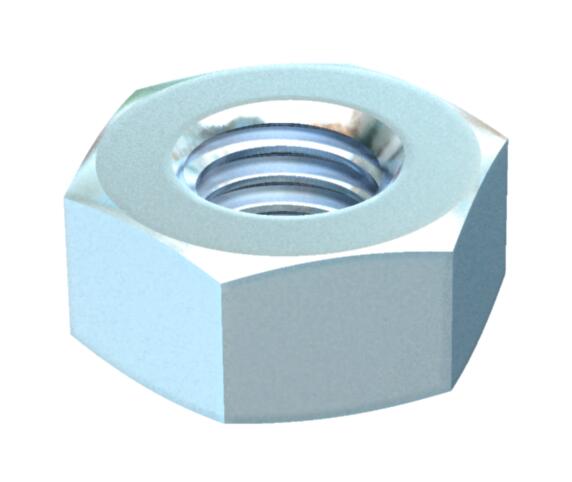

Hexagonal nut ISO 4032

Item no. 3400360 | EAN 4012195298519

Product description
Product description
Hexagonal nut to DIN 934 with metric thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc
CO₂ Footprint (GWP) Cradle-to-Gate 0,001 kg CO₂e / 1 Piece
Dimension M10
Dimension d 10 mm
Dimension h 8,4 mm
Halogen-free yes
Left thread no
Material Steel
Nut version Nut
Screw system nut Hexagon head
Self-locking no
Surface Hot galvanized
Thread M10
Thread metric 10
Thread type Metric
WAF 17
With flange no
All types

All types

Types Dimension d Dimension h WAF Item no. Quantity SSU
DIN934 M6 F 6 mm 5.2 mm 10 3400344
100 piece
DIN934 M8 F 8 mm 6.8 mm 13 3400352
100 piece
DIN934 M10 F 10 mm 8.4 mm 17 3400360
100 piece
DIN934 M12 F 12 mm 10.8 mm 19 3400379
100 piece
Downloads

Download

Download

DIN934 M10 F / 3400360
Download
