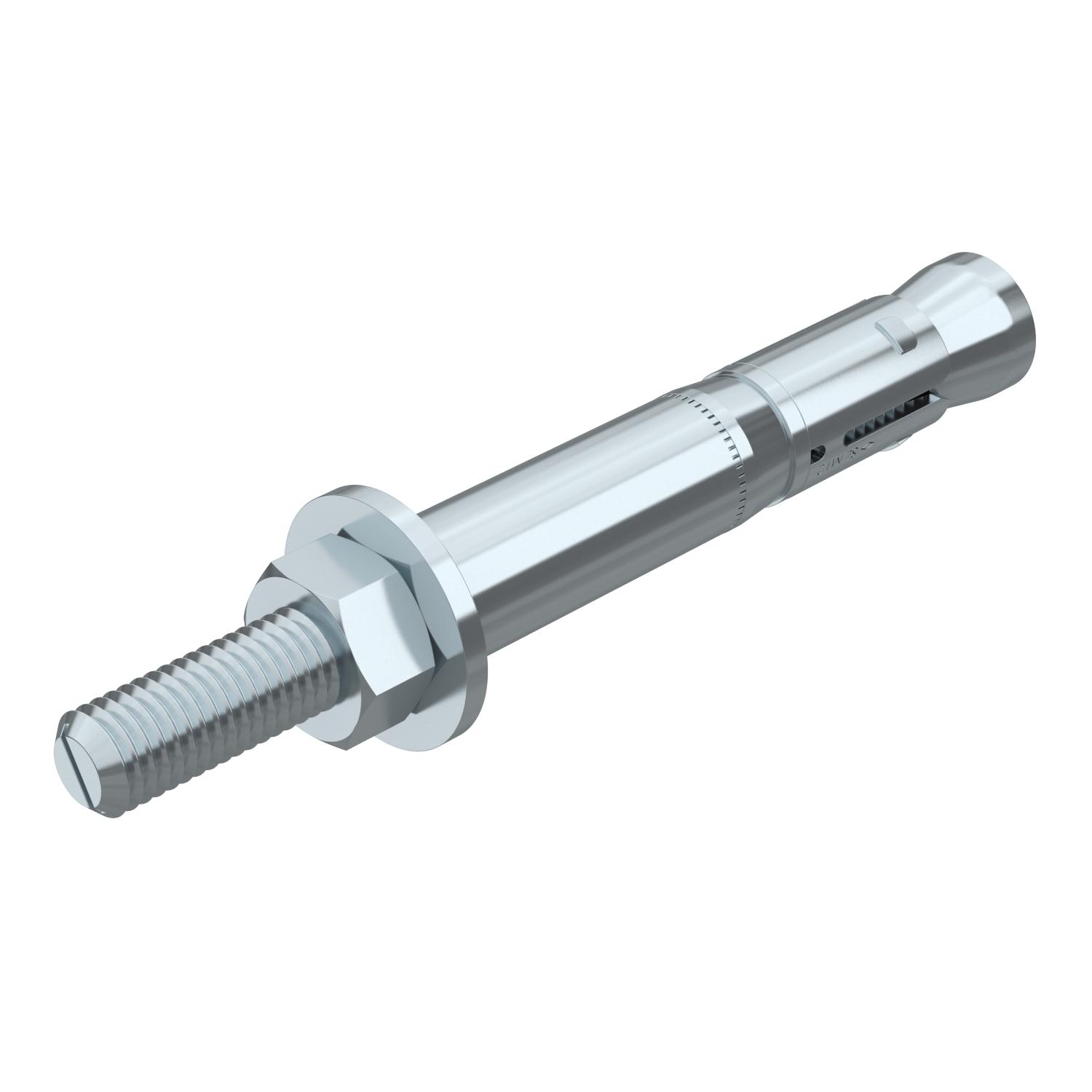

High-load anchor SZ-B
Item no. 3498752 | EAN 4012196429486
- Product description
-
Product descriptionThe high-load anchor SZ is a heavy-duty push-through anchor system with a threefold expanding special sleeve which facilitates very high approved loads with small axial spacings and edge distances. The plastic press ring secures the permanent tightening of the fastening piece against the ground.
- Technical data
-
Technical data
Clamping strength 30 mm Colour zinc Dimension M12x142 Dimension L 142 mm Drill hole depth 105 mm Drill hole diameter, min. 18 mm Length 142 mm Material Steel Permitted load range, tension zone 12,3 Surface Electrogalvanized Thread M12 Thread metric 12 Version for For pushing in - All types
- Downloads
-
Data sheet SZ-B 18/0x142 / 3498752 , 0.14MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfREACH Declaration of conformity SZ-B 18/0x142 / 3498752 , 0.12MB , pdfRoHS Declaration of conformity SZ-B 18/0x142 / 3498752 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, SZ-B heavy-duty anchor , 0.98MB , pdf
