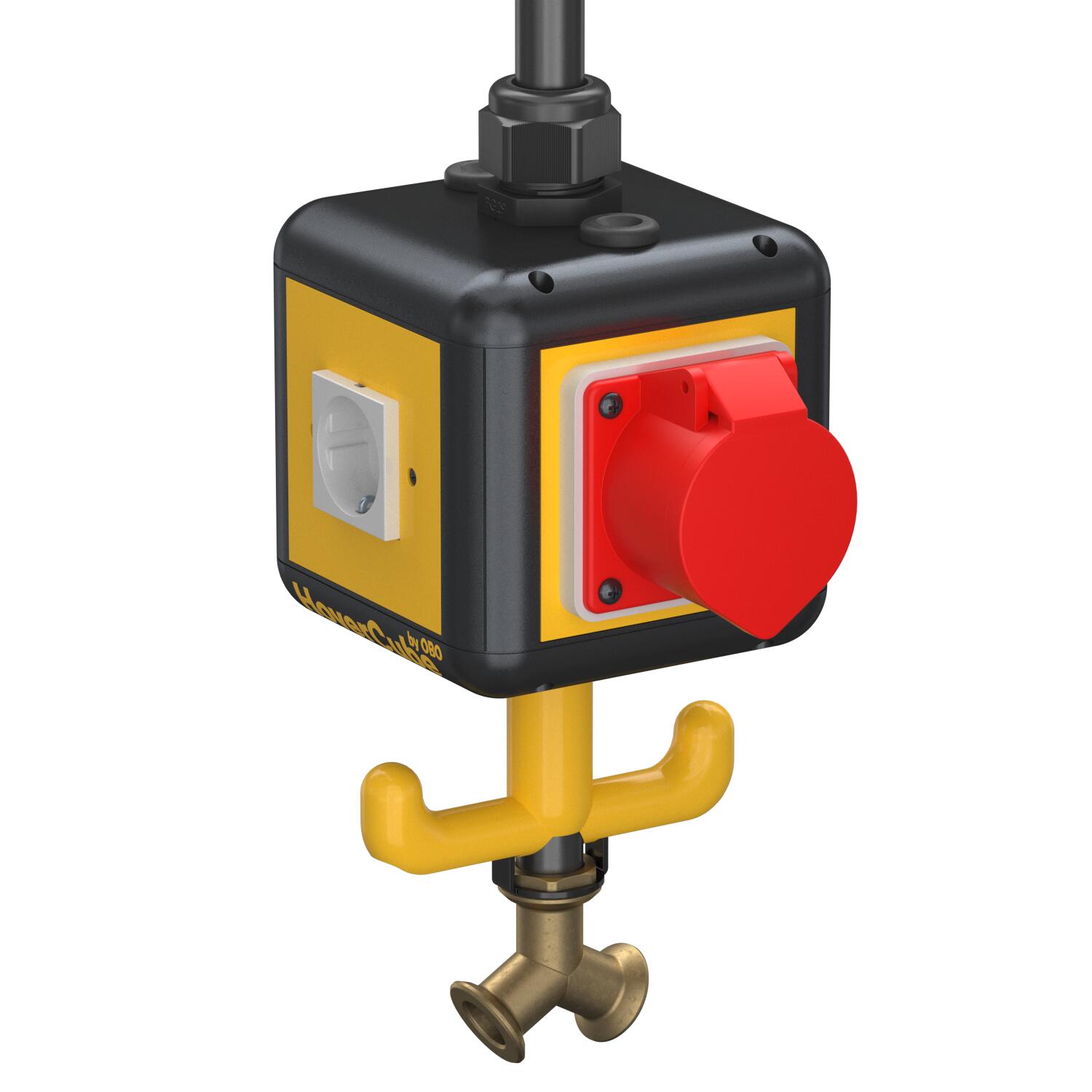

HoverCube VH-4, 3x protective contact socket, 1x CEE 16 A, with compressed air connection
Item no. 6109814 | EAN 4012195125143
- Product description
-
Product description

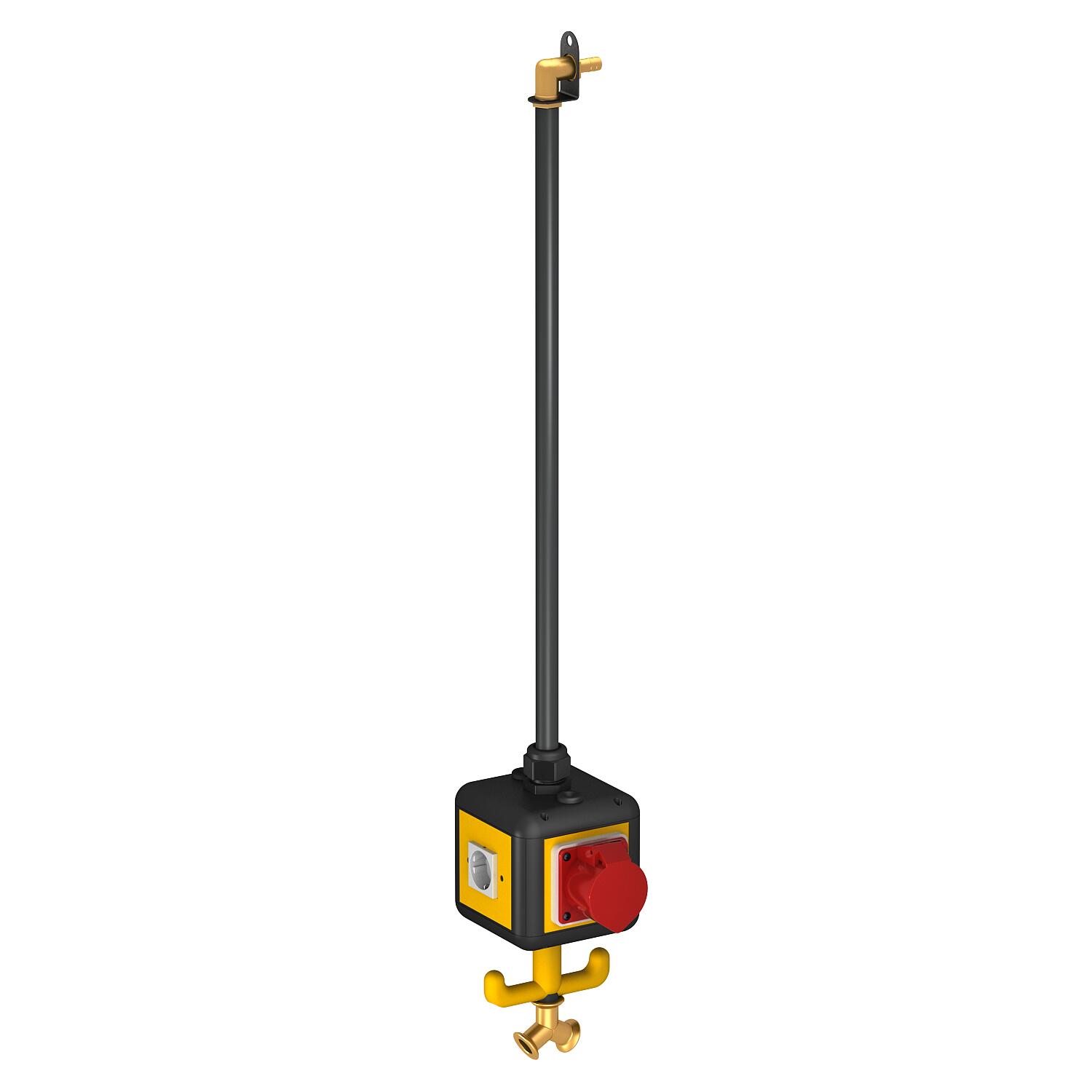

Housing equipped and pre-wired, with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2", with suspension lug, grip hook and four cover plates.
Equipped as follows: 3x single protective contact sockets 16 A/250 V with increased touch protection, pre-wired for an AC current, connection via 1x 3-pin terminal, 1x CEE socket
16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
-
- Technical data
-
Technical data
CEE socket, 125 A Without CEE socket, 16 A 1x16A5p400V CEE socket, 32 A Without CEE socket, 63 A Without Colour Graphite black; RAL 9011 Depth 196 mm Dimension 140x140x1100 FI protection switch Without Handling abhängbar Material Polyamide Military version no Number of CEE sockets 1 Number of compressed air connections 2 Number of SCHUKO sockets 3 Protection rating IP20 Supply/connection option Miscellaneous Dimensions

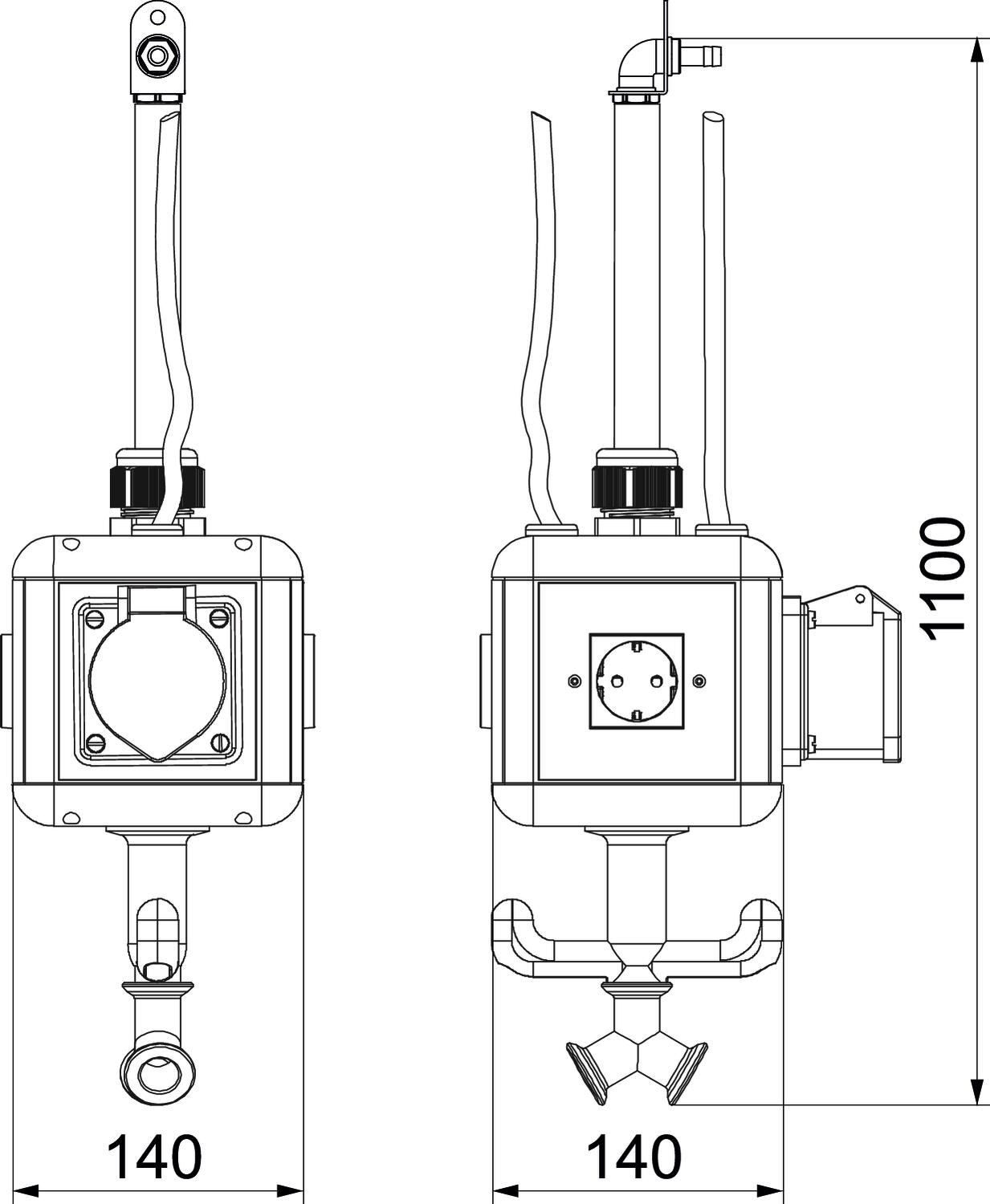

Height 1100 mm Width 140 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Knotted chain
VH-K800 6109870 1 m
Positioner for power supply units VH
VH-POS 6109887 1 piece
VH/VHF tension spring
VH-F100VA 6109829 1 piece - Downloads
-
