HoverCube VH-4, 4x earthing pin socket, with compressed air connection
Item no. 6109816 | EAN 4012195125150
- Product description
-
Product description

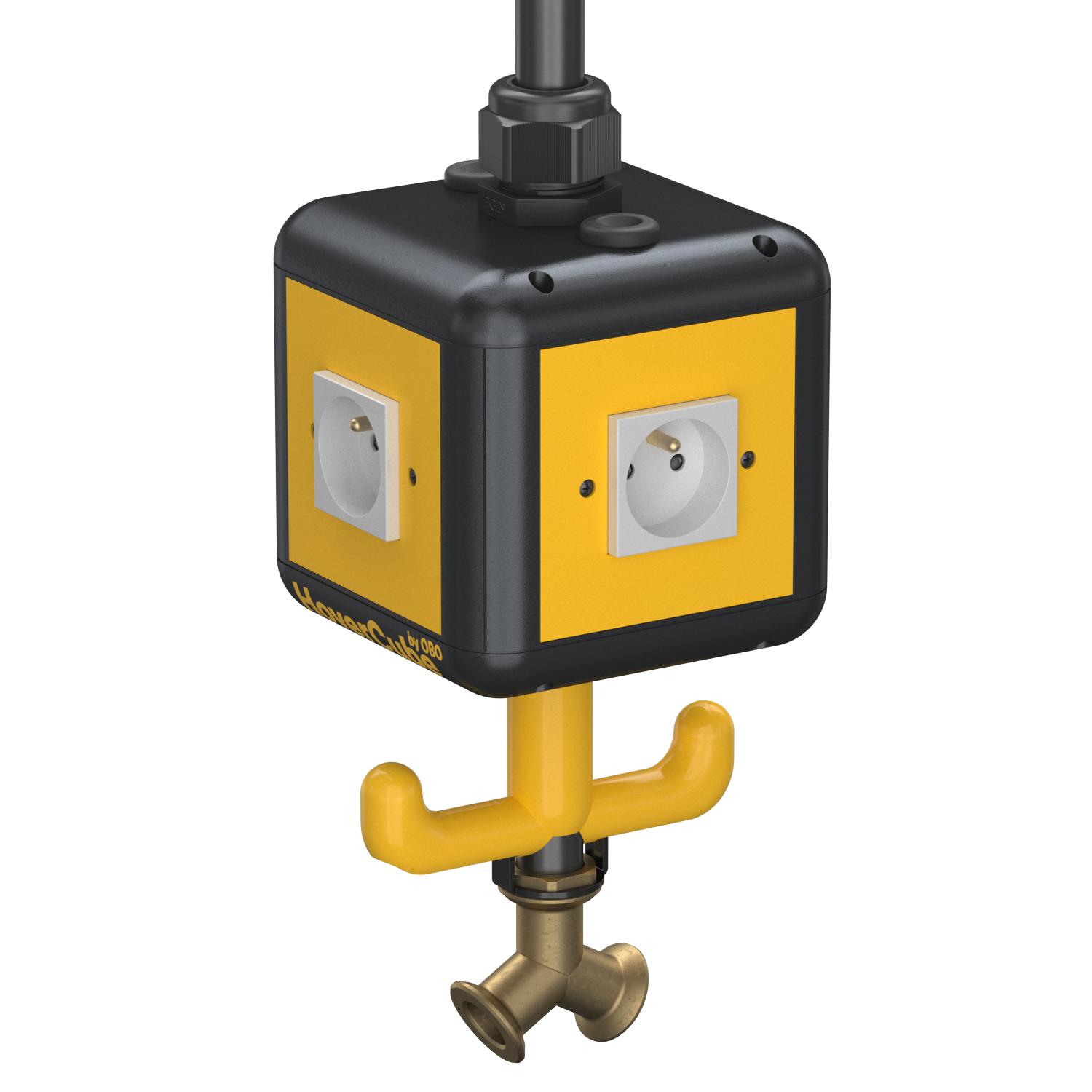

Housing equipped and pre-wired, with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2", with suspension lug, grip hook and four cover plates.
Equipped as follows: 4x single sockets with earthing pin 16 A/250 V with increased touch protection, pre-wired for two AC currents, connection via 2x 3-pin terminals, 1x CEE socket
16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
-
- Technical data
-
Technical data
CEE socket, 125 A Without CEE socket, 16 A Without CEE socket, 32 A Without CEE socket, 63 A Without Colour Graphite black; RAL 9011 Depth 140 mm Dimension 140x140x1100 FI protection switch Without Handling abhängbar Material Polyamide Military version no Other installations and/or empty slots 5 Protection rating IP20 Supply/connection option Miscellaneous Dimensions

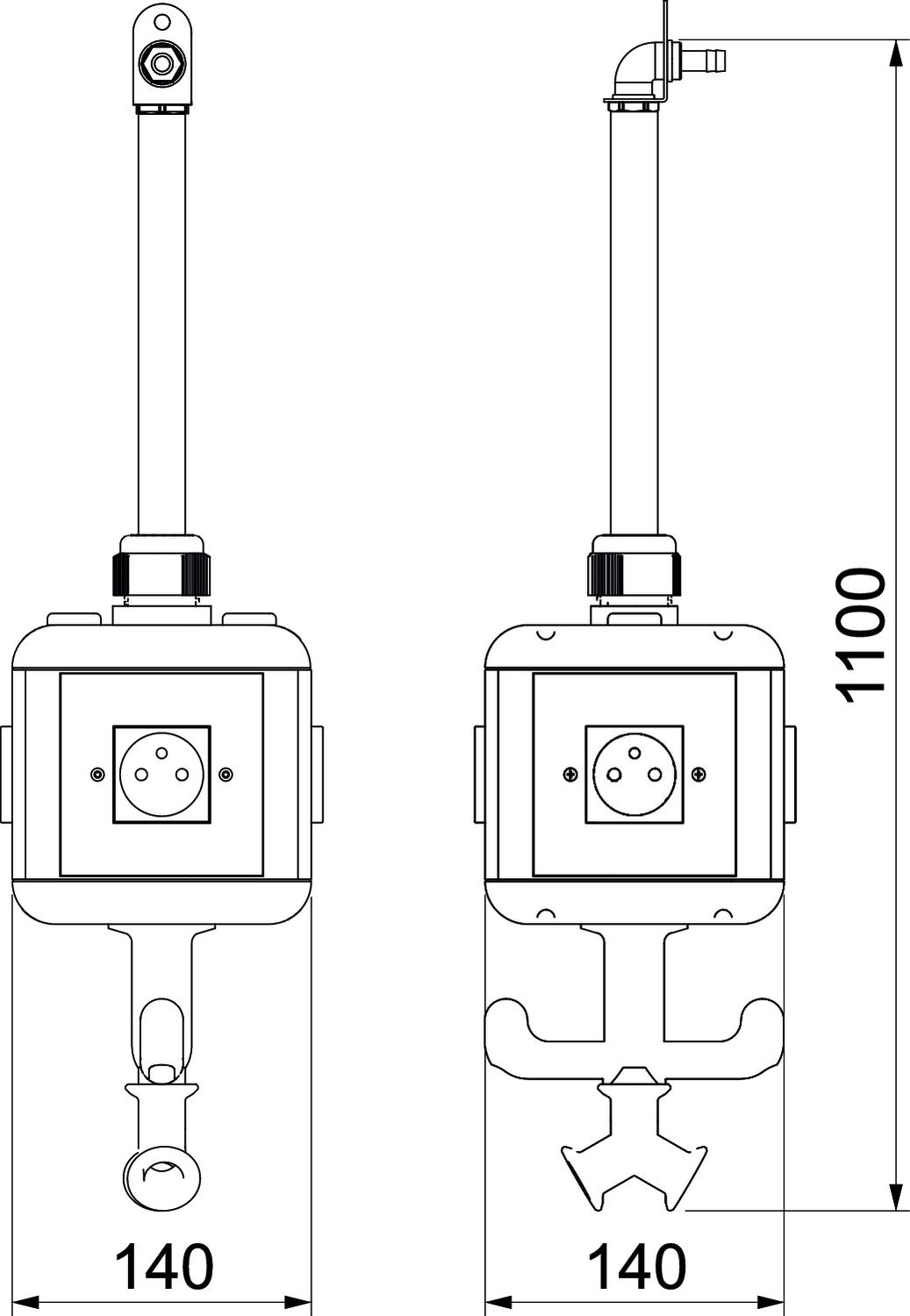

Height 1100 mm Width 140 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Knotted chain
VH-K800 6109870 1 m
Positioner for power supply units VH
VH-POS 6109887 1 piece
VH/VHF tension spring
VH-F100VA 6109829 1 piece - Downloads
-
Data sheet VH-4L 4SF / 6109816 , 0.20MB , pdfCatalogue Installation systems , 28.45MB , pdfMounting instructions Mounting instructions, HoverCube (pre-terminated) , 3.74MB , pdfMounting instructions Mounting instructions, VH-4/..; VH-4L/.. , 0.06MB , pdf
