HoverCube VH-4, 4x protective contact socket 4 | | | Without | Graphite black; RAL 9011

HoverCube VH-4, 4x protective contact socket

Item no. 6109802 | EAN 4012195125044

Item no. / Types	6109802 / VH-4 4SD

Number of SCHUKO sockets	4

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

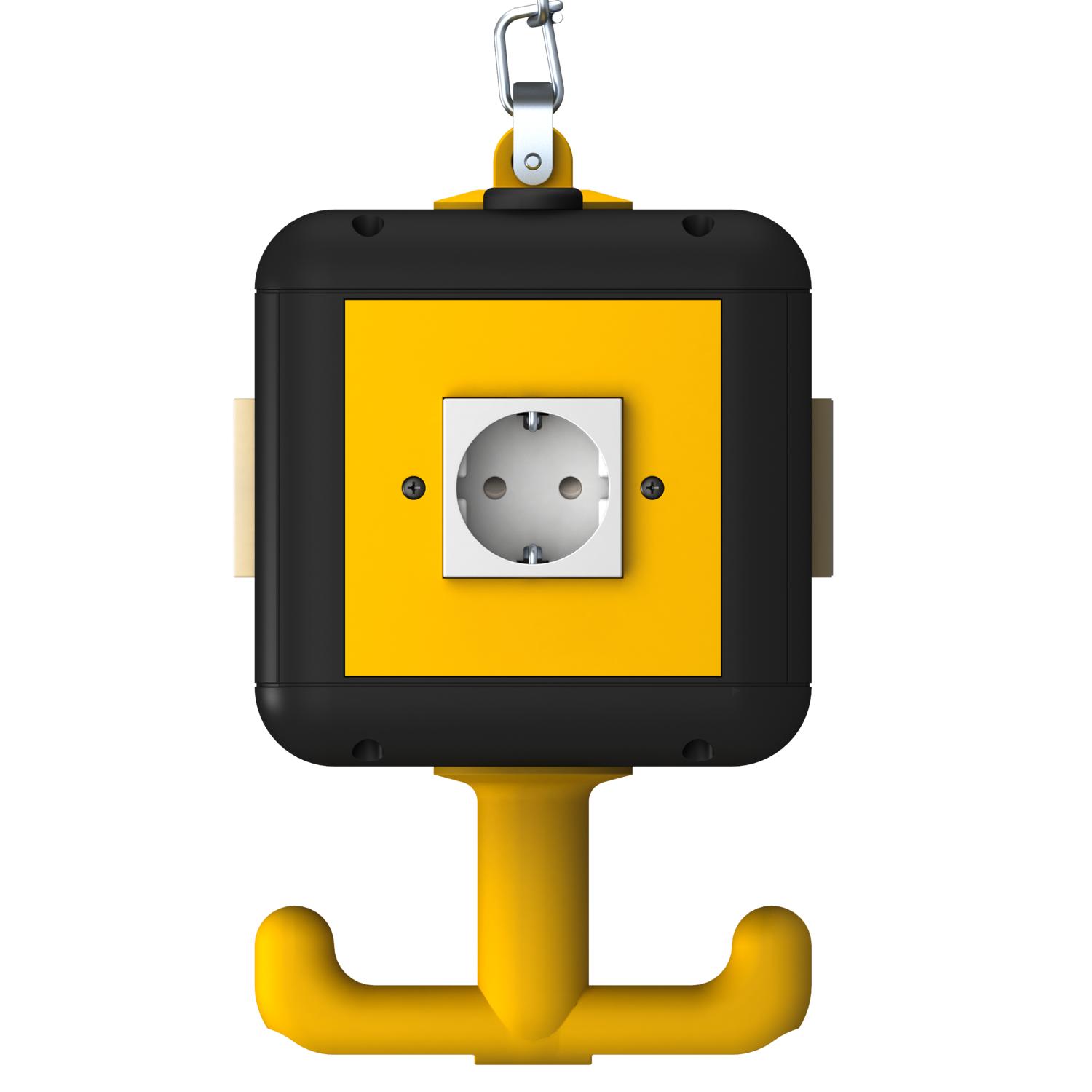

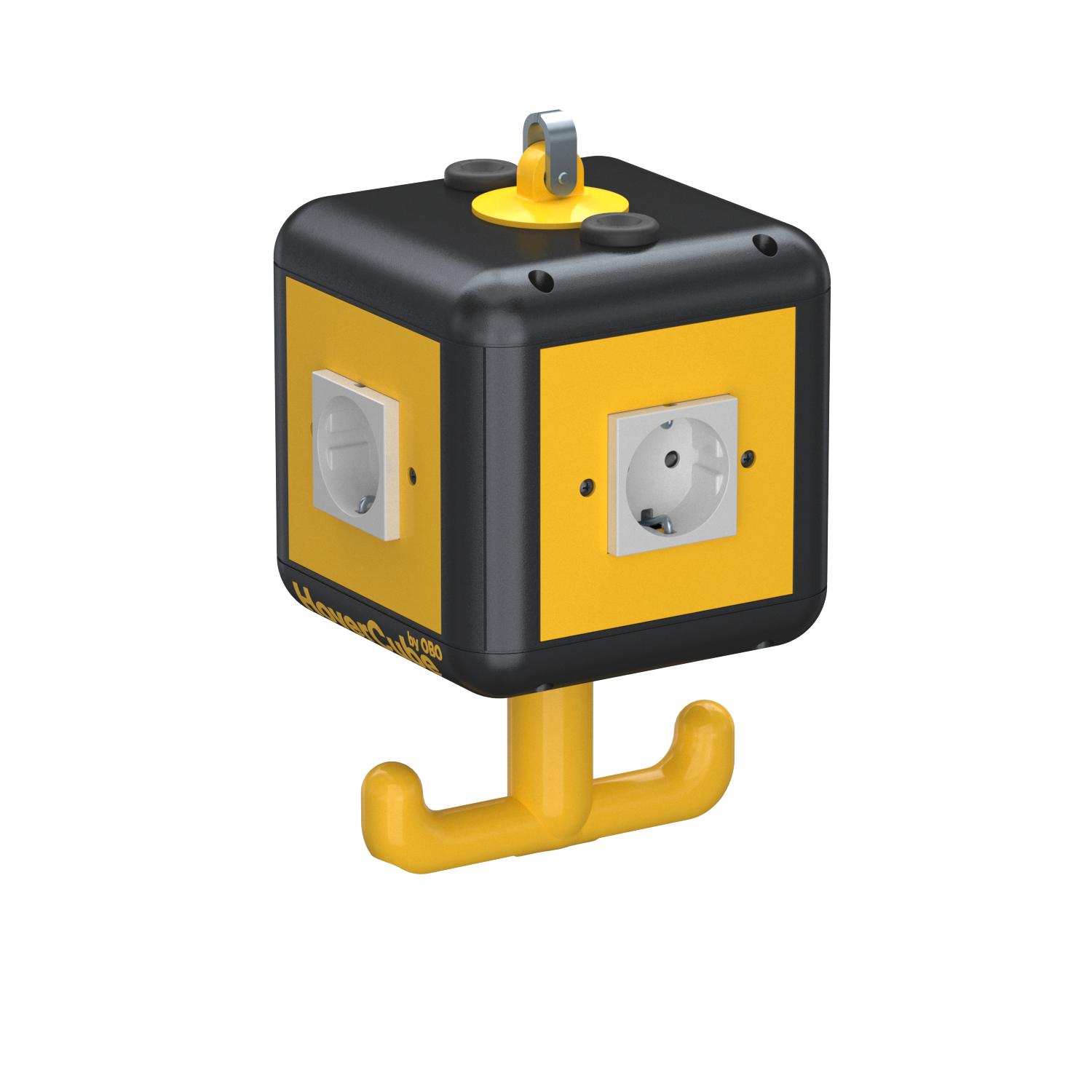

Housing equipped and prewired with suspension lug, grip hook and four cover plates.

Equipped as follows: 4x single protective contact sockets 16 A/250 V with increased touch protection, prewired for two AC currents, connection via 2x 3-pin terminals, 1x CEE socket 16 A/415 V, with partition for circuit separation.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	Without
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
CO₂ Footprint (GWP) Cradle-to-Gate	3,827 kg CO₂e / 1 Piece

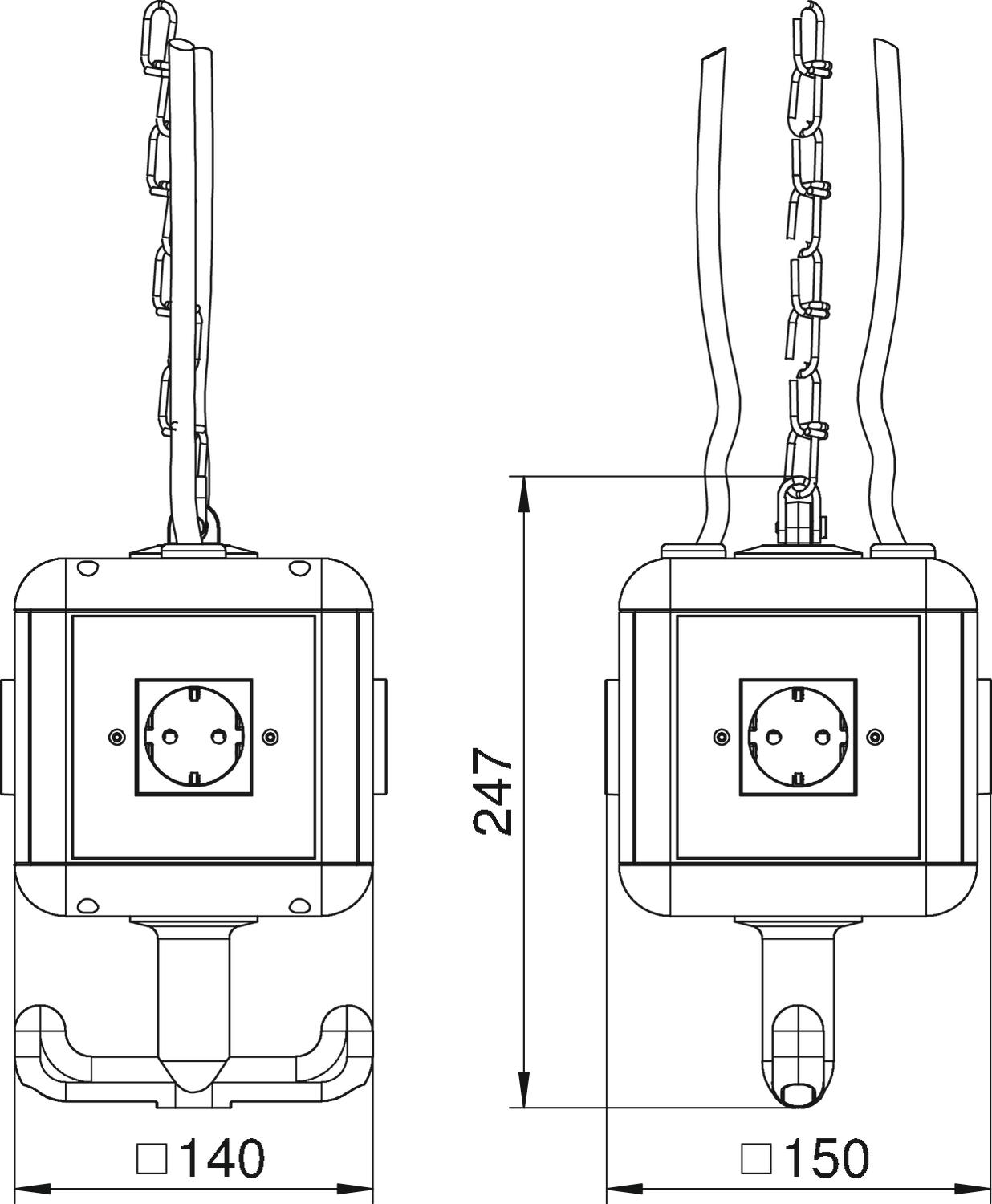

Depth	150 mm
Dimension	140x140x252
FI protection switch	Without

Handling	abhängbar
Height	247 mm
Material	Polyamide
Military version	no
Number of SCHUKO sockets	4
Protection	Without
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm
