HoverCube VHF-8, empty housing, with compressed air connection | | | Without | Graphite black; RAL 9011

HoverCube VHF-8, empty housing, with compressed air connection

Item no. 6109827 | EAN 4012195125228

Item no. / Types	6109827 / VHF-8L LG

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

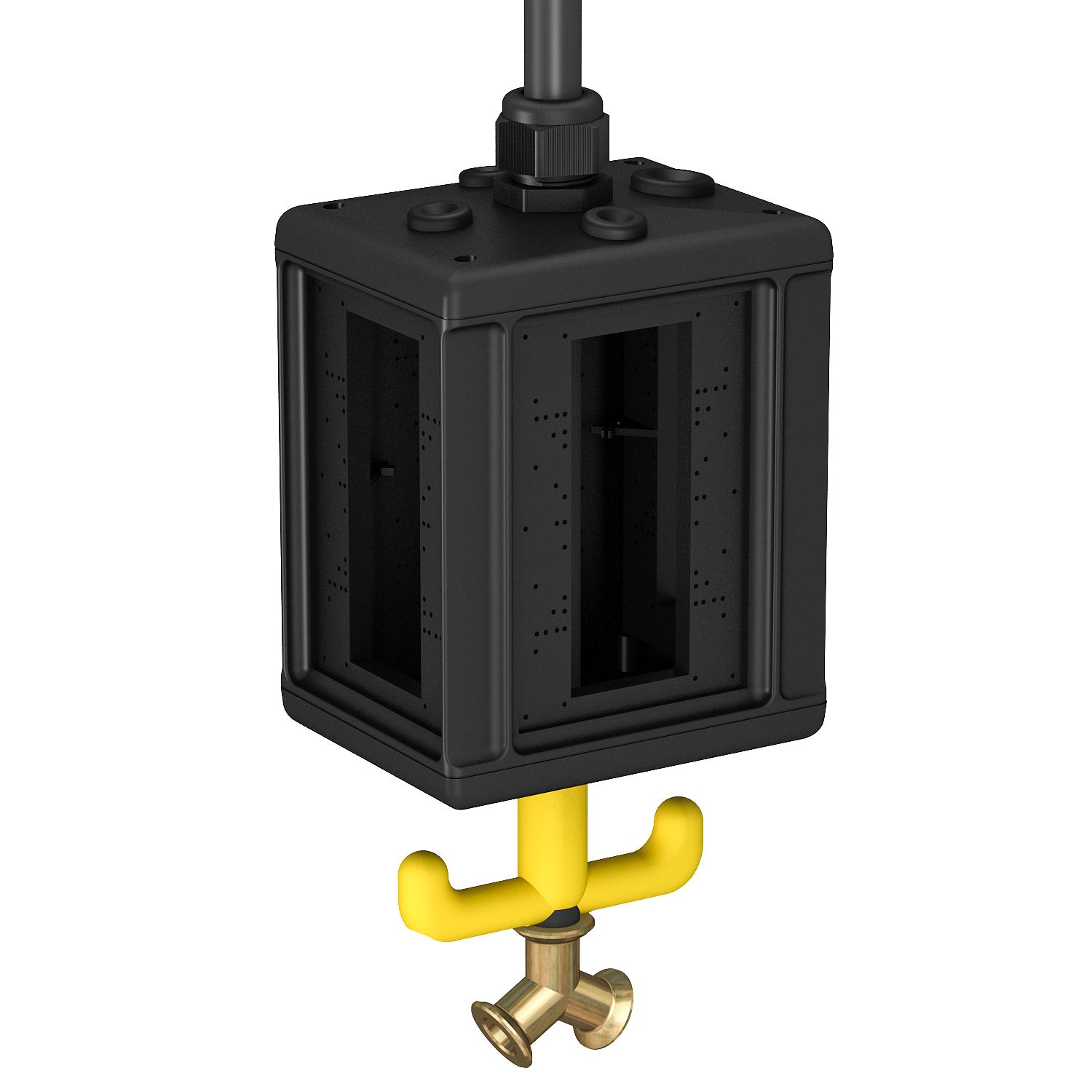

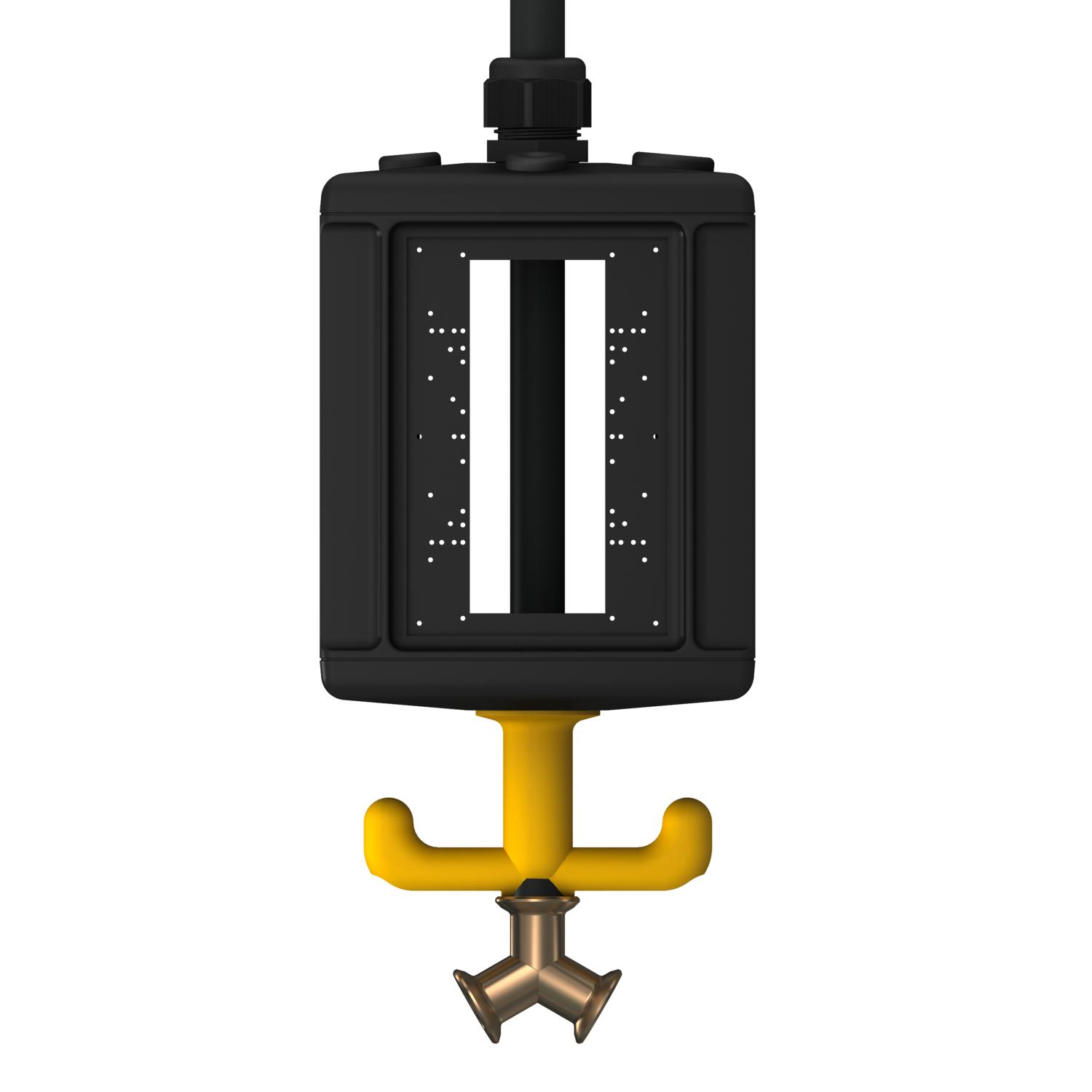

Empty housing with 1 m pipe 1/2" and connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2". With suspension lug and grip hook, for the installation of electrical resources, with included partition. Without cover plates to supply workplaces in wet areas. Protection rating: IP44.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	Without
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
Depth	175 mm
Dimension	175x135x1100
FI protection switch	Without

Handling	abhängbar
Height	1100 mm
Material	Polyamide
Military version	no
Other installations and/or empty slots	8
Protection rating	IP44
Supply/connection option	Miscellaneous
Width	140 mm
