HW Cavity wall device box 61, CEE/PERILEX, with sealing ring
Item no. 2003819 | EAN 4012196700790
- Product description
-
Product description

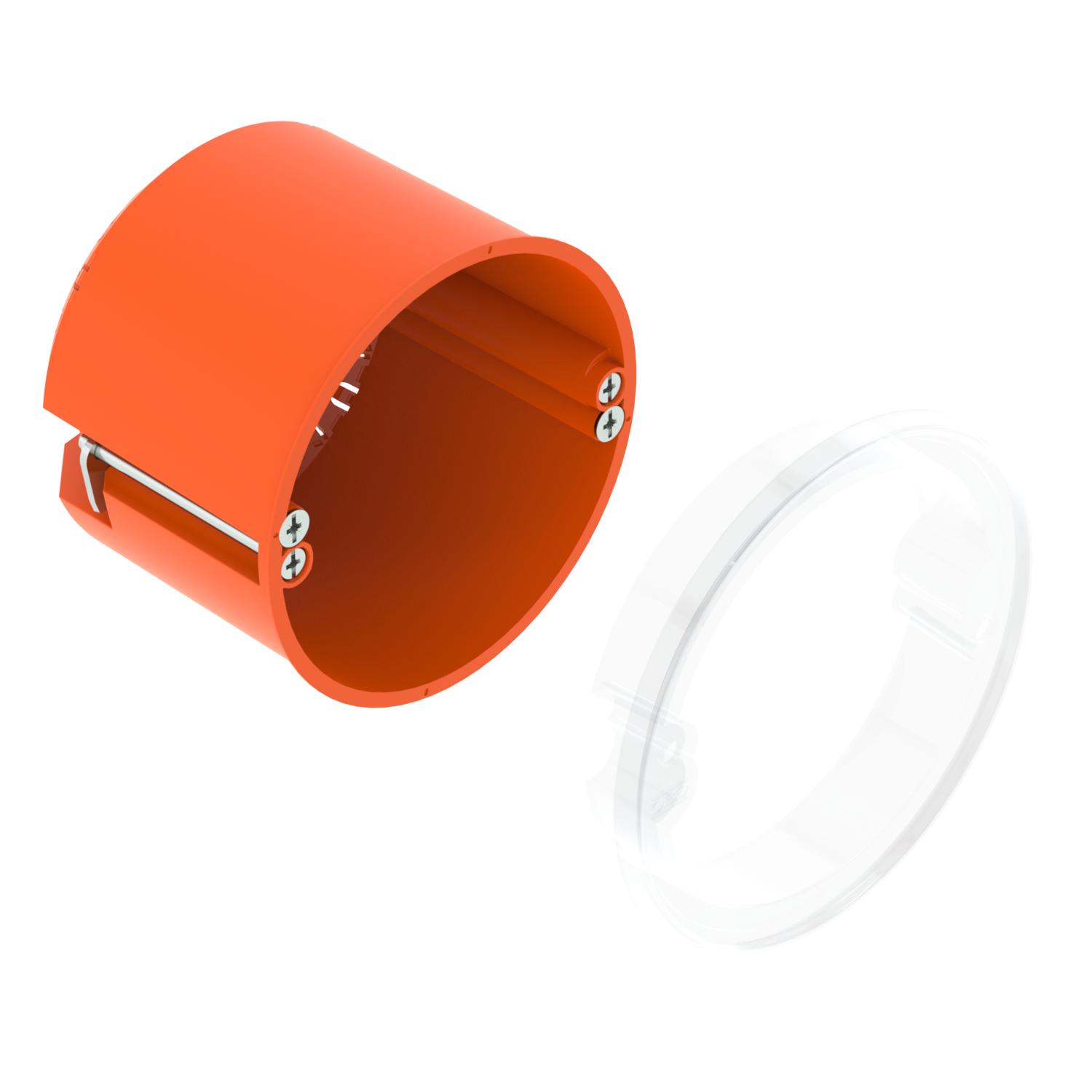

CEE/PERILEX cavity wall device box with sealing ring, for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.
• 2 screw domes
• Device screws, clamping straps
• 3 combination pipe entries of Ø 20 and 25 mm
• 3 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• 1 entry for NYM cables 3 x 1.5 mm²
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data
Airtight no Cable entries 3 x 1.5 mm² 1 Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² 3 Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² 2 Colour Orange Combination entries Ø 20 / 25 mm 3 Cover Without Cover fastening Screws , Cover screw clearance 67 mm Device fixing Screws , Diameter 74 mm Dimension Ø74mm, H61mm Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C for pipe diameter 20/25 mm Halogen-free yes Impact-resistant yes Material Polypropylene Milling hole diameter 74 mm No. of entries 9 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 1 Protection rating IP34 Rated voltage 400 V Shape Round Suitable for plate thickness, max. 40 mm Suitable for plate thickness, min. 5 mm Support Without Type of housing penetration Break-out opening Type of insertion… NYM cables and pipes With bolts yes Dimensions

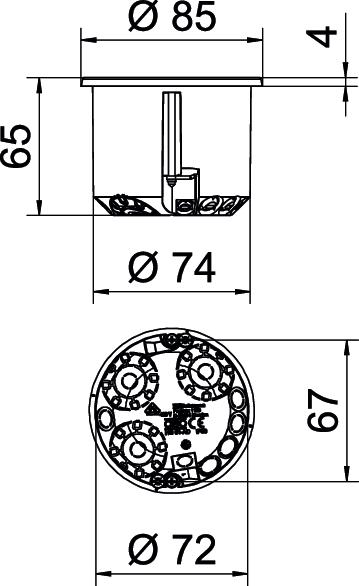

Height 61 mm - All types
