HW Cavity wall device connection box 61, airtight 61 | 68 | 68 | 20/25 mm | 10

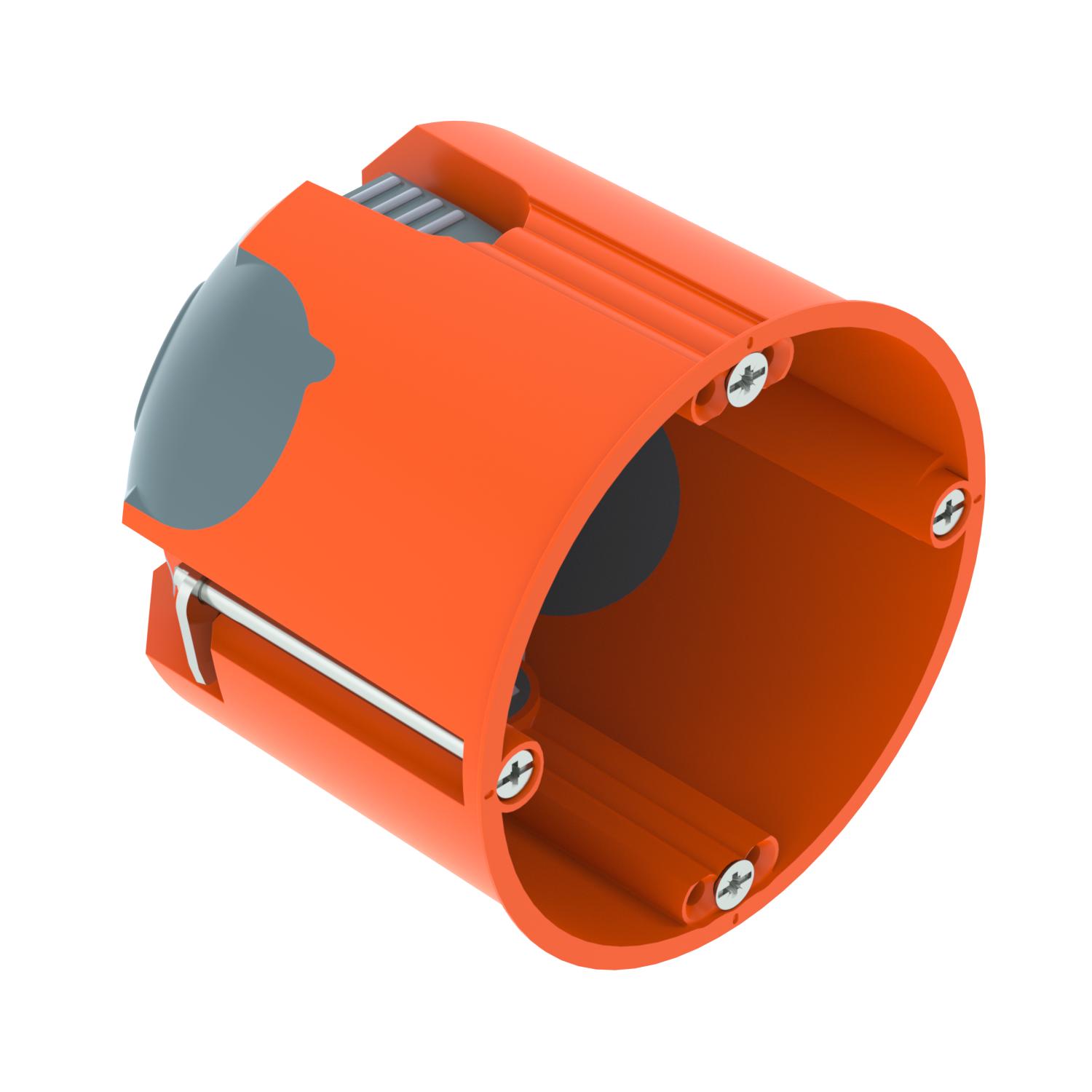

HW Cavity wall device connection box 61, airtight

Item no. 2003808 | EAN 4012196715947

Item no. / Types	2003808 / HG 61-L

Height	61 mm

Diameter	68 mm

Milling hole diameter	68 mm

for pipe diameter	20/25 mm

No. of entries	10

Product description

Product description

Cavity wall device box with airtight membrane entries for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.

• 2 x 3 screw domes

• Device screws, clamping straps

• 2 combination pipe entries of Ø 20 and 25 mm

• 4 entries for NYM cables 3 x 1.5 mm

• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²

• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²

• Airtight connection with other accessory sockets via connector, type ZH 11-V

• Sound insulation tested up to 70 dB according to ISO 10140-2

Delivery accessories: 10 x connectors, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	yes
Cable entries 3 x 1.5 mm²	4
Cable entries 3 x 2.5 mm² / 5 x 1.5 mm²	2
Cable entries 5 x 2.5 mm² / 7 x 1.5 mm²	2
Colour	orange / grey
Cover	Without
Cover fastening	Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate	0,1161 kg CO₂e / 1 Piece
Device fixing	Screws ,
Diameter	68 mm
Dimension	Ø68mm, H61mm
Flame-resistant	Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	61 mm
Impact-resistant	yes

Material	Polypropylen / Thermoplastisches Elastomer
Milling hole diameter	68 mm
No. of entries	10
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Number of switch boxes	1
Protection rating	IP30
Rated voltage	400 V
Shape	Round
Suitable for plate thickness, max.	40 mm
Suitable for plate thickness, min.	5 mm
Support	Connector
Type of housing penetration	Insertion membrane
Type of insertion…	NYM cables, data cables and corrugated pipes
With bolts	yes

All types

All types

Types	Height	Diameter	Milling hole diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
HG 61-L	61 mm	68 mm	68 mm	20/25 mm	10	2003808	piece	25 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
HW Compensation ring	ZH 68-AR	2003840	piece	10 piece
HW Compensation ring 10	ZH 10-AR	2003842	piece	25 piece
HW Compensation ring 20	ZH 20-AR	2003844	piece	25 piece
HW Connector for cavity wall boxes	ZH 11V	2003846	piece	10 piece
Inner fitting, cover cavity wall device box	ZH 60-ID	2003848	piece	25 piece
