HW Cavity wall electronic box 74, airtight, with elastomer sack
Item no. 2003828 | EAN 4012197276676
- Product description
-

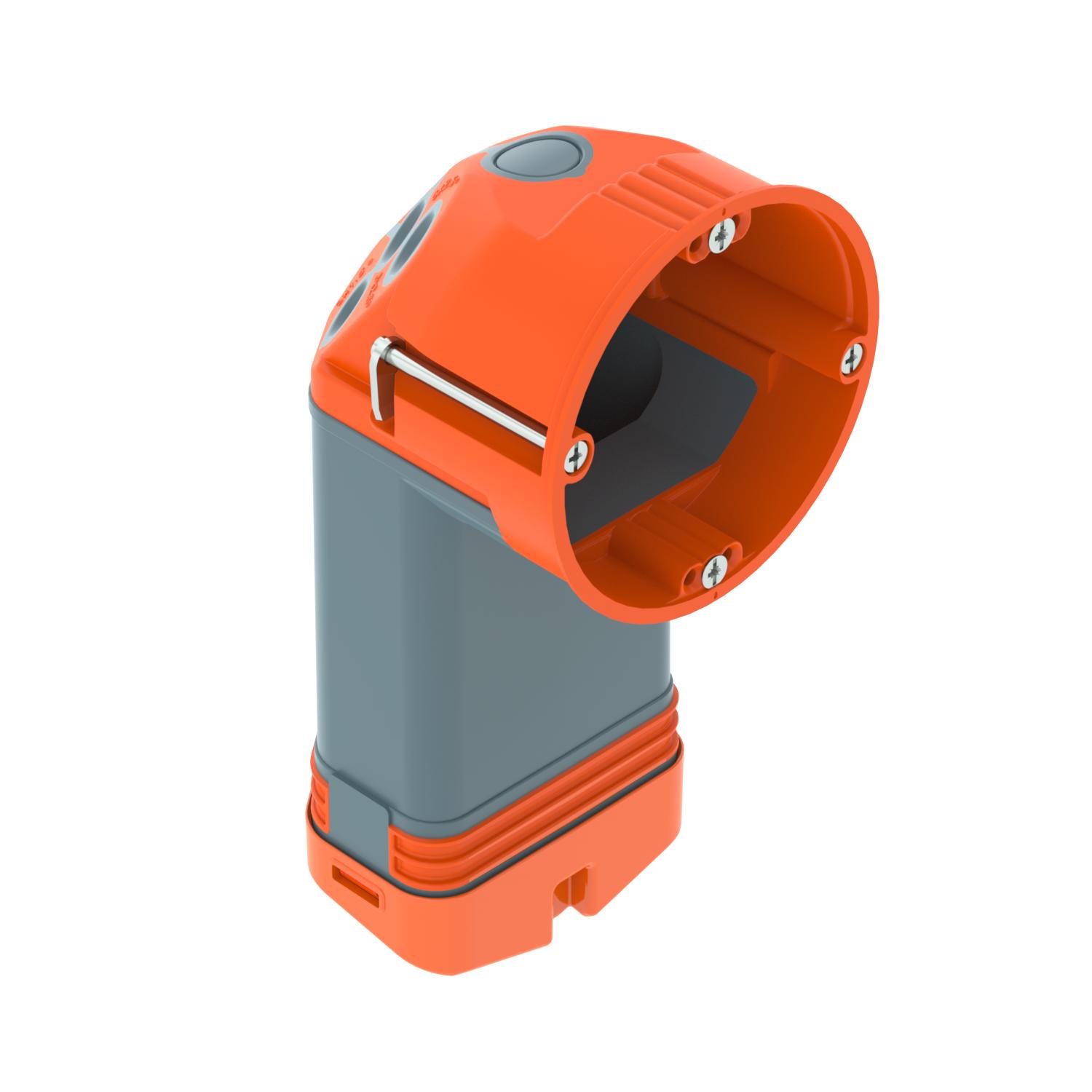

Product descriptionCavity wall electronic box with membrane entries for additional wiring space, for use in cavity walls with an installation depth of at least 75 mm and a plate thickness of 5-35 mm.
• 2 x 3 screw domes
• Device screws, clamping straps
• 2 entries for NYM cables 3 x 1.5 mm²
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• 2 combination pipe entries Ø 20 and 25 mm in the bottom area of the wiring space
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data

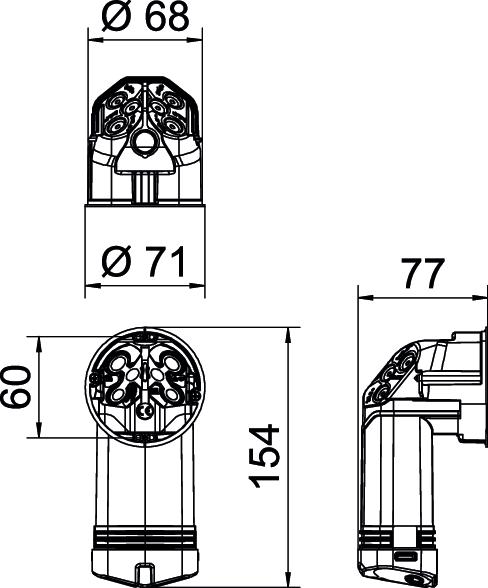

Airtight yes Cable entries 3 x 1.5 mm² 2 Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² 2 Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² 2 Colour orange / grey Combination entries Ø 20 / 25 mm 2 Cover fastening Screws , Cover screw clearance 61 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,294 kg CO₂e / 1 Piece Device fixing Screws , Diameter 68 mm Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C for pipe diameter 20/25 mm Halogen-free yes Height 77 mm Impact-resistant yes Length 154 mm Material Polypropylen / Thermoplastisches Elastomer Milling hole diameter 68 mm No. of entries 8 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 1 Protection rating IP30 Rated voltage 400 V Shape Miscellaneous Suitable for plate thickness, max. 35 mm Suitable for plate thickness, min. 5 mm Support Connector Type of housing penetration Insertion membrane Width 71 mm With bolts yes - All types
- Downloads
-
EU declaration of conformity HE 74-L / 2003828 , 0.13MB , pdfREACH Declaration of conformity HE 74-L / 2003828 , 0.12MB , pdfRoHS Declaration of conformity HE 74-L / 2003828 , 0.12MB , pdfMounting instructions Mounting instructions, HW cavity wall boxes , 8.26MB , pdf
