HW Cavity wall outlet box, double, airtight | 35 | 4

HW Cavity wall outlet box, double, airtight

Item no. 2003834 | EAN 4012197244842

Item no. / Types	2003834 / HG 45-WAD-LD

Milling hole diameter	35 mm

No. of entries	4

Product description

Product description

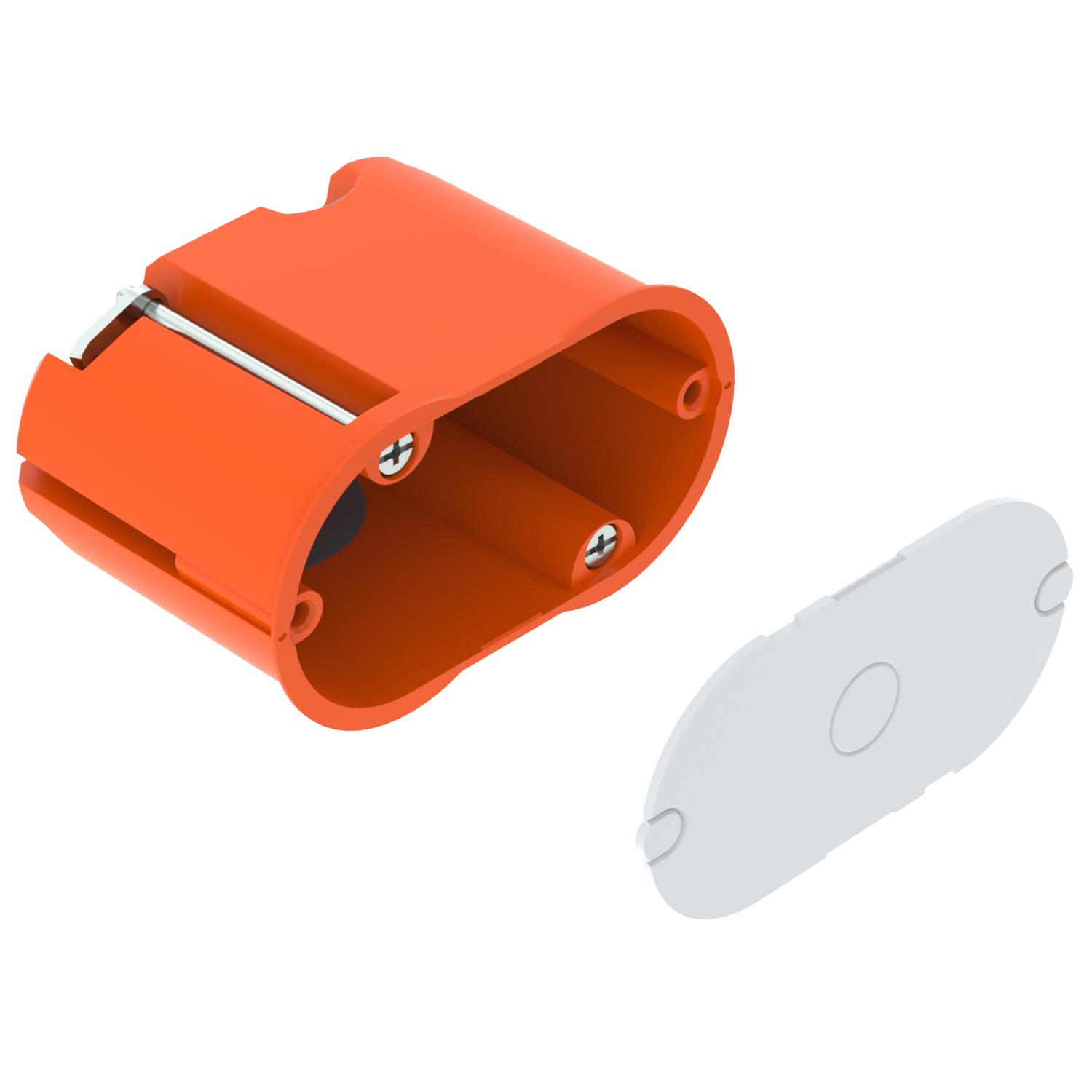

Airtight, double outlet box for cavity walls, for the mounting of wall luminaires or loudspeakers. With cover.

• 1 entry for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²

• 2 entries for NYM cables 3 x 1.5 mm²

• 1 combination pipe entry for Ø 20 and 25 mm
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	yes
Cable entries 3 x 1.5 mm²	2
Cable entries 3 x 2.5 mm² / 5 x 1.5 mm²	1
Colour	orange / grey
Combination entries Ø 20 / 25 mm	1
Cover	White
Cover fastening	Locking
CO₂ Footprint (GWP) Cradle-to-Gate	0,0802 kg CO₂e / 1 Piece
Device fixing	Screws ,

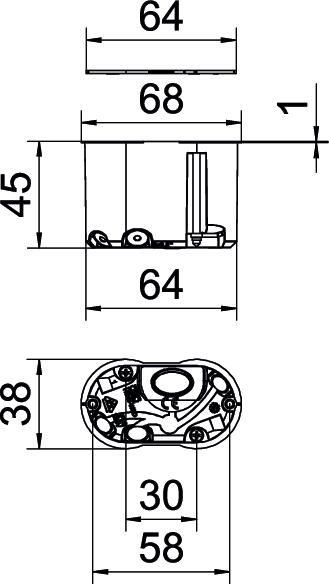

Dimension	68x38x45
Flame-resistant	Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	45 mm
Impact-resistant	yes

Length	68 mm
Material	Polypropylen / Thermoplastisches Elastomer
Milling hole diameter	35 mm
No. of entries	4
Nominal cross-section, max.	1,5 mm²
Nominal cross-section, min.	1,5 mm²
Protection rating	IP30
Rated voltage	400 V
Shape	Oval
Suitable for plate thickness, max.	40 mm
Suitable for plate thickness, min.	5 mm
Type of housing penetration	Insertion membrane
Type of insertion…	NYM cables and pipes
Width	38 mm
With bolts	no
