HW Compensation ring 20
Item no. 2003844 | EAN 4012196714698
- Product description
-

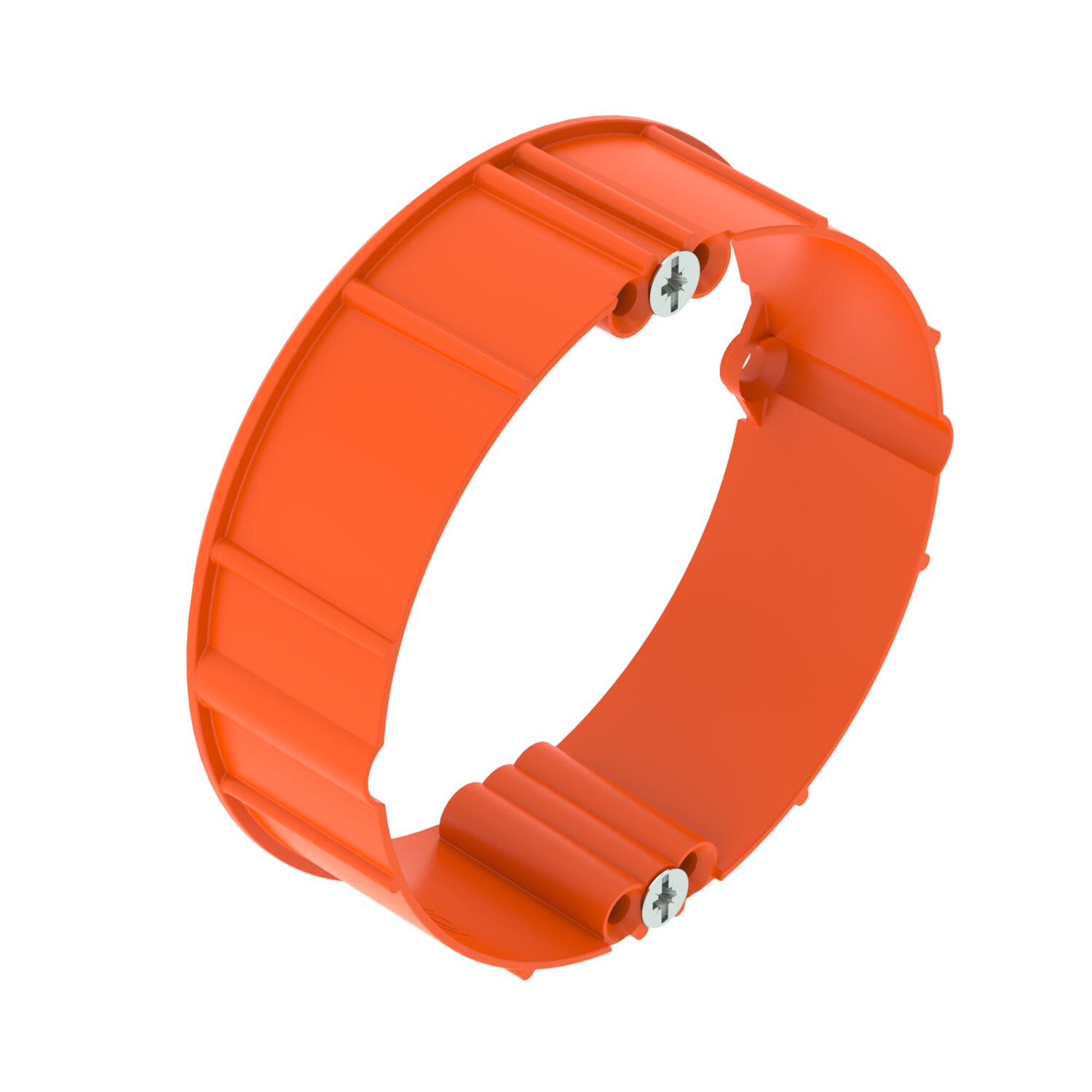

Product descriptionCompensation ring for cavity wall device box Ø 68 mm, to screw on.
-
- Technical data
-
Technical data

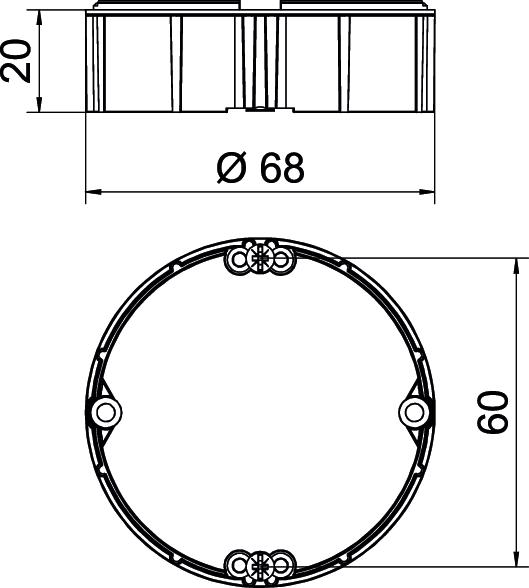

Accessory screw clearance 60 mm Colour Orange Diameter 68 mm Dimension Ø68mm, H20mm Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C Halogen-free yes Height 20 mm Impact-resistant yes Material Polypropylene With bolts yes - All types
- Downloads
-
Data sheet ZH 20-AR / 2003844 , 0.25MB , pdfMounting instructions Mounting instructions, HW cavity wall boxes , 8.26MB , pdf
