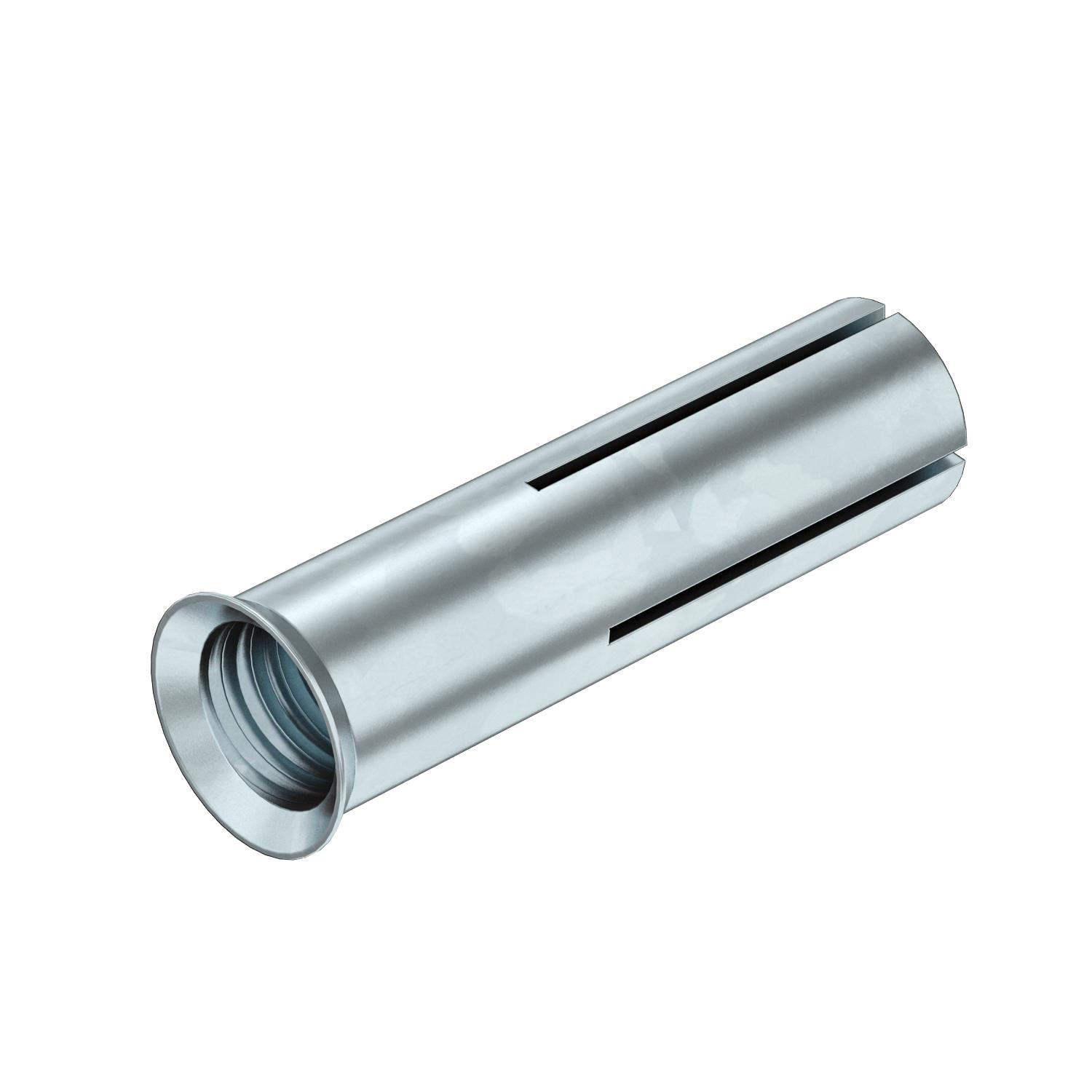

Impact tie, version with collar
Item no. 3492023 | EAN 4012196395934
- Product description
-
Product descriptionImpact tie for single fastening of non-load-bearing systems in non-cracked concrete as well as for multiple fastening in cracked and non-cracked concrete.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
-
- Technical data
-
Technical data

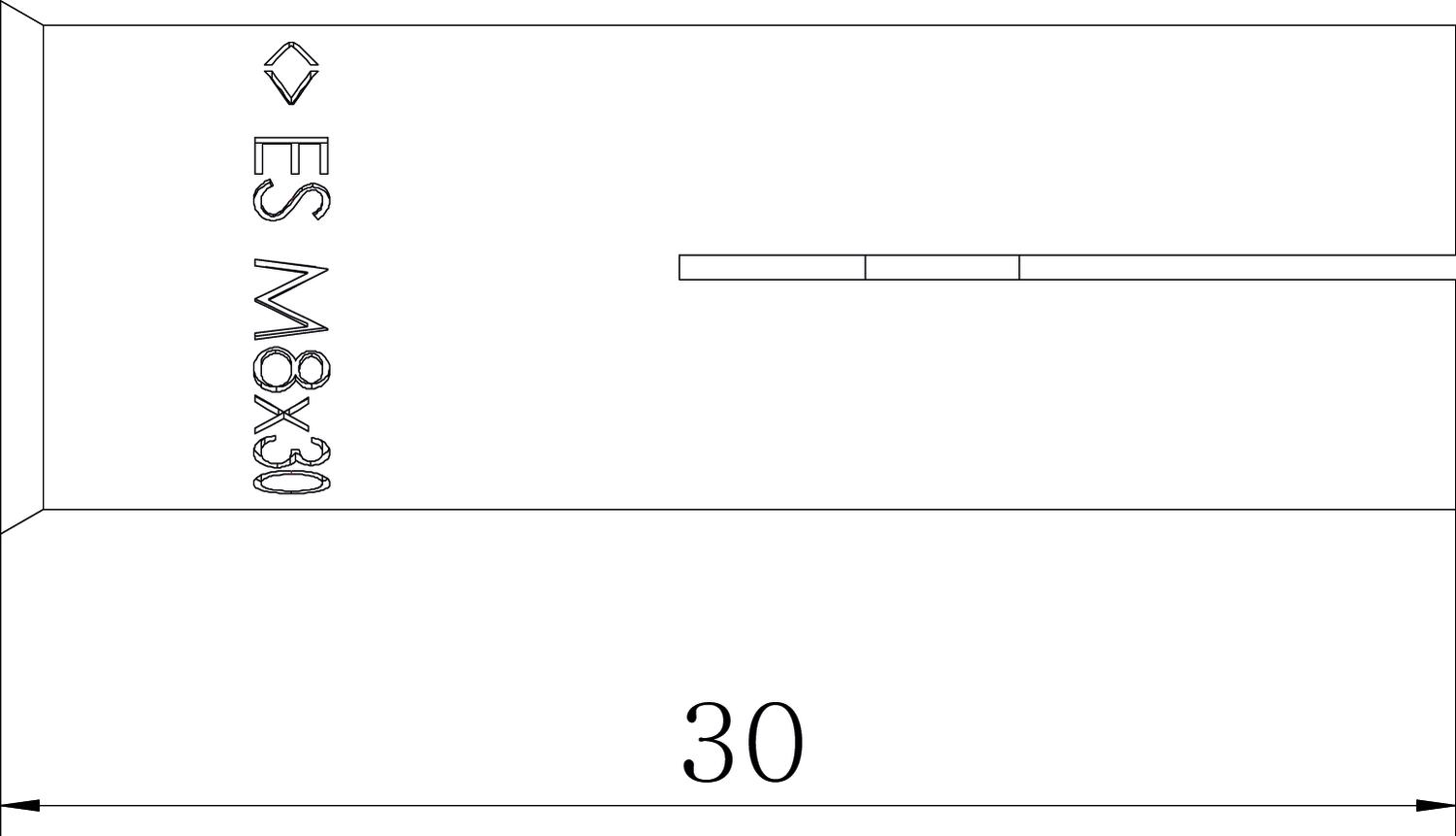

Approvals available yes Colour zinc Dimension 8x30 Dimension L 30 mm Drill hole depth 30 mm Drill hole diameter, min. 10 mm Fastening unit Miscellaneous Length 30 mm Material Steel Mounting type, anchor, tie Pre-mounting Permitted load range, tension zone 1,7 Screw-in depth, max. 13 mm Screw-in depth, min. 9 mm Self-drilling no Suitable for material Concrete Surface Electrogalvanized Thread M8 Thread metric 8 Version for Lightning strike - All types
- Downloads
-
Data sheet ES M 8x30 / 3492023 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity ES M 8x30 / 3492023 , 0.30MB , pdfApproval certificate European Technical Approval MKT multiple fastening impact tie E, ES , 4.00MB , pdfApproval certificate European Technical Approval, MKT single fastening impact tie E, ES , 2.59MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, hollow core anchor Easy , 0.98MB , pdfMounting instructions Mounting instructions, E impact tie , 0.98MB , pdf
