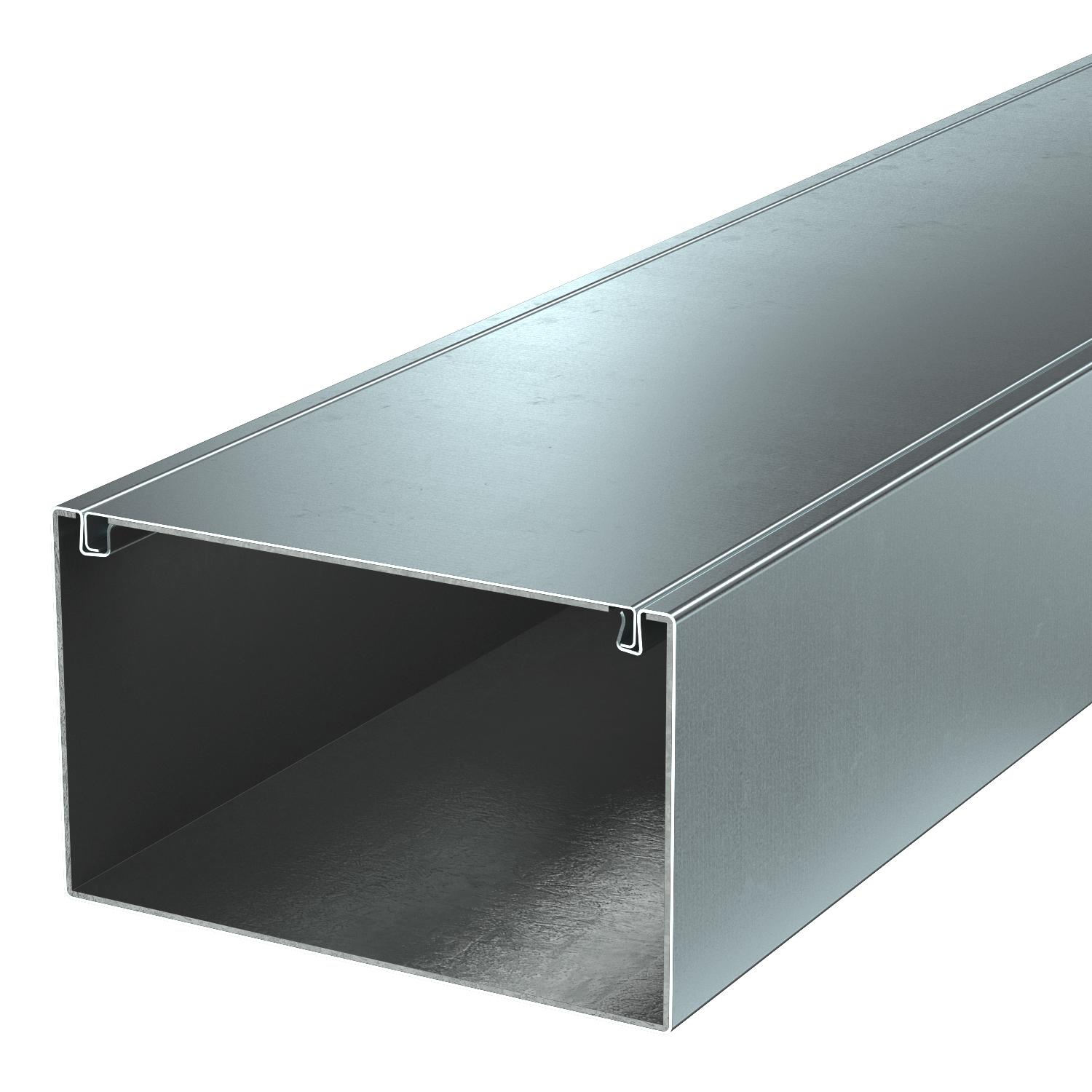

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, FS

Item no. 7218012 | EAN 4012197351236

7218012 / PLM D 1220 FS
2000 mm
200 mm
120 mm
zinc
Product description
Product description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour zinc
Cover fastening Miscellaneous
CO₂ Footprint (GWP) Cradle-to-Gate 3,066 kg CO₂e / 1 Meter

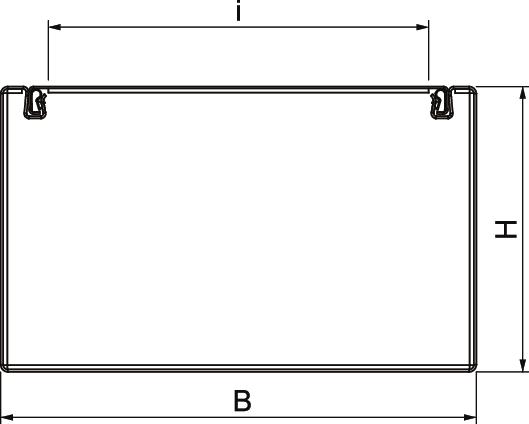

Dimension 120x200x2000
Dimension B 200 mm
Dimension H 120 mm
Dimension i 162 mm
Height 120 mm
Internal height 114 mm
Internal width 194 mm
Jacketing Steel
Length 2000 mm
Material Steel
Number of flammable sides 4
Partitions possible yes
Surface Strip galvanized
Usable cross-section 18500 mm²
Width 200 mm
With perforation yes
All types

All types

Types Length Dimension B Dimension H Colour Item no. Quantity SSU
PLM D 1220 FS 2000 mm 200 mm 120 mm zinc 7218012
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Joint connector set, duct height 120 mm Joint connector set, duct height 120 mm PLM SI 1220 7218032
1 piece

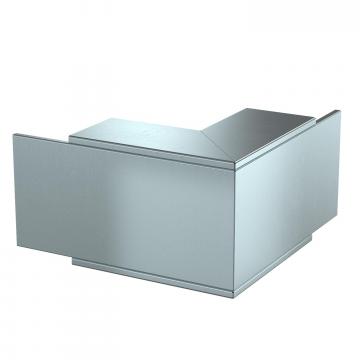

External corner, duct height 120 mm, FS External corner, duct height 120 mm, FS PLM EC 1220 FS 7218046
1 piece

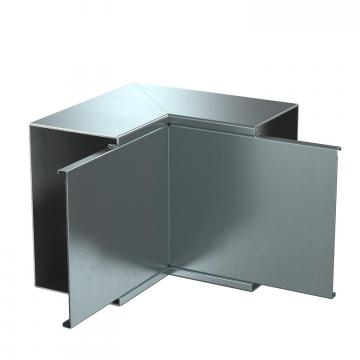

Internal corner, duct height 120 mm, FS Internal corner, duct height 120 mm, FS PLM IC 1220 FS 7218058
1 piece

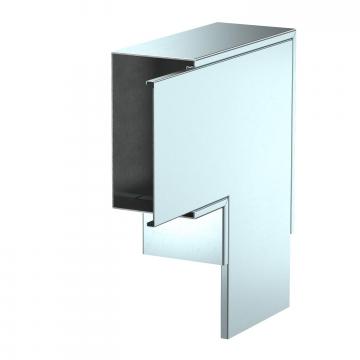

Flat angle, duct height 120 mm, FS Flat angle, duct height 120 mm, FS PLM FA 1220 FS 7218070
1 piece

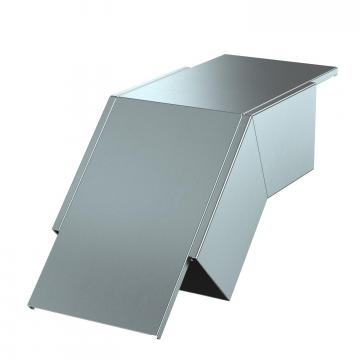

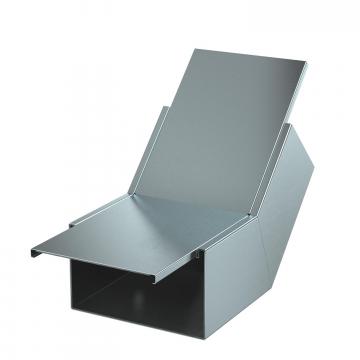

Vertical bend, rising, duct height 120 mm, FS Vertical bend, rising, duct height 120 mm, FS PLM BR 1220 FS 7218118
1 piece
Vertical bend, falling, duct height 120 mm, FS Vertical bend, falling, duct height 120 mm, FS PLM BF 1220 FS 7218110
1 piece

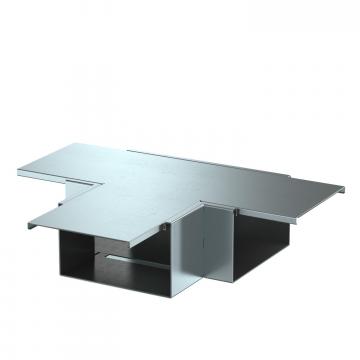

T branch piece, duct height 120 mm, FS T branch piece, duct height 120 mm, FS PLM TB 1220 FS 7218082
1 piece

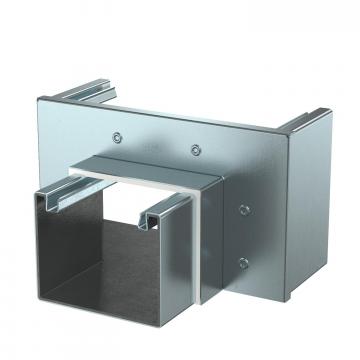

Reducer, straight, from 120 mm to 80 mm duct height, FS Reducer, straight, from 120 mm to 80 mm duct height, FS PLM RP 1220 FS 7218102
1 piece

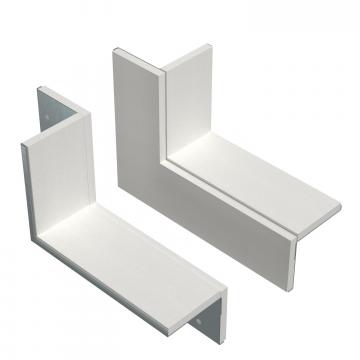

Wall connection set, double-sided, for corner mounting, duct height 120 mm, FS Wall connection set, double-sided, for corner mounting, duct height 120 mm, FS PLM CC 1220 FS 7218142
1 piece

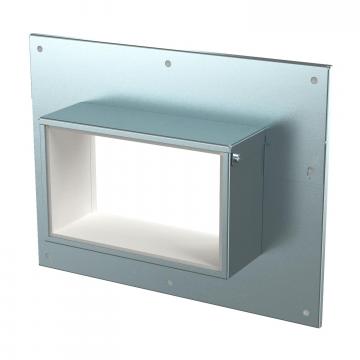

Wall connection collar, 3- and 4-sided, duct height 120 mm, FS Wall connection collar, 3- and 4-sided, duct height 120 mm, FS PLM WC 1220 FS 7218130
1 piece

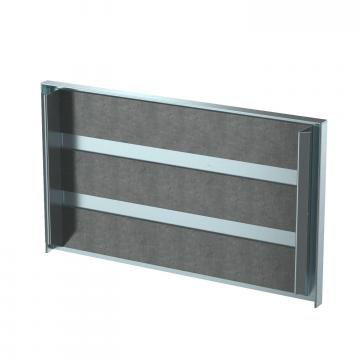

End piece, duct height 120 mm, FS End piece, duct height 120 mm, FS PLM EP 1220 FS 7218094
1 piece
Cover support, duct width 200 mm Cover support, duct width 200 mm PLM LS 200 7218036
1 piece
Foam seal, duct height 120 mm Foam seal, duct height 120 mm PLM CO 1220 7218162
1 piece
Pressure clip for wall mounting, duct height 120 mm Pressure clip for wall mounting, duct height 120 mm PLM WB 1220 FS 7218156
10 piece
Pressure clip for ceiling mounting, duct height 120 mm Pressure clip for ceiling mounting, duct height 120 mm PLM CB 1220 FS 7218150
10 piece

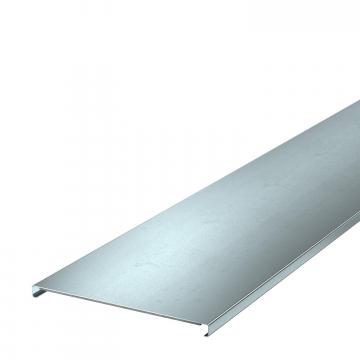

Installation duct cover, duct width 200 mm, FS Installation duct cover, duct width 200 mm, FS PLM LI 200 FS 7218024
2 m

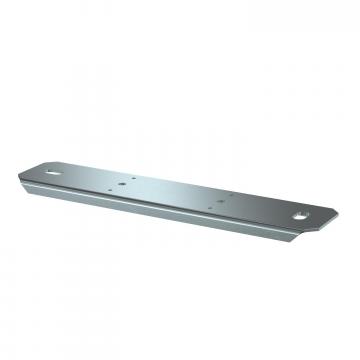

Support, duct width 200 mm, FS Support, duct width 200 mm, FS PLM SU 200 FS 7218168
